Weidmuller 8003901001 Rs Sd9s Unc 4.40 Lp2n

Product Description

The Weidmuller 8003901001 is an interface module with D-sub connectors according to IEC 60807 / DIN 41652, featuring a 9-pole plug and screw connection. It is designed for use with LL2N 5.08 mm connections on the field side. This module supports a rated voltage of 100 V and a rated current of 1.5 A per connection.

• Compliant with DIN EN 50178 standards.
• Operating temperature range of 0...55 °C.
• Suitable for both terrestrial and maritime applications.

Product Highlights

The Weidmuller interface module is ideal for industrial automation, offering reliable connectivity and performance in diverse environments.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 8003901001
• Country of Origin: CA

Technical Specifications

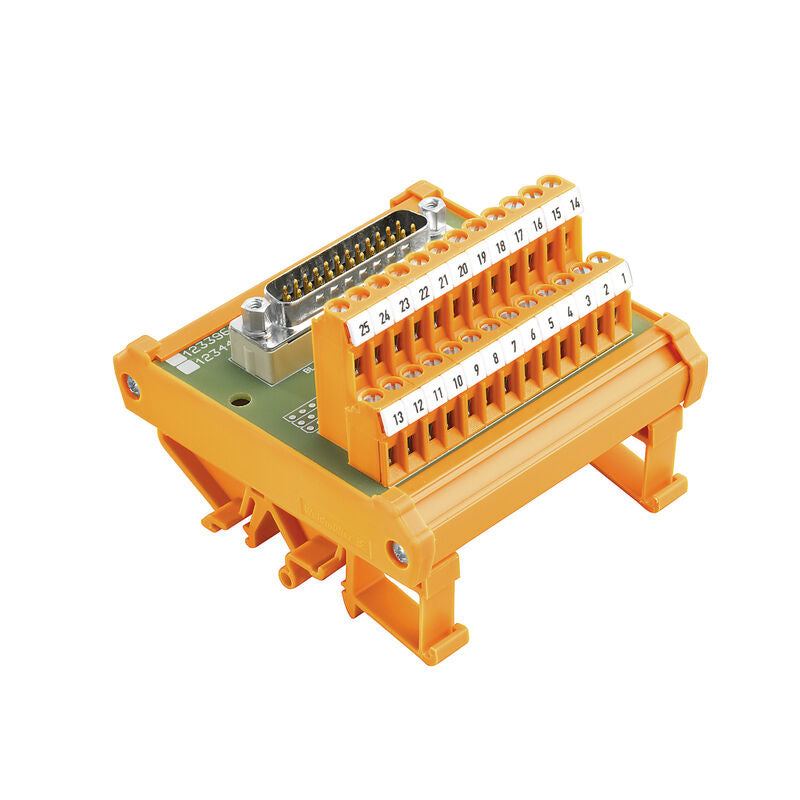

• Version: Interface, RSSD, D-sub connectors, acc. to IEC 60807 / DIN 41652, 9-pole plug, Screw connection
• Order No.: 8003901001
• Type: RS SD9S UNC 4.40 LP2N
• GTIN (EAN): 4032248047291
• Connection (field side): LL2N 5.08 mm
• Connection on control side: D-sub connectors, acc. to IEC 60807 / DIN 41652
• Earthing: No
• Number of poles (control side): 9-pole plug
• Rated Voltage: 100 V
• Rated Current per Connection: 1.5 A
• According to: DIN EN 50178
• Rated insulation voltage: 100 V
• Surge voltage category: II
• Pollution severity level: 2
• Pulse voltage test (1,2/50 cs): 0.8 kV
• Clamping range, max.: 6 mm
• Clamping range, min.: 0.5 mm
• Flexible with sleeve, max.: 2.5 mm
• Flexible with sleeve, min.: 0.5 mm
• Flexible, max. H05(07) V-K: 4 mm
• Flexible, min. H05(07) V-K: 0.5 mm
• Max. wire cross-section, AWG: AWG 12
• Min. wire cross-section, AWG: AWG 26
• Sleeve with plastic collar, max.: 2.5 mm
• Solid, max. H05(07) V-U: 6 mm
• Solid, min. H05(07) V-U: 0.5 mm
• Stripping length: 6 mm
• Tightening torque, max.: 0.6 Nm
• Tightening torque, min.: 0.5 Nm
• Type of connection: Screw connection
• Design: Plug
• Depth: 76 mm
• Depth (inches): 2.992 inch
• Height: 87 mm
• Height (inches): 3.425 inch
• Width: 45 mm
• Width (inches): 1.772 inch
• Storage temperature: -40...70 0C
• Operating temperature: 0...55 0C
• RoHS Compliance Status: Compliant with exemption
• RoHS Exemption (if applicable/known): 6aI, 6c
• REACH SVHC: Lead 7439-92-1
• SCIP: 7b5ffb72-271d-4c73-8b09-bd0aaee3697a
• Operating temperature UL, max.: 25 0C
• Operating temperature UL, min.: 0 0C
• Rated current I N: 1.5 A
• Rated current I max: 1.5 A
• Rated voltage U N: 100 V
• Brand: Weidmuller
• MPN: 8003901001
