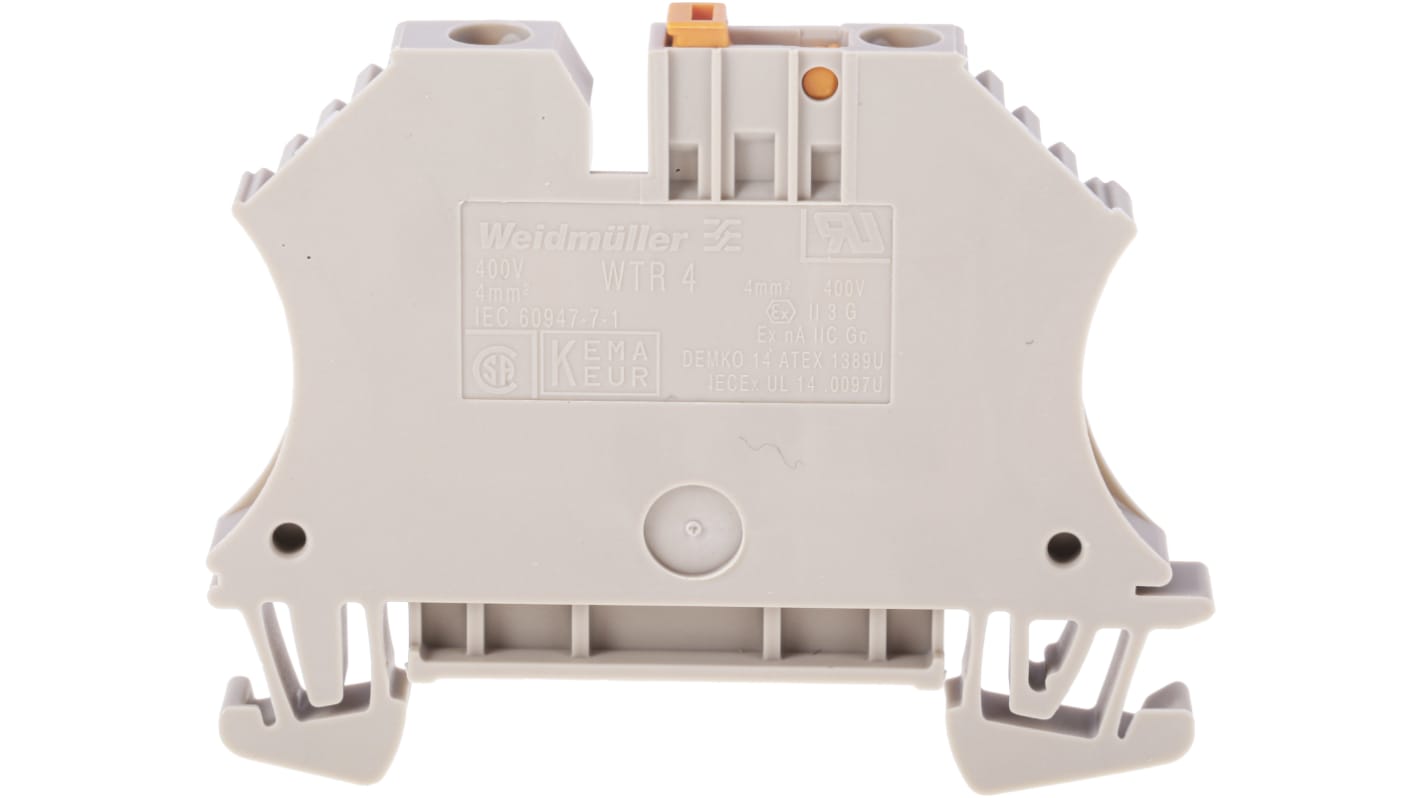

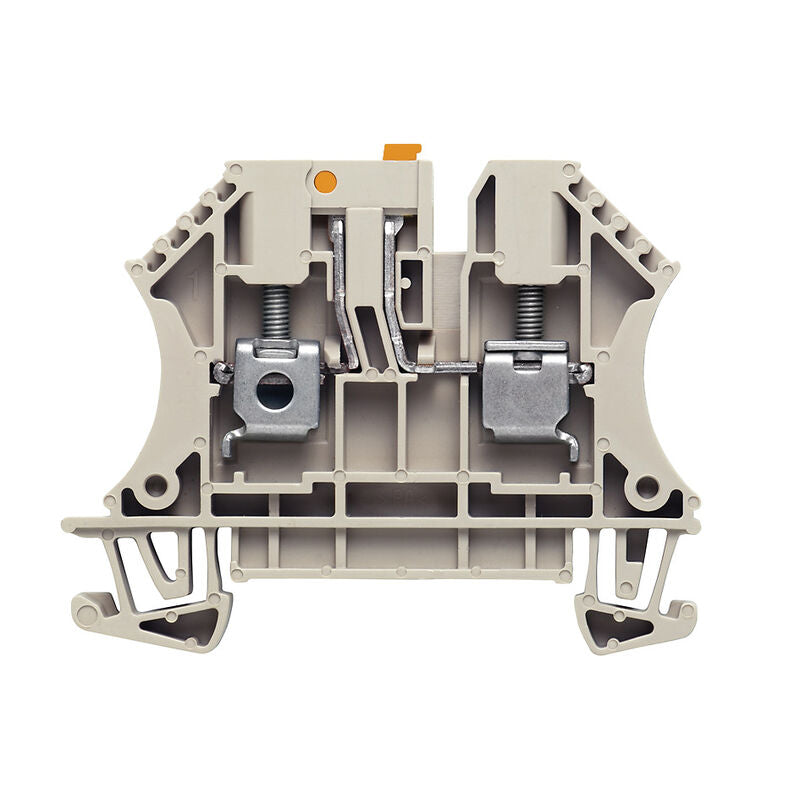

Weidmuller 7910180000 WTR 4 (6MM) 22-10AWG

Product Description

The Weidmuller 7910180000 WTR 4 is a test-disconnect terminal block with screw connections. This dark beige terminal block has 2 connections and 1 level. It is designed for a 4 mm ² cross-section, 32 A current, and 500 V voltage.

• Screw connection type
• Suitable for 22 to 10 AWG wire sizes
• Operating temperature range of -50°C to +120°C

Product Highlights

This disconnect terminal block is suitable for safely disconnecting circuits for current testing in industrial applications. It features screw terminals and tinned copper contacts for a reliable connection.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 7910180000
• Country of Origin: RO

Technical Specifications

• Family group: TERMINAL BLOCKS
• Manufacturer: Weidmuller, USA
• Version: Screw connection
• Order No.: 7910180000
• Type: WTR 4
• GTIN (EAN): 4008190576882
• Basic material: Wemid
• Colour: dark beige
• UL 94 flammability rating: V-0
• Spacer: for plug-in cross-connector
• End cover plate required: Yes
• Number of potentials: 1
• Number of levels: 1
• Number of clamping points per level: 2
• Number of potentials per tier: 1
• Levels cross-connected internally: No
• PE connection: No
• Mounting rail: TS 35
• N-function: No
• PE function: No
• PEN function: No
• Explosion-tested version: No
• Number of similar terminals: 1
• Open sides: right
• Type of mounting: Snap-on
• Connection type, additional connection: Screw connection
• Blade size: 0.6 x 3.5 mm
• Clamping range, max.: 6 mm ²
• Clamping range, min.: 0.22 mm ²
• Clamping screw: M 3
• Connection cross-section, finely stranded, min.: 0.22 mm ²
• Connection cross-section, stranded, max.: 6 mm ²
• Connection cross-section, stranded, min.: 0.22 mm ²
• Connection direction: on side
• Gauge to IEC 60947-1: A4
• Number of connections: 2
• Stripping length: 13 mm
• Tightening torque, max.: 0.6 Nm
• Tightening torque, min.: 0.5 Nm
• Torque level with DMS electric screwdriver: 2
• Type of connection: Screw connection
• Type of connection 2: Screw connection
• Wire connection cross section AWG, max.: AWG 10
• Wire connection cross section AWG, min.: AWG 22
• Wire connection cross section, finely stranded, max.: 4 mm ²
• Wire connection cross section, finely stranded, min.: 0.22 mm ²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, max.: 4 mm ²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.22 mm ²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/4, max.: 2.5 mm ²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.22 mm ²
• Wire connection cross section, solid core, max.: 6 mm ²
• Wire connection cross section, solid core, min.: 0.22 mm ²
• Rated cross-section: 4 mm ²
• Rated voltage: 500 V
• Rated DC voltage: 500 V
• Nominal current: 32 A
• Current at maximum wires: 32 A
• Volume resistance according to IEC 60947-7-x: 1 m
• Rated impulse withstand voltage: 6 kV
• Power loss in accordance with IEC 60947-7-x: 1.02 W
• Pollution severity: 3
• Conductor size Factory wiring max. (UR): 10 AWG
• Conductor size Factory wiring min. (UR): 22 AWG
• Conductor size Field wiring max. (UR): 10 AWG
• Conductor size Field wiring min. (UR): 22 AWG
• Current size D (UR): 10 A
• Voltage size D (UR): 300 V
• ETIM 8.0: EC000902
• ETIM 9.0: EC000902
• ETIM 10.0: EC000902
• ECLASS 14.0: 27-25-01-09
• ECLASS 15.0: 27-25-01-09
• Mfr. #: 7910180000
• Brand: Weidmuller
• Product Type: Disconnect Terminal Block
• Minimum Wire Size AWG: 22AWG
• Cable CSA: 4mm ²
• Maximum Wire Size AWG: 10AWG
• Terminal Block Current: 32A
• Termination Type: Screw
• Minimum Operating Temperature: -50 C
• Hazardous Area Certification: No
• Maximum Operating Temperature: 120 C
• Standards/Approvals: CE, RoHS
• Catalog Number: 7910180000
• Connection: Back and Side Wired Screw Terminals
• Country of Origin: RO
• Temperature Rating (Degrees F): -50 to 120 deg C
• Terminal Size: 0.6 x 3.5 mm
• Torque Rating: 0.5 to 0.6 N-m
• Material: Wemid
• Manufacturer Name: Weidmuller
• UNSPSC: 39121410
• Voltage: 400V
• Series: WTR
