Weidmuller 2674540000 S3C 2.5 Terminal Block 24A 800V

Product Description

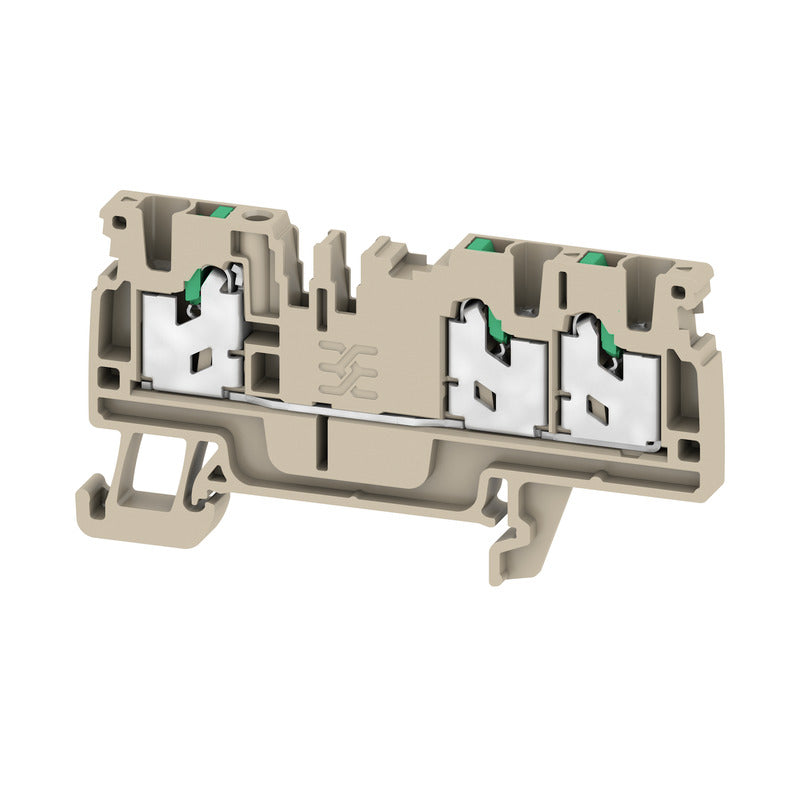

The WEIDMULLER 2674540000 is the S3C 2.5 Klippon S-Series SNAP IN terminal block, a 3-connection feed-through terminal block designed for control cabinet wiring in industrial and commercial electrical applications. Rated at 24 amps and 800 volts, it accepts wire sizes from 20 to 14 AWG. The SNAP IN connection technology eliminates the need for screwdriver termination, reducing cable preparation time and accelerating panel wiring. The dark beige housing is standard for this series. Licensed electricians and panel builders install this component during control cabinet assembly and retrofit work.

This terminal block is used in commercial and industrial control panel builds, automation enclosures, and machine wiring applications. The open side orientation is RIGHT, which determines how the block integrates into a terminal strip layout. It is suited for use in distribution panels, PLC enclosures, and any application requiring compact, reliable multi-conductor termination at elevated voltage and current ratings. Panel builders and industrial electricians working on UL-listed control assemblies will find the SNAP IN termination method particularly efficient for high-density wiring runs.

Key Features

• SNAP IN connection technology — no screwdriver required for termination, reducing wiring time
• Rated 24 amps and 800 volts for demanding control cabinet environments
• Accepts 20 to 14 AWG wire, covering common control and power wiring sizes
• 3-connection configuration with open side oriented RIGHT
• Dark beige housing for series identification and panel organization
• Compact S-Series form factor designed for high-density terminal strip mounting

Compatibility

Designed as an OEM-style component for use within the Klippon S-Series terminal block system. Specific cross-series or cross-brand compatibility was not provided in the product data.

Installation Notes

Installation is performed by licensed electricians in accordance with NEC requirements for control wiring and panel assembly. De-energize the control cabinet and verify zero voltage with a meter before inserting or removing any terminal block from the rail. SNAP IN terminals require proper conductor strip length for full engagement — follow the manufacturer strip length guidance for the wire gauge used. Do not exceed the rated 24A or 800V limits for the application circuit.

Technical Specifications

• Current Rating: 24 amps
• Voltage Rating: 800 volts
• Wire Range: 20 to 14 AWG
• Number of Connections: 3
• Open Side: Right
• Color: Dark Beige
• Connection Type: SNAP IN
• Weight: 0.03 pounds

Standard Information

• Brand: WEIDMULLER
• Manufacturer Part Number: 2674540000
