Description

Product Description

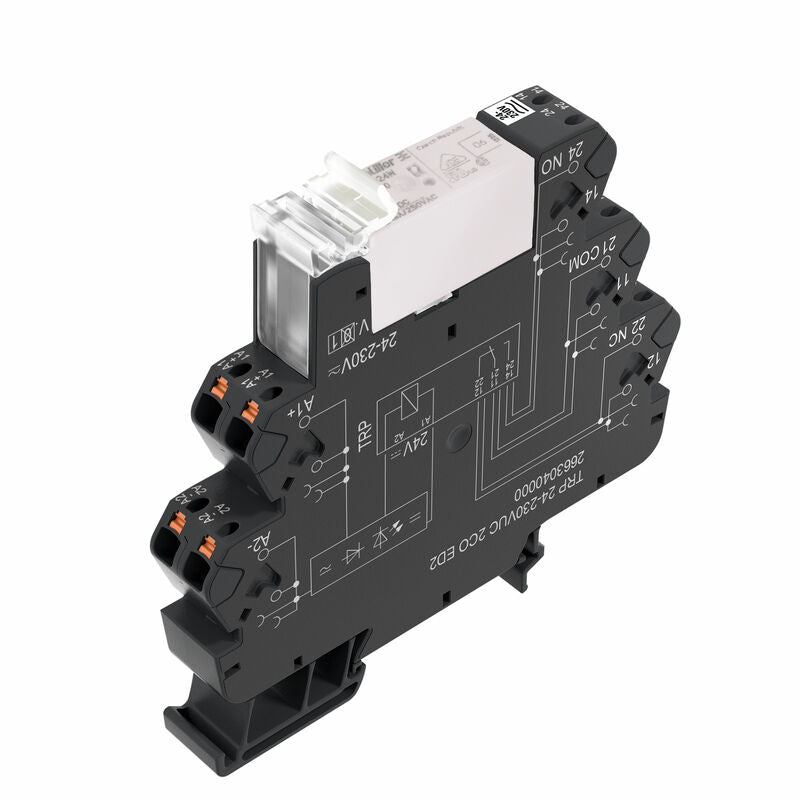

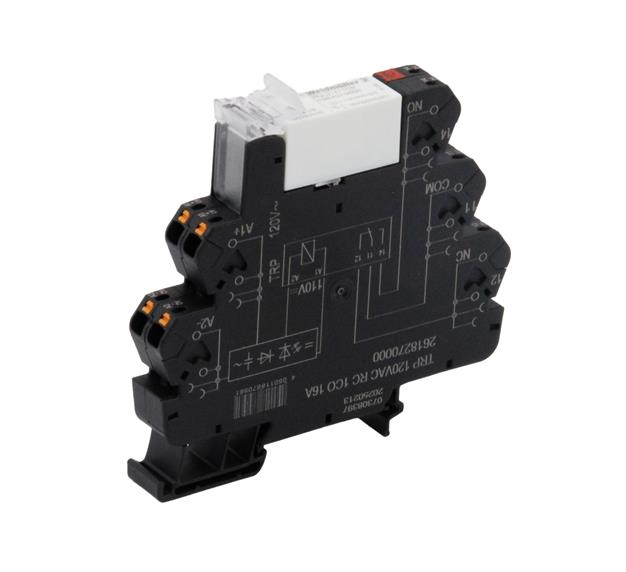

The Weidmuller 2618270000 is a general purpose relay SPDT (1 Form C) with a 120VAC coil designed for DIN rail mounting. This relay features a lighted indicator, RC circuit, and includes a socket. It is suitable for various applications requiring reliable switching. The relay has a contact rating of 16 A and an operating temperature range of -40°C to 60°C.

  • Lighted Indicator
  • RC Circuit
  • Socket Included

Product Highlights

General purpose relay with 16A contact rating, 120VAC coil, and DIN rail mounting.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 2618270000
  • Country of Origin: CN
Technical Specifications
Category
Relays
Power Relays, Over 2 Amps
Power Relays, Over 2 Amps
Features
Lighted Indicator, RC Circuit, Socket Included
Mfr
Weidmuller
Termination Style
Spring Terminal
Series
TERMSERIES
Must Operate Voltage
65 VAC
Must Release Voltage
23 VAC
Part Status
Active
Operate Time
11 ms
Mounting Type
DIN Rail
Release Time
7 ms
Coil Voltage
120VAC
Operating Temperature
-40\u00b0C ~ 60\u00b0C
Contact Form
1CO 1 Form C SPDT
Contact Material
Silver Nickel (AgNi)
Contact Rating (Current)
16 A
Approval Agency
CE, cULus, EAC
Switching Voltage
250VAC, 250VDC - Max
Relay Type
General Purpose
Coil Current
5.5 mA
Coil Resistance
21.8 kOhms
Coil Type
Non Latching
Base Product Number
261827
Version
TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, Rated control voltage: 120 V AC \b10 %, Continuous current: 16 A, PUSH IN, Test button available: No
Order No.
2618270000
Type
TRP 120VAC RC 1CO 16A
Depth
87.8 mm
Depth (inches)
3.457 inch
Height
89.4 mm
Height (inches)
3.52 inch
Width
12.8 mm
Width (inches)
0.504 inch
Net weight
58 g
Storage temperature
-40 \u00b0C...85 \u00b0C
Ambient temperature
-40 \u00b0C\b60 \u00b0C
Humidity
5-95% relative humidity, Tu = 40\u00b0C, without condensation
RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
9e2cbc49-76d9-4611-b8ec-5b4f549a0aa9
Ambient temperature (operational), max.
60 \u00b0C
Output current derating (ohmic)
12 A @ 60 \u00b0C 16 A @ 55 \u00b0C
Connection cross-section AWG, min.
AWG 26
Connection cross-section AWG, max.
AWG 14
Type of conductor
rigid copper conductor flexible copper conductor
Pollution severity level
2
Rated control voltage
120 V AC \b10 %
Rated current AC
5.5 mA
Power rating
4000 VA Resistive, 384 W at 24 VDC
Status indicator
Green LED
Protective circuit
Rectifier RC element RC filter 94 \b / 100 nF
Coil voltage of the replacement relay deviating from the rated control voltage
Yes
Coil voltage of the replacement relay
110 V DC
Rated switching voltage
250 V AC
Continuous current
16 A
Max. switching frequency at rated load
0.1 Hz
Max. switching voltage, AC
250 V
Max. switching voltage, DC
250 V
Min. switching power
10 mA @ 10 V 100 mA @ 5 V
Inrush current
30 A / 4 s
AC switching capacity (resistive), max.
4000 VA
DC switching capacity (resistive), max.
384 W @ 24 V
Switch-on delay
\b 11 ms
Switch-off delay
\b 7 ms
Contact type
1 CO contact (AgNi)
Mechanical service life
30 x 10 6 switching cycles
Operating altitude
\b 2000 m above sea level
Mounting rail
TS 35
Test button available
No
Mechanical switch position indicator
No
Colour
black
UL94 flammability rating component
Component: Housing UL94 flammability rating: V-0 Component: Retaining clip UL94 flammability rating: V-0 Component: Pusher UL94 flammability rating: V-0
Rated voltage
300 V
Pollution severity
2
Surge voltage category
III
Clearance and creepage distances for control side - load side
\b 6 mm
Dielectric strength for control side - load side
1.2 kV eff / 5 s
Type of isolation at input and output
reinforced insulation
Dielectric strength of open contact
1 kV eff / 1 min
Dielectric strength to mounting rail
4 kV eff / 1 Min.
Impulse withstand voltage
6 kV (1.2/50 \b s)
Protection degree
IP20
Certificate No. (DNV)
TAA00001E5
Certificate no. (cULus)
E141197
Wire connection method
PUSH IN
Stripping length, rated connection
9 mm
Clamping range, rated connection
1.5 mm\b
Clamping range, min.
0.14 mm\b
Clamping range, max.
2.5 mm\b
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Wire cross-section, solid, min.
0.14 mm\b
Wire cross-section, solid, max.
1.5 mm\b
Wire cross-section, solid, min. (AWG)
AWG 26
Wire cross-section, solid, max. (AWG)
AWG 16
Wire connection cross section, finely stranded, min.
0.14 mm\b
Wire connection cross section, finely stranded, max.
2.5 mm\b
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, finely stranded, max. (AWG)
AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.14 mm\b
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1.5 mm\b
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0.14 mm\b
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1.5 mm\b
Blade size
0.4 x 2.0 mm
ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
Relay Throws
Double Throw
Relay Mounting
Din Rail
Coil Voltage Rating
120 VAC
Relay Connection Type
Push-In Connection
Relay Contact Material
Agni
Relay Poles
Single Pole
Relay Input Amperage
16 Amp
Manufacturer
Weidmuller
Component
Electromechanical Relay
Relay Indication
Green LED
Amperage Rating
16 A
Dimensions
12.8 mm W x 87.8 mm D x 89.4 mm H
Display Type
Green LED
Enclosure Type
IP20
Terminal Type
Push-In
Supplier
Weidmuller
Part No
2618270000
Alias/AKA
2618270000
Unit of Measure
Per Each
RoHS
Yes
HTS
85364900
COO
CN
ECCN
EAR99
Supplier Standard Pack
10
Temperature Rating
-40 to 60 deg C
