Weidmuller 2603740000 wpd 113 1x185+1x150/8x35 gy

Product Description

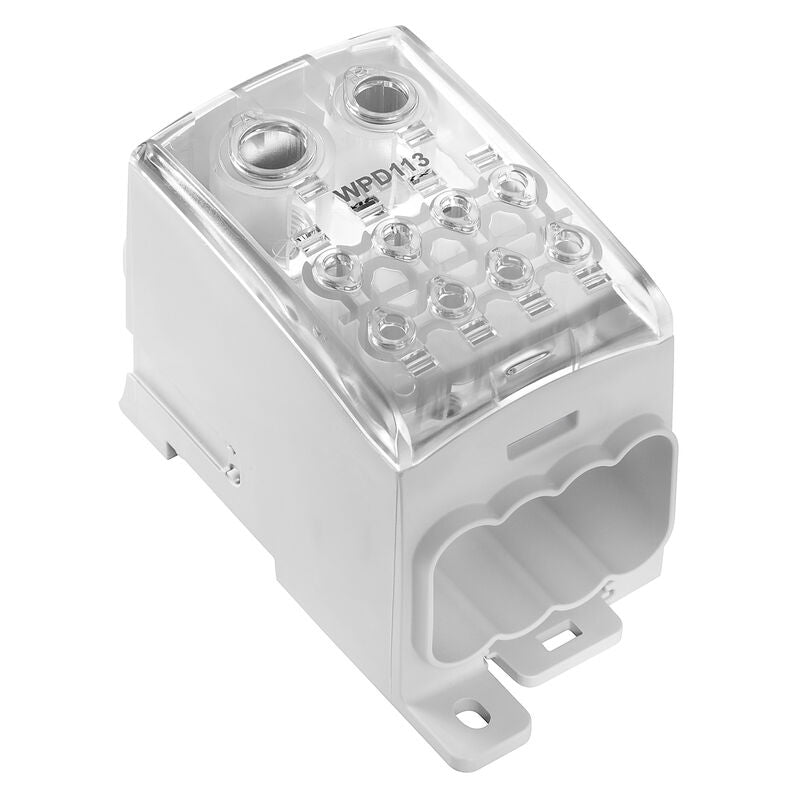

The Weidmuller 2603740000 WPD 113 1X185+1X150/8X35 GY is a potential distributor terminal with screw connections. It features 10 connections and 1 level. Designed for terminal rail or mounting plate installation.

• Screw connection
• Number of connections: 10
• Rated voltage: 1,000 V

Product Highlights

Potential distributor terminal with screw connection, light grey color, and multiple connections.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 2603740000

Technical Specifications

• Version: Screw connection
• Order No.: 2603740000
• Type: WPD 113 1X185+1X150/8X35 GY
• GTIN (EAN): 4050118681420

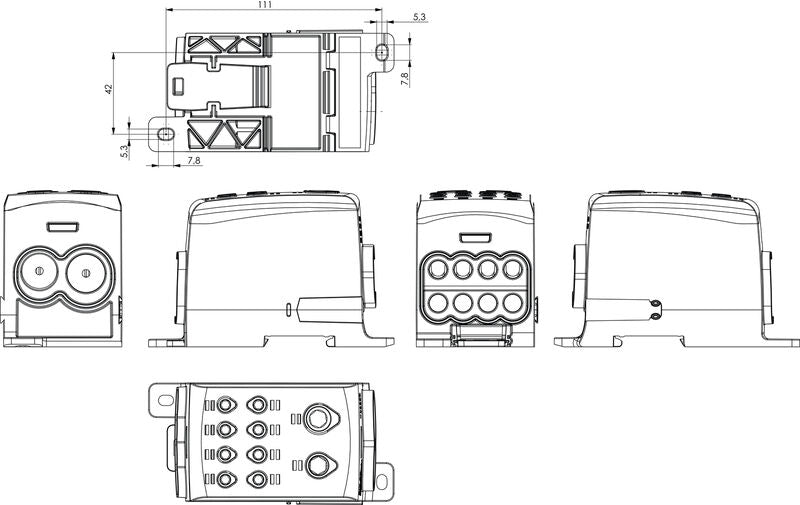

• Depth: 80.3 mm
• Depth (inches): 3.161 inch
• Height: 126.3 mm
• Height (inches): 4.972 inch
• Width: 62.6 mm
• Width (inches): 2.465 inch
• Net weight: 740 g
• Storage temperature: -25 °C...55 °C
• Ambient temperature: -50 °C…85 °C
• Continuous operating temp., min.: -50 °C
• Continuous operating temp., max.: 130 °C
• RoHS Compliance Status: Compliant with exemption
• RoHS Exemption (if applicable/known): 6c
• REACH SVHC: Lead 7439-92-1
• SCIP: 9b5f0838-1f0b-4c14-9fc7-3f5e6ee75be2
• Basic material: Wemid
• Colour: Light Grey
• UL 94 flammability rating: V-0
• End cover plate required: No
• Number of potentials: 1
• Number of levels: 1
• Number of clamping points per level: 10
• Levels cross-connected internally: No
• Mounting rail: TS 35
• Mounting plate: N-function
• PE function: No
• PEN function: No
• Explosion-tested version: Yes
• Installation advice: Terminal rail / mounting plate
• Open sides: closed
• Snap-on: Yes
• Type of mounting: Snap-on
• Direct mounting: Connection type, additional connection

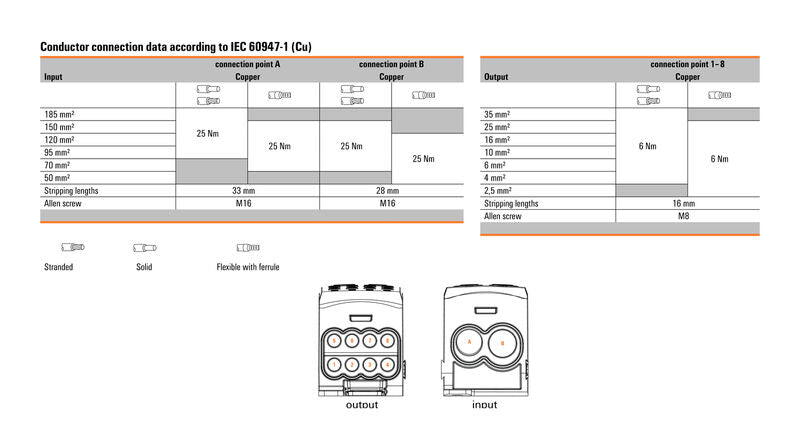

• Clamping range, max.: 185 mm²
• Clamping range, min.: 1.5 mm²
• Connection cross-section, stranded, max.: 185 mm²
• Connection cross-section, stranded, min.: 1.5 mm²
• Connection direction: on side
• Number of connections: 10
• Type of connection: Screw connection
• Type of connection 2: Screw connection
• Wire connection cross section AWG, max.: kcmil 300
• Wire connection cross section AWG, min.: AWG 12
• Wire connection cross section, finely stranded, max.: 0 mm²
• Wire connection cross section, finely stranded, min.: 1.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 150 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 1.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 1.5 mm²
• Wire connection cross-section, solid core, max.: 185 mm²
• Wire connection cross-section, solid core, min.: 1.5 mm²
• Number of poles: 1
• Standards: IEC 60947-7-1
• Rated cross-section: 185 mm²
• Rated voltage: 1,000 V
• Rated AC voltage: 1,000 V
• Rated DC voltage: 1,500 V
• Nominal current: 353 A
• Current at maximum wires: 353 A
• Rated impulse withstand voltage: 8 kV
• Pollution severity: 3
• Surge voltage category: III
• Certificate No. (cURus): E60693
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• ETIM 10.0: EC000897
• ECLASS 14.0: 27-25-01-19
• ECLASS 15.0: 27-25-01-19
• Manufacturer: WEIDMULLER
• Manufacturer Part No: 2603740000
• Newark Part No.: 28AK5220
• Product Range: W Series
• Rated Current: 353A
• Line Side Connections Per Pole: 2
• Line Side Connection Method: Screw
• Line Side Wire Size Max: None
• Load Side Connections Per Pole: 8
• Load Side Connection Method: Screw
• Load Side Wire Size Max: None
• SVHC: Lead
• Brand: Weidmuller
• Part Number #: 2603740000
• SKU #: 2406813
• UNSPSC: 39121410
• UPC: 04050118681420
• Environmental Classification: REACH SVHC No
• RoHS: Compliant
