Weidmuller 2584790000 Cabtite BSE SML BK

Product Description

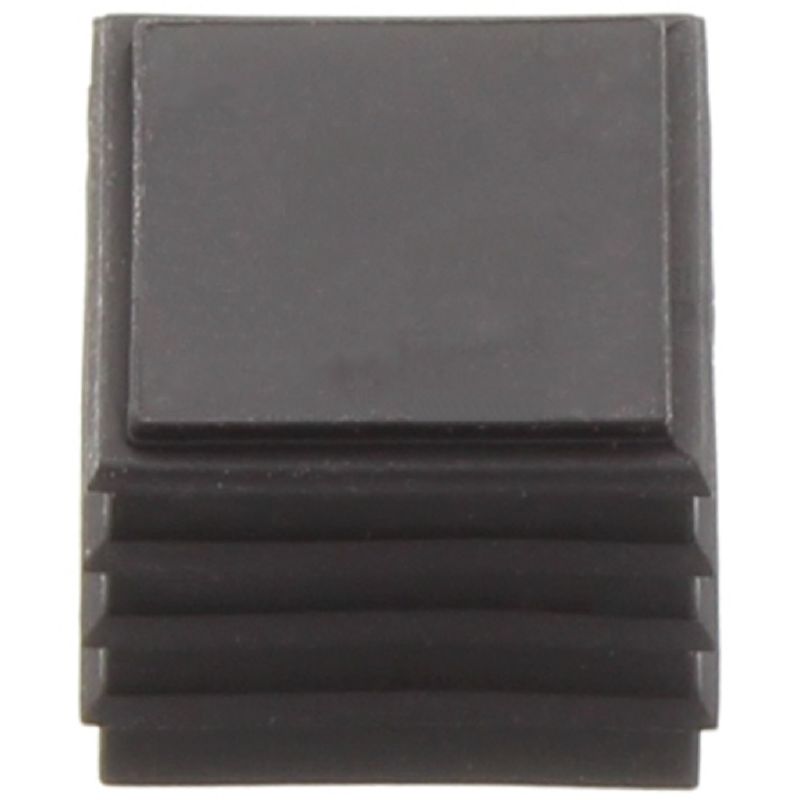

The Weidmuller 2584790000 Cabtite BSE SML BK is a sealing element designed for cable entry systems. Constructed from TPE, it provides a reliable seal and strain relief. It is halogen and silicone-free and UV stabilized. This grommet combined with frame inlay achieves an IP66 degree of protection.

• Made of TPE
• Halogen and silicone-free
• Operating temperature: -40 °C...120 °C

Product Highlights

The Weidmuller Cabtite BSE SML BK ensures a secure and protected cable entry with its robust design and IP66 rating.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 2584790000

Technical Specifications

• Version: Sealing element, Cabtite (cable entry system), TPE, Deep black, Height: 20.3 mm, Width: 20.3 mm, Depth: 17.7 mm, -40 °C...120 °C, IP66
• Order No.: 2584790000
• Type: CABTITE BSE SML BK
• GTIN (EAN): 4050118616057
• Basic material: TPE
• Halogen: No
• Protection degree: IP66
• Sealing element: 1 small sealing element
• Silicone: No
• UL 94 flammability rating: HB
• ETIM 8.0: EC000879
• ETIM 9.0: EC000879
• ETIM 10.0: EC000879
• ECLASS 14.0: 27-14-08-07
• ECLASS 15.0: 27-14-08-07
• Depth: 17.7 mm
• Depth (inches): 0.697 inch
• Height: 20.3 mm
• Height (inches): 0.799 inch
• Width: 20.3 mm
• Width (inches): 0.799 inch
• Operating temperature: -40 °C...120 °C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Category: Cables, Wires - Management
• Sub Category: Bushings, Grommets
• For Use With/Related Products: Cable, Wires
• Manufacturer: Weidmüller
• Panel Cutout Dimensions: Square - 0.815" (20.70mm)
• Series: Cabtite SE
• Material: Thermoplastic Elastomer (TPE)
• Packaging: Bag
• Part Status: Active
• Material Flammability Rating: UL94 HB
• Bushing, Grommet Type: Frame Grommet, Split
• Base Product Number: CABTITE BSE
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): 1 (Unlimited)
• HTSUS: 3926.90.4590
• REACH Status: REACH Unaffected
• Grommet Type: Closed / Holeplug
• Cable Diameter Max: -
• Grommet Material: TPE (Thermoplastic Elastomer)
• Mounting Hole Dia: -
• Panel Thickness Max: -
• Grommet Colour: Black
• Product Range: Cabtite BSE, SE Series
• SVHC: No SVHC (23-Jan-2024)
• Cable Diameter Min: -
• Brand: WEIDMULLER
• MPN: 2584790000
• UPC: Does not apply
• Component: Cabtite (Cable Entry System)
• Std. Package Qty.: 10
• Lead Time: 112
