Weidmuller Weidmuller 2503090000 wpd 131 1x95/1x95 gy
Weidmuller Weidmuller 2503090000 wpd 131 1x95/1x95 gy
Weidmuller Weidmuller 2503090000 wpd 131 1x95/1x95 gy
Weidmuller Weidmuller 2503090000 wpd 131 1x95/1x95 gy

Weidmuller 2503090000 wpd 131 1x95/1x95 gy

Brand: Weidmuller
SKU: 2503090000
Availability: Out Of Stock
$20.36
$20.36
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

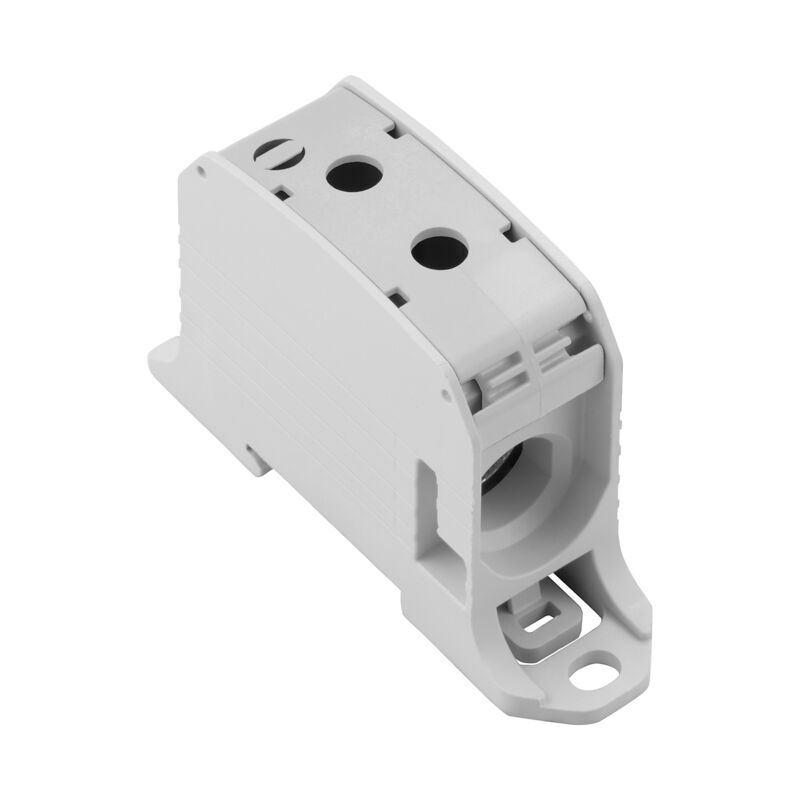

The Weidmuller 2503090000 WPD 131 1X95/1X95 GY is a potential distributor terminal with screw connections. It is designed for potential distribution with high contact density. This light grey terminal block supports 95 mm² wiring, 1000 V, and 232 A. It features one pole and one level.

  • Screw connection
  • Rated voltage of 1,000 V
  • Operating temperature range of -50 °C to 120 °C

Product Highlights

Potential distributor terminal with screw connections, supporting 95 mm² wiring, 1000 V, and 232 A.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 2503090000
  • Country of Origin: IN

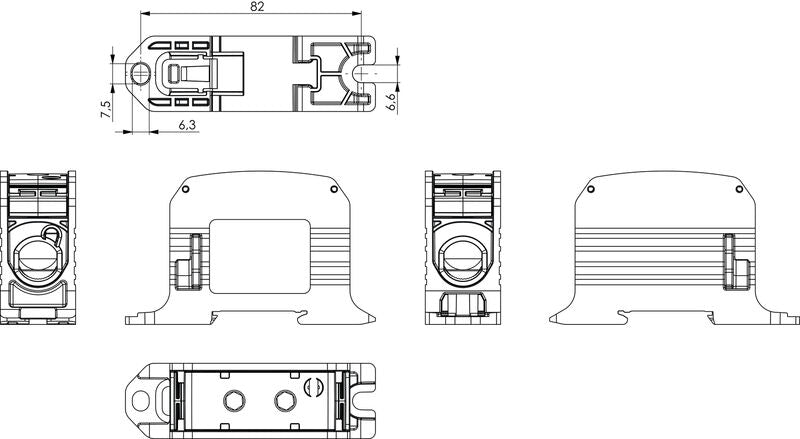

Technical Specifications
Version
Screw connection
Order No.
2503090000
Type
WPD 131 1X95/1X95 GY
GTIN (EAN)
4050118516920
Depth
57 mm
Depth (inches)
2.244 inch
Height
93 mm
Height (inches)
3.661 inch
Width
28 mm
Width (inches)
1.102 inch
Net weight
96 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
Light Grey
UL 94 flammability rating
V-0
Certificate No. (ATEX)
CNEX18ATEX0016U
Certificate No. (IECEX)
IECEXNEX18.0010U
Max. voltage (ATEX)
880 V
Current (ATEX)
232 A
Wire cross section max. (ATEX)
95 mm²
Max. voltage (IECEX)
880 V
Current (IECEX)
232 A
End cover plate required
No
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
PE function
No
Explosion-tested version
Yes
Installation advice
Terminal rail / mounting plate
Type of mounting
Snap-on
Connection type, additional connection
Screw connection
Clamping range, max.
95 mm²
Clamping range, min.
10 mm²
Connection cross-section, stranded, max.
95 mm²
Connection cross-section, stranded, min.
10 mm²
Connection direction
on side
Number of connections
1
Type of connection
Screw connection
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
AWG 3/0
Wire connection cross section AWG, min.
AWG 8
Wire connection cross section, finely stranded, max.
95 mm²
Wire connection cross section, finely stranded, min.
10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
70 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
10 mm²
Wire connection cross-section, solid core, max.
95 mm²
Wire connection cross-section, solid core, min.
10 mm²
Number of poles
1
Standards
IEC 60947-7-1 UL 1059 CSA
Rated cross-section
95 mm²
Rated voltage
1,000 V
Rated AC voltage
1,000 V
Rated DC voltage
1,000 V
Nominal current
232 A
Current at maximum wires
232 A
Volume resistance according to IEC 60947-7-x
0.14 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
7.42 W
Short-time withstand current resistance
8/20µs with 50 kA
Pollution severity
3
Surge voltage category
III
Certificate No. (cURus)
E60693
ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-19
ECLASS 15.0
27-25-01-19
Category
Connectors, Interconnects
Terminal Blocks
Power Distribution
Load Side Connections Per Pole
2
Manufacturer
Weidmüller
Line Side Connection Type
Screw Connection
Series
WPD
Load Side Connection Type
Screw Connection
Packaging
Bulk
Line Side Wire/Stud Size
3/0-8 AWG
Part Status
Active
Load Side Wire/Stud Size
3/0-8 AWG
Product Type
Distribution Unit
Voltage - Rated
1000 V
Current Rating (Amps)
200 A
Line Side Connections Per Pole
2
RoHS Status
ROHS3 Compliant
ECCN
EAR99
Moisture Sensitivity Level (MSL)
1 (Unlimited)
HTSUS
8536.90.4000
REACH Status
REACH Unaffected
Brand
Weidmuller
Part Number #
2503090000
SKU #
2379541
UNSPSC
39121410
Unit of Measure
Per Each
RoHS
Yes
HTS
85369010
COO
IN
Cable CSA
95mm²
Fused
No
Maximum Wire Size AWG
3AWG
Terminal Block Current
232A
Minimum Operating Temperature
-50°C
Termination Type
Screw
Maximum Operating Temperature
120°C
Hazardous Area Certification
IECEx/ATEX
Standards/Approvals
UL 1059, IECEXNEX18.0010U, IEC 60947-7-1, E60693, CSA, CNEX18ATEX0016U
