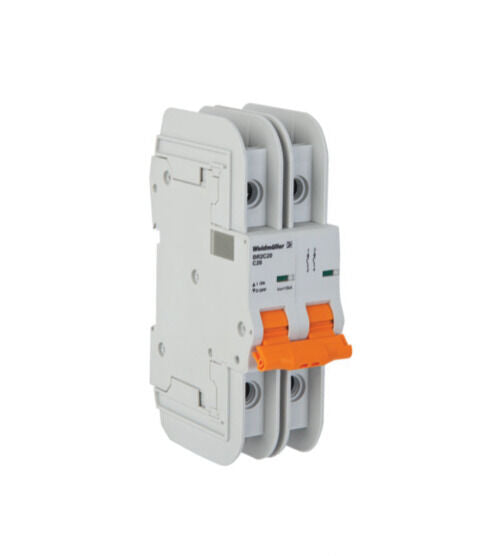

Weidmuller 2478080000 mcb 489 2p c 2a acdc

Product Description

The Weidmuller 2478080000 MCB 489 2P C 2A ACDC is a miniature circuit breaker with a C characteristic curve and 2 poles. Rated for AC/DC voltage, it provides reliable circuit protection. It is a thermomagnetic breaker designed for DIN rail mounting.

• Characteristic curve: C
• Number of poles: 2
• Rated AC voltage: 480, 277 V, Rated DC voltage: 125 V

Product Highlights

Miniature circuit breaker with a C curve, 2 poles, and 2A nominal current.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 2478080000
• Country of Origin: CN

Technical Specifications

• Order No.: 2478080000
• Type: MCB 489 2P C 2A ACDC
• GTIN (EAN): 4050118491913
• Voltage type: AC/DC
• Rated AC voltage: 480,277 V
• Rated DC voltage: 125 V
• Nominal current: 2 A
• Interrupting capacity: 10,000 A
• Characteristic curve: C
• Number of poles: 2
• Version circuit breaker: Thermomagnetic
• Typical lifetime in cycles mechanical: 20000
• Typical lifetime in cycles electrical: 6000
• Type of mounting: DIN rail
• Type of fixing: Rail mounting
• Vibration: according to IEC 60068-2-6
• Shock: according to IEC 60068-2-27
• Colour: white
• ETIM 8.0: EC000042
• ETIM 9.0: EC000042
• ETIM 10.0: EC000042
• ECLASS 14.0: 27-14-19-01
• ECLASS 15.0: 27-14-19-01
• Category: Circuit Protection
• Circuit Breakers: Circuit Breakers
• Voltage Rating - AC: 480 V
• Manufacturer: Weidm ller
• Voltage Rating - DC: 125 V
• Series: MCB 489
• Actuator Type: Lever
• Breaker Type: Thermal Magnetic
• Current Rating (Amps): 2A
• Product Range: MCB 489 Series
• No. of Poles: 2 Pole
• Voltage Rating VDC: 125V
• Voltage Rating VAC: 240V
• Circuit Breaker Mounting: DIN Rail
• Supplier: Weidmuller
• Part No: 2478080000
• Brand: Weidm ller
• Model: 2478080000
• MPN: 2478080000
• Manufacture: Weidm ller
• Country of Origin: Germany
