Weidmuller Weidmuller 2428540000 A3T 2.5 VL
Weidmuller Weidmuller 2428540000 A3T 2.5 VL

Weidmuller 2428540000 A3T 2.5 VL

Brand: Weidmuller
SKU: 2428540000
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

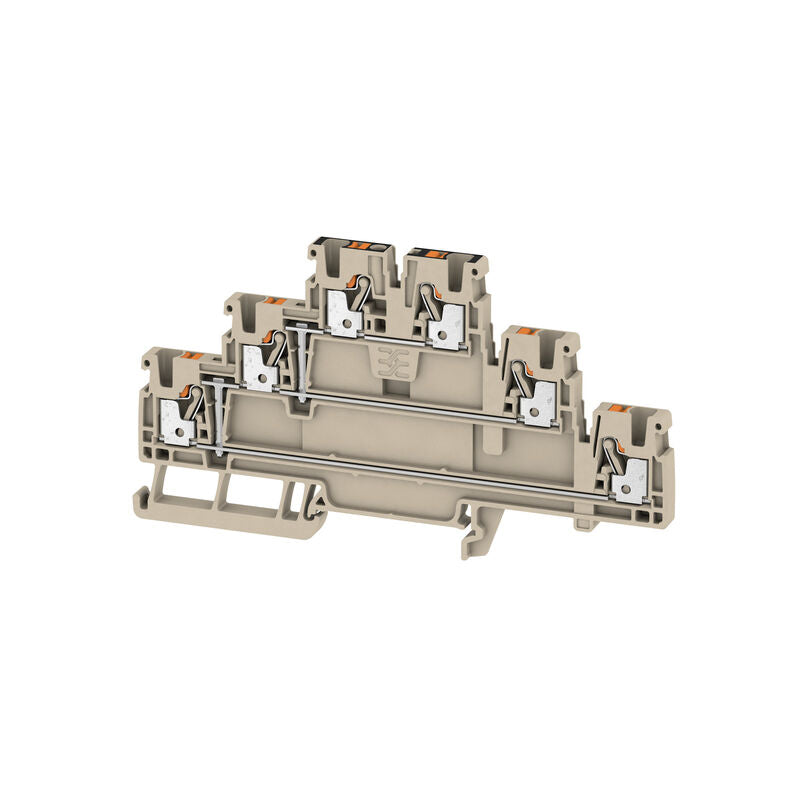

The Weidmuller 2428540000 A3T 2.5 VL is a feed-through, multi-tier modular terminal block. Featuring PUSH IN connection, it supports 2.5 mm² wires, 800 V, and 24 A. It is designed for DIN rail mounting and has three levels with internal cross-connections.

  • Multi-tier modular terminal block with PUSH IN connection
  • Rated for 800 V and 24 A
  • Suitable for DIN rail mounting

Product Highlights

This terminal block is ideal for control panels and electrical distribution boards, ensuring secure and organized connections.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 2428540000
  • Country of Origin: China
Technical Specifications
Version
Feed-through terminal, Multi-tier modular terminal, PUSH IN, 2.5 mm ², 800 V, 24 A, dark beige
Order No.
2428540000
Type
Feed Through
GTIN (EAN)
4050118438222
Depth
64.5 mm
Depth (inches)
2.539 inch
Depth including DIN rail
65 mm
Height
116 mm
Height (inches)
4.567 inch
Width
5.1 mm
Width (inches)
0.201 inch
Net weight
21.72 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
dark beige
Colour of operational elements
orange
UL 94 flammability rating
V-0
Certificate No. (ATEX)
TUEV16ATEX7909U
Certificate No. (IECEX)
IECEXTUR16.0036U
Max. voltage (ATEX)
550 V
Current (ATEX)
19 A
Wire cross section max. (ATEX)
2.5 mm²
Max. voltage (IECEX)
550 V
Current (IECEX)
19 A
Wire cross section max. (IECEX)
2.5 mm²
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
End cover plate required
Yes
Number of potentials
1
Number of levels
3
Number of clamping points per level
2
Levels cross-connected internally
Yes
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No
Explosion-tested version
No
Installation advice
Rail
Open sides
right
Snap-on
No
Type of fixing
Snap-on
Type of mounting
TS 35
With snap-in pegs
No
Connection type, additional connection
PUSH IN
Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0.14 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0.5 mm²
Connection direction
top
Gauge to IEC 60947-1
A3
Number of connections
6
Stripping length
10 mm
Twin wire-end ferrules, max.
0.75 mm²
Twin wire-end ferrules, min.
0.5 mm²
Type of connection
PUSH IN
Type of connection 2
PUSH IN
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 28
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.5 mm²
Wire connection cross-section, solid core, max.
2.5 mm²
Wire connection cross-section, solid core, min.
0.5 mm²
Certificate No. (CSA)
200039-70089609
Current size B (CSA)
20 A
Current size C (CSA)
20 A
Current size D (CSA)
5 A
Voltage size B (CSA)
300 V
Voltage size C (CSA)
300 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
28 AWG
Standards
DIN EN 60947-7-1
Rated cross-section
2.5 mm²
Rated voltage
800 V
Rated DC voltage
800 V
Nominal current
24 A
Current at maximum wires
24 A
Volume resistance according to IEC 60947-7-x
1.33 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
0.77 W
Pollution severity
3
Surge voltage category
III
Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
28 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
28 AWG
Current size B (cURus)
20 A
Current size C (cURus)
20 A
Current size D (cURus)
5 A
Voltage size B (cURus)
300 V
Voltage size C (cURus)
300 V
Voltage size D (cURus)
600 V
ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-02
ECLASS 15.0
27-25-01-02
Current - IEC
19 A
Voltage - IEC
550V
Series
A3T
Current - UL
5 A
Voltage - UL
600V
Wire Gauge or Range - AWG
12-28 AWG
Wire Gauge or Range - mm²
0.5-2.5mm²
Number of Positions
6
Material - Insulation
Thermoplastic, Wemid
Terminal - Width
5.1mm
Material Flammability Rating
UL94 V-0
Termination Style
Push In
Stripping Length
10mm
Product Type
Multi Level Terminal Block
Minimum Wire Size AWG
28AWG
Cable CSA
2.5mm²
Fused
No
Maximum Wire Size AWG
12AWG
Terminal Block Current
24A
Minimum Operating Temperature
-60°C
Termination Type
Push-in
Maximum Operating Temperature
130°C
Hazardous Area Certification
IECEx/ATEX
