Weidmuller 1991810000 A2C 6 PE Terminal Block

Brand: Weidmuller
SKU: 1991810000
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

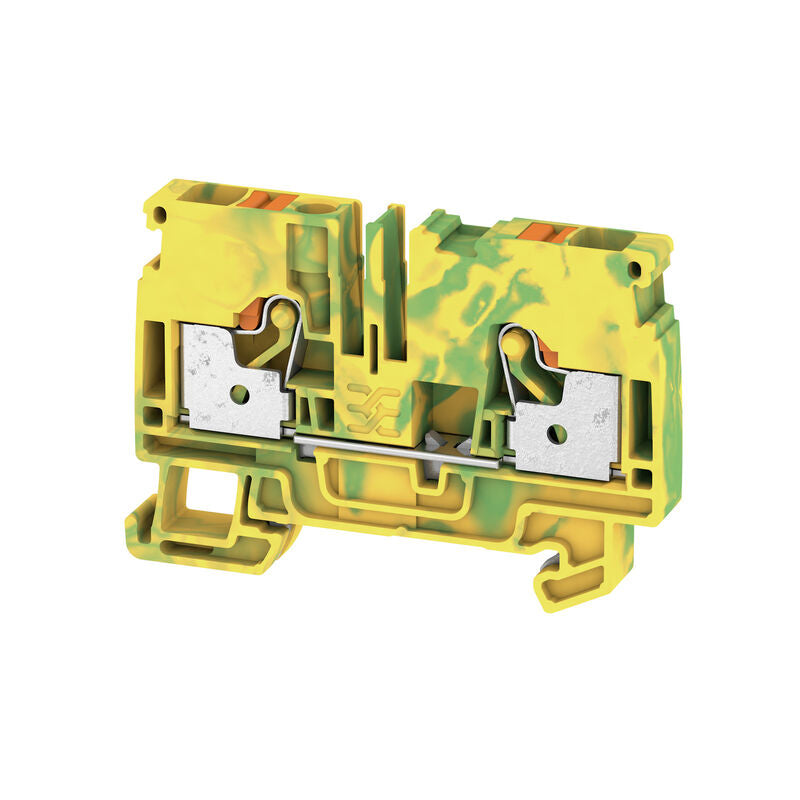

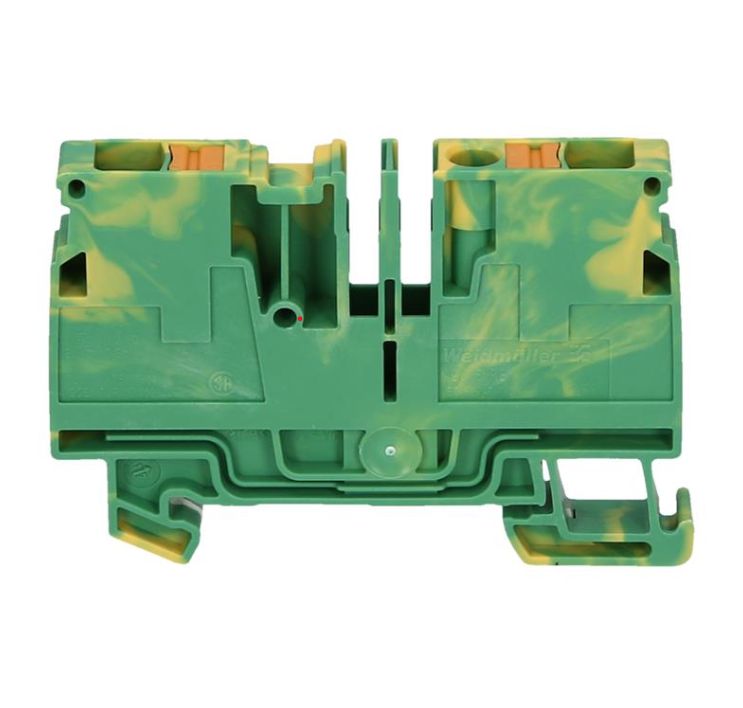

The Weidmuller 1991810000 A2C 6 PE is a PE terminal block with PUSH IN connection, designed for 6 mm² wires. This terminal block features 2 connections on one level and a push-in connection for easy wiring. It enables the connection of solid and stranded conductors without ferrules.

  • PUSH IN connection type
  • Accommodates wire sizes from 8-22 AWG
  • Designed for DIN rail mounting

Product Highlights

The Weidmuller A2C 6 PE terminal block is ideal for ground/earth connections in a variety of applications.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1991810000
Technical Specifications
Version
PE terminal, PUSH IN, 6 mm ², Green/yellow
Order No.
1991810000
Type
Ground, Earth
GTIN (EAN)
4050118376623
Depth
45.5 mm
Depth (inches)
1.791 inch
Depth including DIN rail
46 mm
Height
66.5 mm
Height (inches)
2.618 inch
Width
8.1 mm
Width (inches)
0.319 inch
Net weight
20.4 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
Green/yellow
Colour of operational elements
orange
UL 94 flammability rating
V-0
Certificate No. (ATEX)
TUEV16ATEX7909U
Certificate No. (IECEX)
IECEXTUR16.0036U
Wire cross section max. (ATEX)
6 mm ²
Wire cross section max. (IECEX)
6 mm ²
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
Yes
Mounting rail
TS 35
N-function
No
PE function
Yes
PEN function
No
Explosion-tested version
Yes
Installation advice
Rail
Open sides
right
Snap-on
No
Type of fixing
Snap-on
Type of mounting
TS 35
With snap-in pegs
No
Connection type, additional connection
PUSH IN
Blade size
1.0 x 5.5 mm
Clamping range, max.
10 mm ²
Clamping range, min.
0.34 mm ²
Connection cross-section, finely stranded, min.
0.34 mm ²
Connection cross-section, stranded, max.
6 mm ²
Connection cross-section, stranded, min.
0.34 mm ²
Connection direction
top
Gauge to IEC 60947-1
A5
Number of connections
2
Stripping length
12 mm
Twin wire-end ferrules, max.
1.5 mm ²
Twin wire-end ferrules, min.
0.5 mm ²
Type of connection
PUSH IN
Wire connection cross section AWG, max.
AWG 8
Wire connection cross section AWG, min.
AWG 22
Wire connection cross section, finely stranded, max.
10 mm ²
Wire connection cross section, finely stranded, min.
0.34 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
10 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.34 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
6 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.34 mm ²
Wire connection cross-section, solid core, max.
6 mm ²
Wire connection cross-section, solid core, min.
0.34 mm ²
Certificate No. (CSA)
200039-70089609
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
8 AWG
Wire cross section min. (CSA)
22 AWG
Standards
IEC 60947-7-2
Rated cross-section
6 mm ²
Rated voltage to adjoining terminal
800 V
Rated DC voltage
800 V
Volume resistance according to IEC 60947-7-x
0.78 mΩ
Rated impulse withstand voltage
8 kV
Rated impulse withstand voltage to adjacent terminal
8 kV
Power loss in accordance with IEC 60947-7-x
0 W
Pollution severity
3
Surge voltage category
III
Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
8 AWG
Conductor size Factory wiring min. (cURus)
22 AWG
Conductor size Field wiring max. (cURus)
8 AWG
Conductor size Field wiring min. (cURus)
22 AWG
Voltage size B (cURus)
600 V
Voltage size C (cURus)
600 V
Voltage size D (cURus)
600 V
ETIM 8.0
EC000901
ETIM 9.0
EC000901
ETIM 10.0
EC000901
ECLASS 14.0
27-25-01-03
ECLASS 15.0
27-25-01-03
Mfr. Part #
1991810000
Category
Connectors, Interconnects
Terminal Blocks
Din Rail, Channel
Termination Style
Push In
Manufacturer
Weidmüller
Voltage - IEC
800V
Series
A
Voltage - UL
600V
Packaging
Box
Wire Gauge or Range - AWG
8-22 AWG
Part Status
Active
Wire Gauge or Range - mm²
0.5-6mm²
Color
Green, Yellow
Number of Positions
2
Material - Insulation
Thermoplastic, Wemid
Material Flammability Rating
UL94 V-0
Terminal - Width
8.1mm
Rated Current
720A
Rated Voltage
800V
Product Range
Klippon A
SVHC
No SVHC (23-Jan-2024)
Minimum Wire Size AWG
22AWG
Cable CSA
6mm²
Maximum Wire Size AWG
8AWG
Terminal Block Current
720A
Minimum Operating Temperature
-60°C
Termination Type
Push-in
Maximum Operating Temperature
130°C
Hazardous Area Certification
No
Standards/Approvals
No
Wire Size AWG Min
22AWG
Wire Size AWG Max
8AWG
Conductor Area CSA
6mm²
Wire Connection Method
Push In
No. of Levels
1
Rated cross section
6 mm²
