Description

Product Description

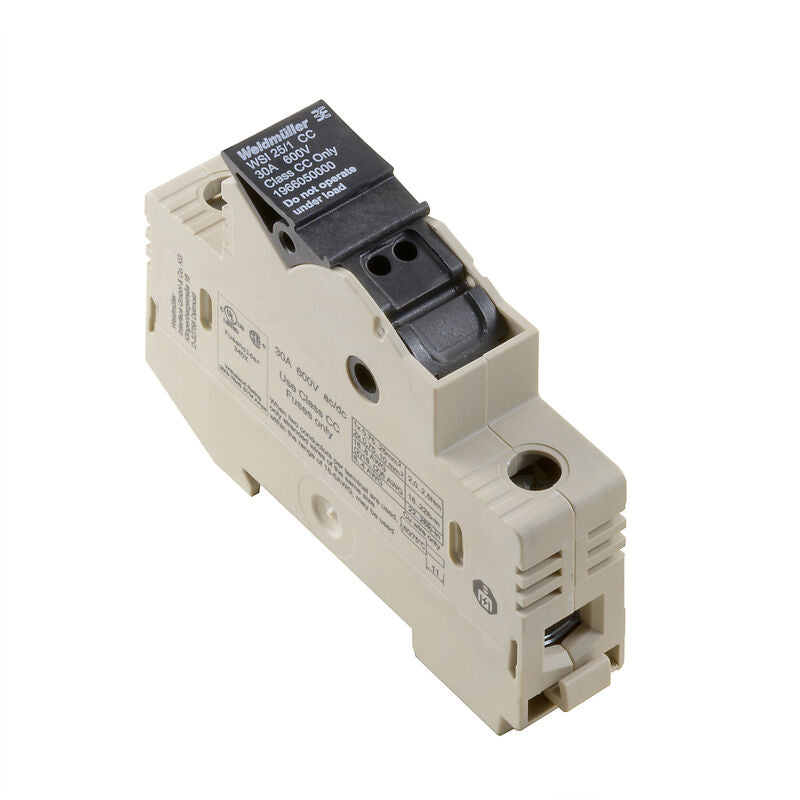

The Weidmuller 1966050000 WSI 25/1 CC is a fuse terminal block with screw connections. This dark beige terminal block supports a 25 mm ² wire size, 32 A current, and 690 V voltage. Designed for TS 35 mounting rails.

  • Screw connection
  • Rated cross-section: 25 mm ²
  • Snap-on mounting

Product Highlights

The Weidmuller WSI 25/1 CC fuse terminal block ensures reliable and safe connections for various electrical applications.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1966050000
  • Country of Origin: United States
Technical Specifications
Version
Fuse terminal, Screw connection, dark beige, 25 mm ², 32 A, 690 V, Number of connections: 2, Number of levels: 1, TS 35
Order No.
1966050000
Type
WSI 25/1 CC
GTIN (EAN)
4032248657797
Depth
58 mm
Depth (inches)
2.283 inch
Height
81 mm
Height (inches)
3.189 inch
Width
18 mm
Width (inches)
0.709 inch
Net weight
51.167 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
PA 66/6
Colour
dark beige
UL 94 flammability rating
V-0
Screw connection
Screw connection
Fuse cartridge
in closed state
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No
Open sides
closed
Type of mounting
Snap-on
Connection type, additional connection
Screw connection
Connection specification
Screw connection
Rated cross-section
25 mm²
Rated voltage
690 V
Rated voltage to adjoining terminal
690 V
Rated DC voltage
690 V
Nominal current
32 A
Current at maximum wires
32 A
Standards
IEC 60947-7-3
Volume resistance according to IEC 60947-7-x
0.32 mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
3.23 W
Pollution severity
3
Cartridge fuse
CC type according to UL 248-4
Fuse holder (cartridge holder)
Pivoting
Type of voltage for indicator
AC/DC
Wire connection cross section AWG, max.
AWG 4
Wire connection cross section AWG, min.
AWG 18
Brand
Weidmüller
Connector Style
Disconnect
Color
Beige
MPN
1966050000
Country of Origin
United States
