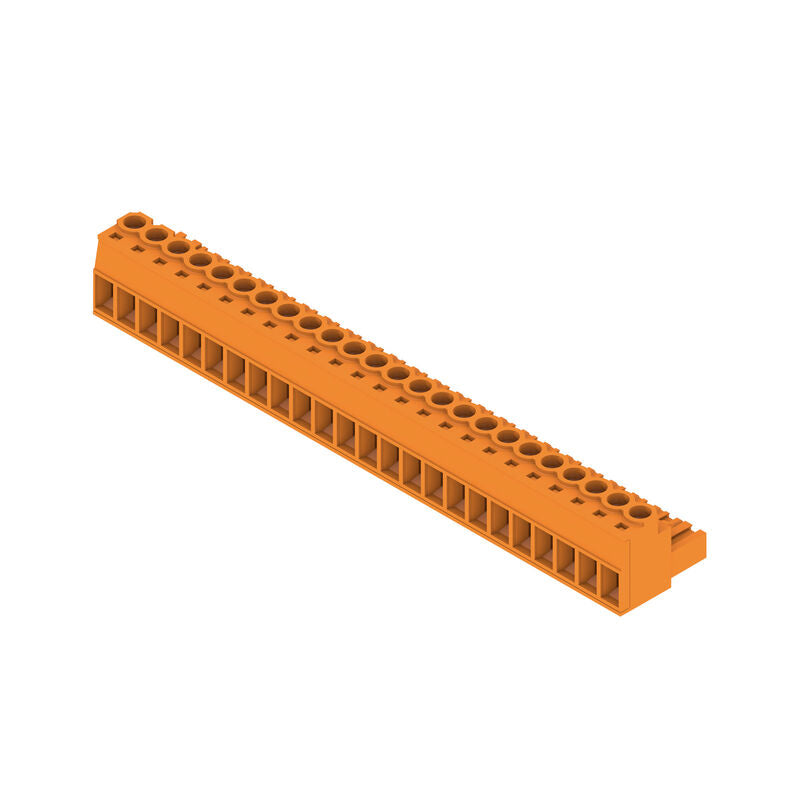

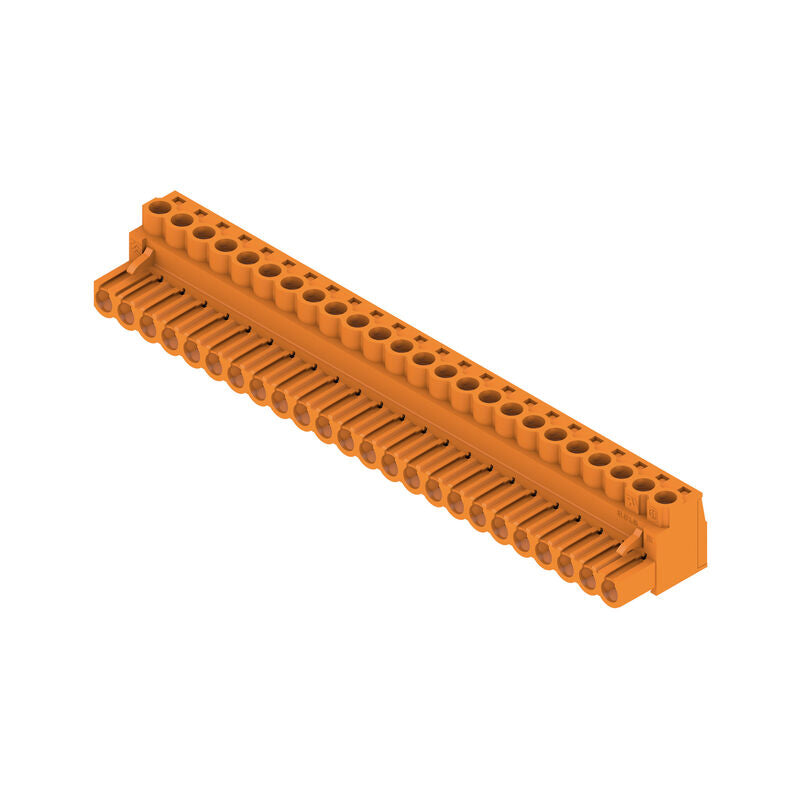

Weidmuller 1943800000 Term Block Plug 24Pos 5.08mm

Product Description

The Weidmuller 1943800000 is a 24 position terminal block plug with female sockets. Featuring a 0.200" (5.08mm) pitch and free hanging (in-line) mounting. It utilizes a screw - clamping yoke (tension sleeve) termination style. Designed for connecting wires with a straight (180") outlet direction.

• Retention Latches (Non-Wire Side)
• 24 positions
• Free Hanging (In-Line) mounting

Product Highlights

This terminal block is ideal for creating secure and organized connections in various electronic applications.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1943800000

Technical Specifications

• Category: Connectors, Interconnects
• Terminal Blocks: Headers, Plugs and Sockets
• Current - UL: 20 A
• Manufacturer: Weidmuller
• Voltage - UL: 300 V
• Series: Omnimate BL
• Wire Gauge or Range - AWG: 12-30 AWG
• Packaging: Bulk
• Wire Gauge or Range - mm ²: 0.2-4mm ²
• Part Status: Active
• Color: Orange
• Type: Plug, Female Sockets
• Operating Temperature: -50°C ~ 100°C
• Number of Positions: 24
• Contact Mating Finish: Tin
• Positions Per Level: 24
• Features: Retention Latches (Non-Wire Side)
• Number of Levels: 1
• Material Flammability Rating: UL94 V-0
• Pitch: 0.200" (5.08mm)
• Screw Size: M2.5
• Plug Wire Entry: 180°
• Torque - Screw: 0.4-0.5 Nm (3.5-4.4 Lb-In)
• Termination Style: Screw - Clamping Yoke (Tension Sleeve)
• Wire Strip Length: 7mm
• Mounting Type: Free Hanging (In-Line)
• Contact Material: Copper Alloy
• Current - IEC: 23A
• Housing Material: Polybutylene Terephthalate (PBT)
• Voltage - IEC: 400 V

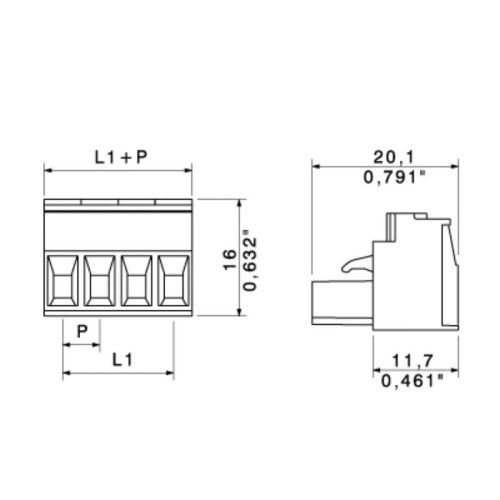

• Insulation Height: 0.632" (16.05mm)
• Pitch in mm (P): 5.08 mm
• Pitch in inches (P): 0.2 "
• L1 in mm: 116.84 mm
• L1 in inches: 4.6 "
• Rated cross-section: 4 mm ²
• Insulating material: PBT
• Wire connection cross section AWG, min.: AWG 30
• Wire connection cross section AWG, max.: AWG 12
• Rated voltage for surge voltage class / pollution degree II/2: 400 V
• Rated voltage for surge voltage class / pollution degree III/2: 320 V
• Rated voltage for surge voltage class / pollution degree III/3: 250 V
• Rated impulse voltage for surge voltage class/ pollution degree II/2: 4 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2: 4 kV
• Rated impulse voltage for surge voltage class/ contamination degree III/3: 4 kV
