Weidmuller 1912460000 conn heavy-duty rectangular f 5signal/1ground pos

Brand: Weidmuller
SKU: 1912460000
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

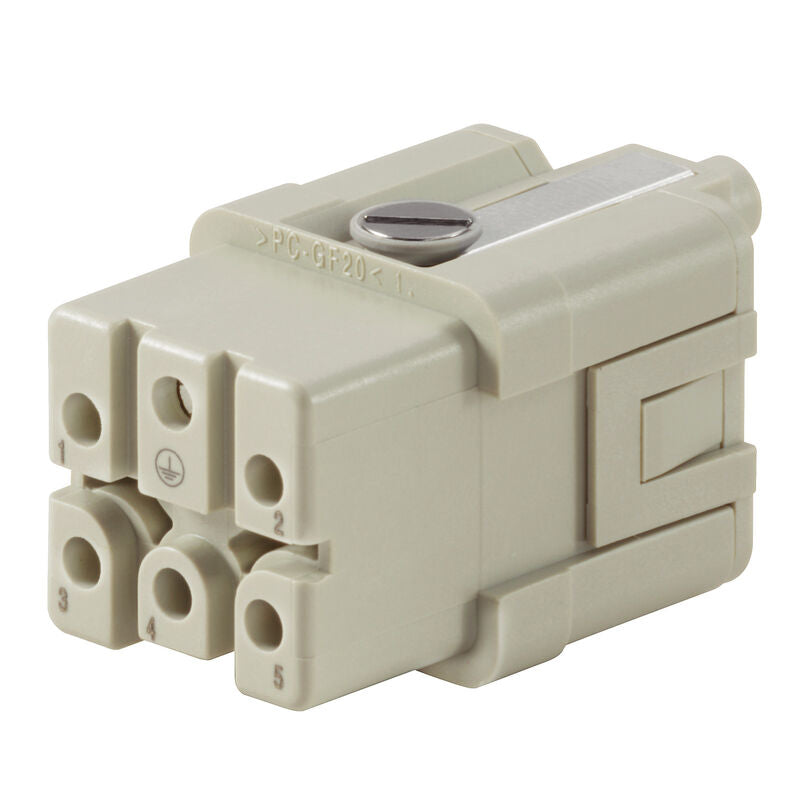

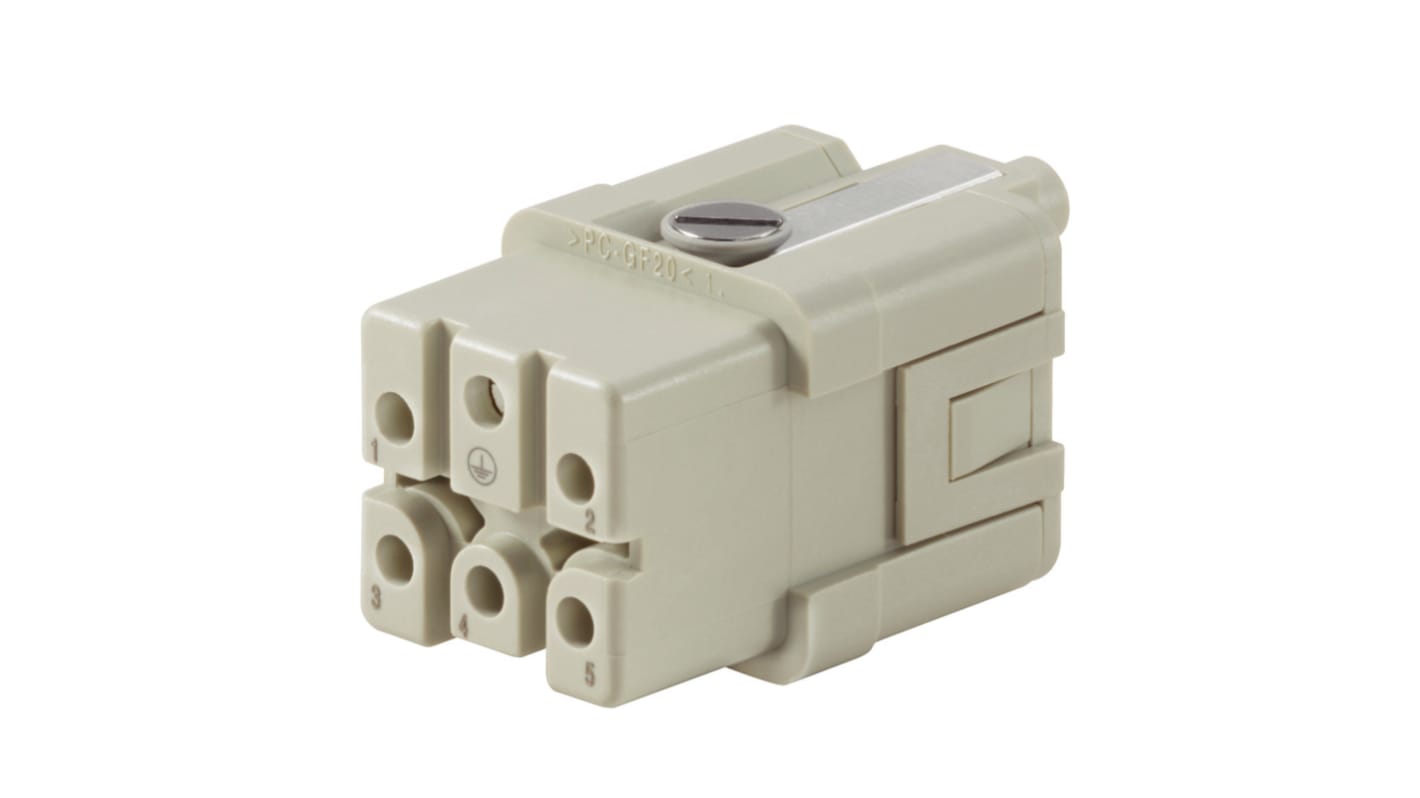

The Weidmuller 1912460000 is a heavy-duty rectangular connector with F 5Signal/1Ground POS. It is designed for crimp termination and panel mounting. The connector is suitable for various potential applications. It has a maximum voltage rating of 400/250 V and a maximum current rating of 16 A.

  • Heavy-Duty Rectangular Connector
  • Panel Mount
  • Crimp Termination

Product Highlights

The Weidmuller 1912460000 is a reliable heavy-duty rectangular connector for demanding applications.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1912460000
  • Country of Origin: CN
Technical Specifications
Supplier
Weidmuller
Part No
1912460000
Unit of Measure
Per Each
RoHS
Yes
Type
Heavy-Duty Rectangular
Mounting
Panel Mount
Body Orientation
Straight
Gender
PL
Pitch
N/A
Termination Method
Crimp
Number of Contacts
5
Maximum Voltage Rating
400/250 V
Maximum Current Rating
16 A
Operating Temperature
-40 to 125 00b0C
Manufacturer
Weidmuller
Connection Type
Crimp Connection
Connector Color
Beige
Component
HDC Insert
Version
HDC insert, Female, 230 V, 20 A, Number of poles: 5, Crimp connection, Installation size: 1
Installation size
1

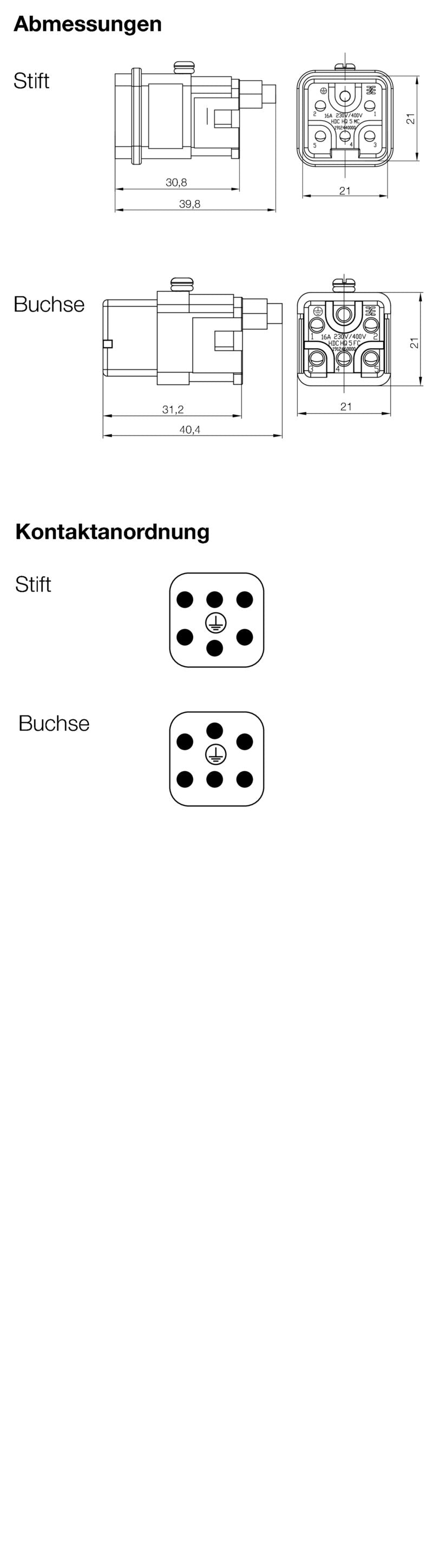

Depth
21 mm
Depth (inches)
0.827 inch
Height
40.1 mm
Height (inches)
1.579 inch
Width
21 mm
Width (inches)
0.827 inch
Length
21 mm
Length (inches)
0.827 inch
Limit temperature
-40 00b0C ... 125 00b0C
RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1, Potassium perfluorobutane sulfonate 29420-49-3
SCIP
b67daa31-7dca-434d-8290-da7fb52f83a2
Chemical resistance
Substance: Acetone, Chemical resistance: Resistant; Substance: Ammonia, watery, Chemical resistance: Conditionally resistant; Substance: Petrol, Chemical resistance: Resistant; Substance: Benzene, Chemical resistance: Resistant; Substance: Diesel oil, Chemical resistance: Conditionally resistant; Substance: Acetic acid, concentrated, Chemical resistance: Resistant; Substance: Potassium hydroxide, Chemical resistance: Conditionally resistant; Substance: Methanol, Chemical resistance: Conditionally resistant; Substance: Motor oil, Chemical resistance: Conditionally resistant; Substance: Lye, diluted, Chemical resistance: Resistant; Substance: Hydrochlorofluorocarbons, Chemical resistance: Conditionally resistant; Substance: Outdoor use, Chemical resistance: Conditionally resistant
Height of socket
40.1 mm
Total length base
21 mm
Basic material
Copper alloy
Colour
beige
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Insulating material group
IIIa
Insulation resistance
10
Number of poles
5
Number of power contacts
5
Plugging cycles, gold
2265 500
Plugging cycles, silver
2265 500
Pollution severity
3
Rated current (cUR)
Wire connection cross section AWG: AWG 12, Rated current: 19 A; Wire connection cross section AWG: AWG 14, Rated current: 15 A; Wire connection cross section AWG: AWG 16, Rated current: 12 A; Wire connection cross section AWG: AWG 18, Rated current: 8 A; Wire connection cross section AWG: AWG 20, Rated current: 8 A
Rated current (DIN EN 61984)
20 A
Rated current (UR)
Wire connection cross section AWG: AWG 12, Rated current: 18 A; Wire connection cross section AWG: AWG 14, Rated current: 15 A; Wire connection cross section AWG: AWG 16, Rated current: 12 A; Wire connection cross section AWG: AWG 18, Rated current: 8 A; Wire connection cross section AWG: AWG 20, Rated current: 8 A
Rated impulse voltage (DIN EN 61984)
4 kV
Rated voltage (DIN EN 61984)
230 V
Rated voltage according to UL/CSA
600 V AC/DC
Rated voltage conductor-conductor (III/3)
400 V
Series
HQ
Tightening torque, max. PE connection
0.55 Nm
Tightening torque, min. PE connection
0.5 Nm
Type of connection
Crimp connection
UL 94 flammability rating
V-0
Volume resistance
22642 m 03a9
Blade size, slotted (PE connection)
SD 0.6 x 3.5
Connection type PE
Screw connection
Fixing screw
M 3
Rated cross-section
2.5 mm 00b2
Stripping length PE connection
10 mm
Wire cross section, AWG (PE), max.
AWG 14
Wire cross section, AWG (PE), min.
AWG 20
Rated current (DIN EN 61984), power contact
20 A
Conductor cross-section, max.
2.5 mm 00b2
Conductor cross-section, min.
0.5 mm 00b2
Stripping length, rated connection
7.5 mm
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section, finely stranded, max.
2.5 mm 00b2
Wire connection cross section, finely stranded, min.
0.5 mm 00b2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm 00b2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.5 mm 00b2
ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
Current Rating
16A
Product Type
Contact Insert
Sub Type
Connector Insert
Connector Gender
Female
Pole Format
5
Number of Rows
2
Voltage
250, 600V ac
Mount Type
Cable
IP Rating
IP65
Standards/Approvals
RoHS
Manufacturer Size Code
1
Orientation
Straight
Maximum Wire Size mm 00b2
4mm 00b2
Minimum Wire Size mm 00b2
2mm 00b2
MPN
1912460000
Model
1912460000
UPC
Does not apply
Country of Origin
China
Brand
Weidmuller
