Weidmuller 1909870000 Vg M25-1/K68 Cable Gland (50 Pack)

Product Description

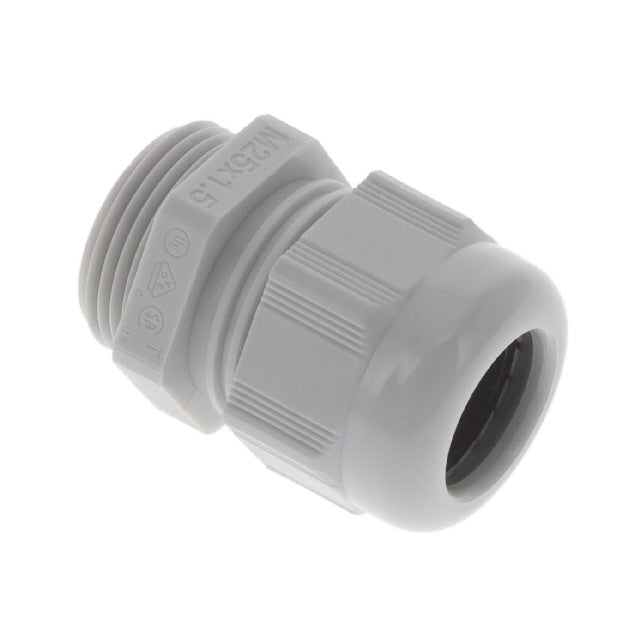

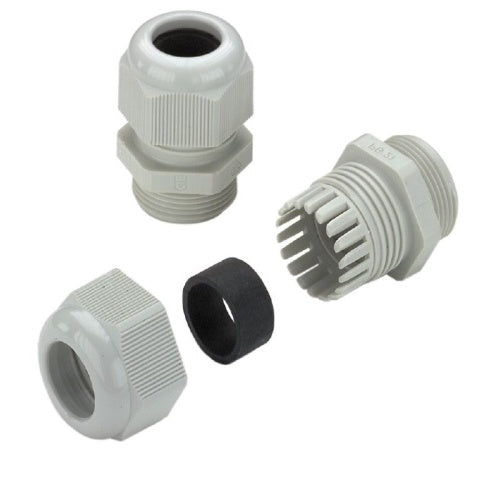

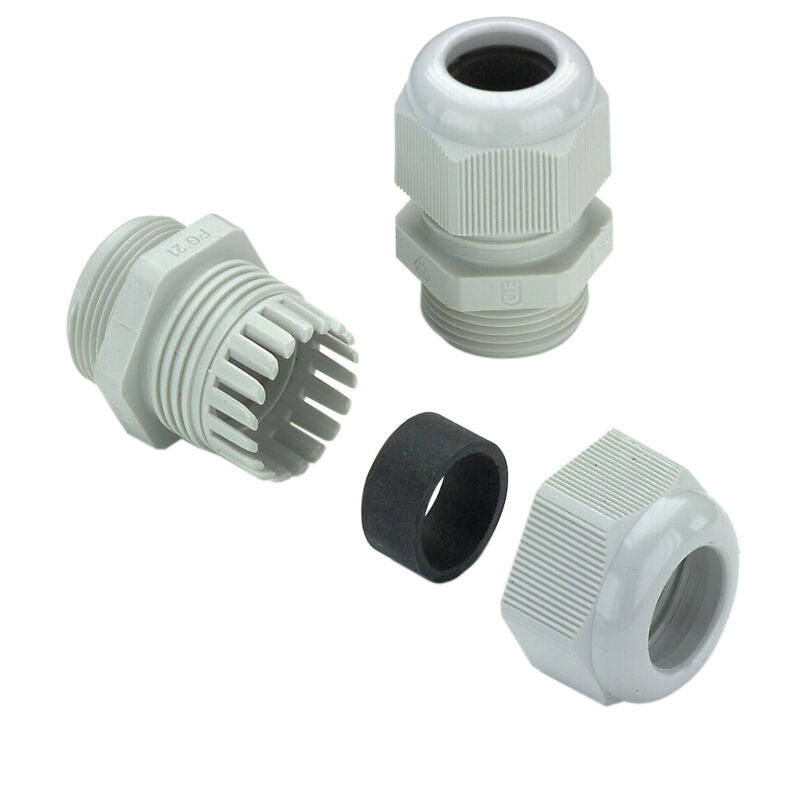

Weidmuller 1909870000 is a VG M25-1/K68 straight plastic cable gland that seals housings and provides strain relief for cables with outer diameters from 11 to 17 mm. Constructed of polyamide 6 with a CR seal insert, the gland features an M25 x 1.5 thread, 8 mm thread length and overall length 43 mm. Rated for IP54, IP66, IP67 and IP68 (5 bar, 30 min) and operating temperatures -40 °C to 100 °C.

• M25 x 1.5 external thread, thread length 8 mm; nominal entry 8 mm
• Accepts cable outer diameters 11 mm to 17 mm; material: Polyamide 6 (PA6) with CR seal insert
• Ingress protection IP54/IP66/IP67/IP68 (IP68: 5 bar, 30 min); operating temperature -40 °C to 100 °C

Product Highlights

M25 cable gland for 11–17 mm cables, IP67/IP68 rated, polyamide 6 construction

Product Information

Standard Information

• Brand: WEIDMULLER
• Manufacturer Part Number: 1909870000
• Country of Origin: Turkey

Technical Specifications

• Manufacturer: Weidmuller
• Manufacturer Part Number: 1909870000
• Model: VG M25-1/K68
• Series: VG
• Product Type: Cable gland (straight)
• Material: Polyamide 6 (PA6)
• Seal Insert: CR
• Thread Size: M25 x 1.5 mm
• Thread Pitch: 1.5 mm
• Thread Length: 8 mm
• Nominal Entry: 8 mm
• Cable Outer Diameter Range: 11 mm to 17 mm
• Length: 43 mm
• Height: 34 mm
• Net Weight: 16.1 g (per item)
• Operating Temperature Range: -40 °C to 100 °C
• Ingress Protection: IP54, IP66, IP67, IP68
• Pressure Rating: IP68: 5 bar (30 min)
• Tightening Torque: 3.5 Nm
• Torque for Cap Nut Min: 4.5 Nm
• Torque for Cap Nut Max: 5.5 Nm
• UL 94 Flammability Rating: V-2
• Protection Class (UL): Type 4X
• AF Size (Wrench Size): 29 mm
• Standards: EN/IEC 62444
• GTIN (EAN): 4032248536795
• Pack Quantity: 50 items
• RoHS Compliance: RoHS compliant
• Country of Origin: Turkey
