Description

Product Description

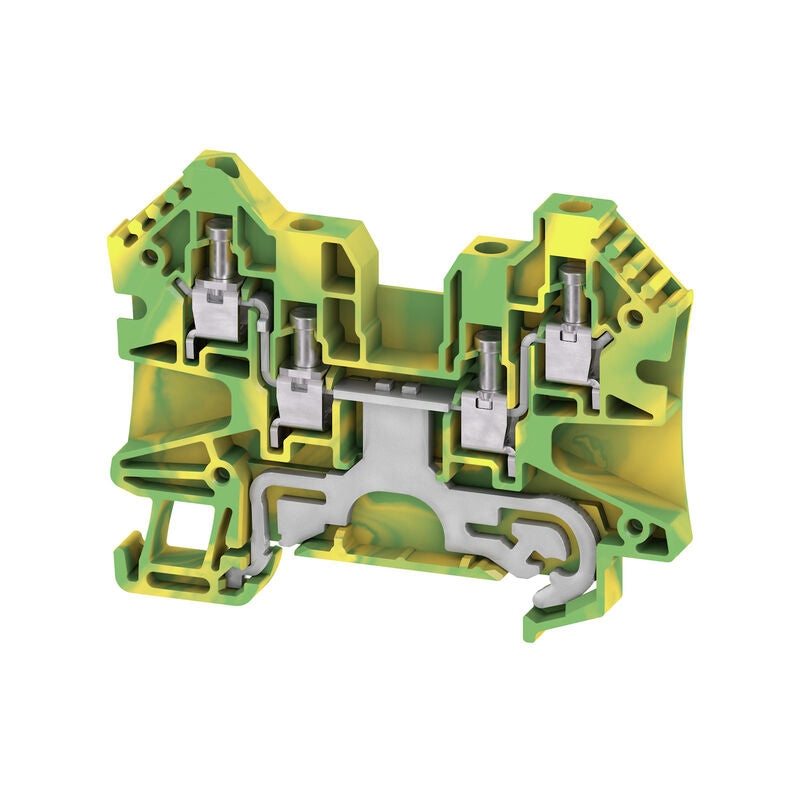

The Weidmuller 1905130000 WPE 4/ZZ is a PE terminal block with screw connections, designed for grounding and equipotential bonding. Constructed from Wemid, it features 4 connections and supports wire sizes from 0.05 to 6 mm². It is suitable for TS 35 mounting rails and conforms to IEC 60947-7-2 standards.

  • Screw connection for secure and reliable wiring
  • Suitable for DIN rail mounting
  • Flame retardant Thermoplastic, Wemid housing

Product Highlights

The Weidmuller WPE 4/ZZ terminal block ensures safe and efficient grounding in electrical installations.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1905130000
  • Country of Origin: China
Technical Specifications
Version
Screw connection
Order No.
1905130000
Type
WPE 4/ZZ
GTIN (EAN)
4032248523382
Basic material
Wemid
Colour
Green/yellow
UL 94 flammability rating
V-0
Certificate No. (ATEX)
DEMKO14ATEX1338U
Certificate No. (IECEX)
IECEXULD14.0005U
Wire cross section max. (ATEX)
4 mm 2
Wire cross section max. (IECEX)
4 mm 2
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
Twin connection
With PE connection
One end without connector
Yes
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
4
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
Yes
Mounting rail
TS 35
N-function
No
PE function
Yes
PEN function
No
Explosion-tested version
Yes
Installation advice
when screwed in
Open sides
right
Type of mounting
Snap-on
Connection type, additional connection
Screw connection
Blade size
0.6 x 3.5 mm
Clamping range, max.
6 mm 2
Clamping range, min.
0.05 mm 2
Clamping screw
M 3
Connection cross-section, finely stranded, min.
0.05 mm 2
Connection cross-section, stranded, max.
4 mm 2
Connection cross-section, stranded, min.
0.05 mm 2
Connection direction
on side
Gauge to IEC 60947-1
A4
Number of connections
4
Stripping length
10 mm
Tightening torque, max.
0.8 Nm
Tightening torque, min.
0.5 Nm
Torque level with DMS electric screwdriver
2
Type of connection
Screw connection
Wire connection cross section AWG, max.
AWG 10
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm 2
Wire connection cross section, finely stranded, min.
0.05 mm 2
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, max.
4 mm 2
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.05 mm 2
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm 2
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.05 mm 2
Wire connection cross-section, solid core, max.
6 mm 2
Wire connection cross-section, solid core, min.
0.05 mm 2
Certificate No. (CSA)
200039-1057876
Wire cross section max. (CSA)
10 AWG
Wire cross section min. (CSA)
30 AWG
Standards
IEC 60947-7-2
Rated cross-section
4 mm 2
Rated voltage to adjoining terminal
800 V
Rated DC voltage
800 V
Nominal current
8 A
Volume resistance according to IEC 60947-7-x
1 m
Rated impulse withstand voltage to adjacent terminal
8 kV
Power loss in accordance with IEC 60947-7-x
0 W
Pollution severity
3
Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
10 AWG
Conductor size Factory wiring min. (cURus)
30 AWG
Conductor size Field wiring max. (cURus)
10 AWG
Conductor size Field wiring min. (cURus)
30 AWG
Current - IEC
8 A
Series
W
Wire Gauge or Range - AWG
10-30 AWG
Material - Insulation
Thermoplastic, Wemid
Number of Positions
4
Material Flammability Rating
UL94 V-0
Brand
Weidmuller
Terminal Block Width
6.1 mm
Terminal Block Connection Method
Screw Connection
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Terminal Block Amperage
8 Amp
Sub Component
PE Terminal
Supplier
Weidmuller
Part No
1905130000
Unit of Measure
Per Each
RoHS
Yes
Body Orientation
Straight
