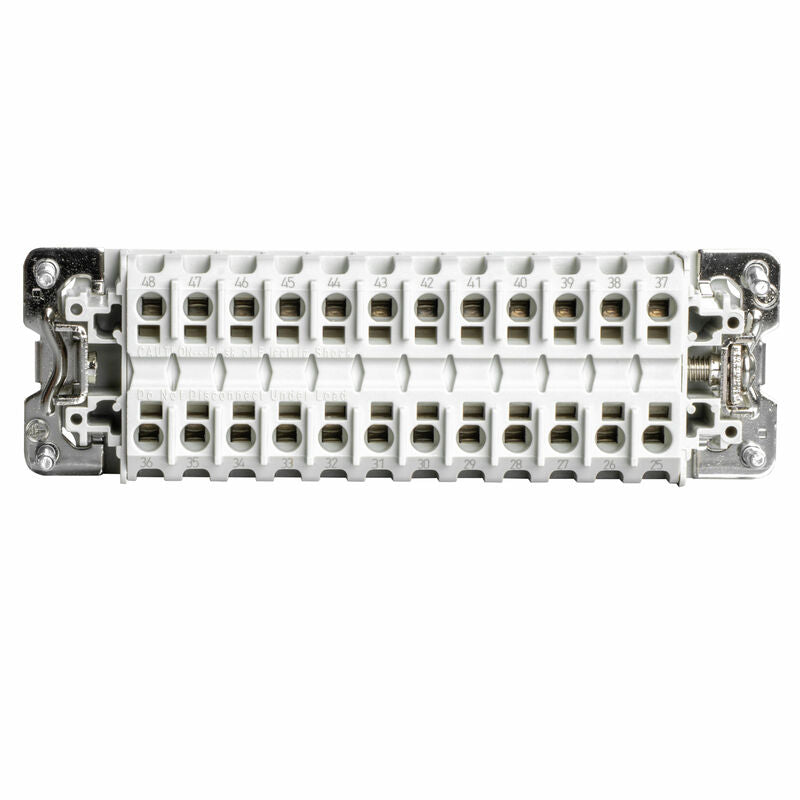

Weidmuller 1875890000 insert male 24pos+1gnd push in

Product Description

The Weidmuller 1875890000 is a male insert with 24+Ground positions and push-in termination. Constructed with polycarbonate (PC) and glass-filled housing material. It is designed for use with heavy-duty connectors. The insert has a voltage rating of 500V and a current rating of 16A. Operating temperature ranges from -40°C to 125°C.

• Termination Style: Push In
• Voltage Rating: 500V
• Operating Temperature: -40°C ~ 125°C

Product Highlights

The Weidmuller 1875890000 insert provides a reliable connection for industrial applications with its robust design and push-in termination.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1875890000
• Country of Origin: CN

Technical Specifications

• Category: Connectors, Interconnects
• Heavy Duty Connectors: Heavy Duty Connector Inserts, Modules
• Termination Style: Push In
• Manufacturer: Weidm ller
• Voltage Rating: 500V
• Series: Rockstar HE
• Current Rating (Amps): 16A
• Packaging: Bulk
• Operating Temperature: -40 C ~ 125 C
• Part Status: Active
• Housing Material: Polycarbonate (PC), Glass Filled
• Connector Type: Insert
• Contact Material: Copper Alloy
• Gender: Male
• Contact Finish: Silver
• Number of Positions: 24+Ground
• Material Flammability Rating: UL94 V-0
• Size: 8
• Installation size: 8
• Number of poles: 24
• Rated voltage (DIN EN 61984): 500 V
• Rated current (DIN EN 61984): 16 A
• Insulating material: PC glass-fibre reinforced (UL-listed and railway-certified)
• Type of connection: PUSH IN
• Rated impulse voltage (DIN EN 61984): 6 kV
• Pollution severity: 3
• Insulating material group: IIIa
• UL 94 flammability rating: V-0
• Basic material: Copper alloy
• Surface finish: Silver passivated
• Number of power contacts: 24
• Number of signal contacts: 0
• Low smoke acc. DIN EN 45545-2: Yes
• Rated voltage according to UL/CSA: 600 V AC/DC
• Plugging cycles, gold: 500
• Plugging cycles, silver: 500
• Volume resistance: 2 m
• Rated current (UR) Wire connection cross section AWG:AWG 12: 20 A
• Rated current (UR) Wire connection cross section AWG:AWG 14: 15 A
• Rated current (UR) Wire connection cross section AWG:AWG 16: 10 A
• Rated current (UR) Wire connection cross section AWG:AWG 18: 7 A
• Rated current (UR) Wire connection cross section AWG:AWG 20: 5 A
• Rated current (cUR) Wire connection cross section AWG:AWG 12: 19 A
• Rated current (cUR) Wire connection cross section AWG:AWG 14: 16 A
• Rated current (cUR) Wire connection cross section AWG:AWG 16: 12.5 A
• Rated current (cUR) Wire connection cross section AWG:AWG 18: 9.8 A
• Rated current (cUR) Wire connection cross section AWG:AWG 20: 8 A
• Conductor cross-section, max.: 2.5 mm
• Conductor cross-section, min.: 0.5 mm
• Wire cross-section, solid, max.: 2.5 mm
• Wire cross-section, solid, min.: 0.5 mm
• Wire connection cross section, finely stranded, max.: 2.5 mm
• Wire connection cross section, finely stranded, min.: 0.5 mm
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 2.5 mm
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm
• Stripping length, rated connection: 10 mm
• Connection type PE: Screw connection
• Rated cross-section: 4 mm
• Stripping length PE connection: 10 mm
• Tightening torque, max. PE connection: 1.5 Nm
• Tightening torque, min. PE connection: 1.2 Nm
• Wire cross section, AWG (PE), max.: AWG 12
• Wire cross section, AWG (PE), min.: AWG 20
• Suitable For Use With: Heavy Duty Connector
• Temperature Rating: -40 to 125 deg C
• Type: 24-Pole
• Wire Size: 20 to 12 AWG
• Order code / Manufacturer SKU: 1875890000
• Manufacturer product status: Commercialized
• Rated current In (A): 16
• Contact type: Pin
• Width (mm): 34
• With housing: No
• Contact insert without contacts: No
• Shape: Rectangular
• Suitable for distribution board: No
• Material connector insert: Thermoplastic
• Rated voltage (V): 500
• Rated surge voltage (kV): 6
• Pollution degree: 3
• Type of electric connection: Push-in clamp connection
• With wire protection: No
• Connectable conductor cross section fine-strand without cable end sleeve (mm ): 0.5 - 2.5
• Connectable conductor cross section fine-strand with cable end sleeve (mm ): 0.5 - 1.5
• Connectable conductor cross section solid-core (mm ): 0.5 - 2.5
• Connectable conductor cross section multi-wired (mm ): 0.5 - 2.5
• Material of contact surface: Silver
• Material contact: Other copper alloys
• Inflammability class of insulation material according to UL94: V0
• With protective conductor: Yes
• Operating temperature ( C): -40 - 125
• Height (mm): 34.3
• Depth (mm): 111
• Dimensions: 34.3 mm H x 34 mm W x 111 mm D
