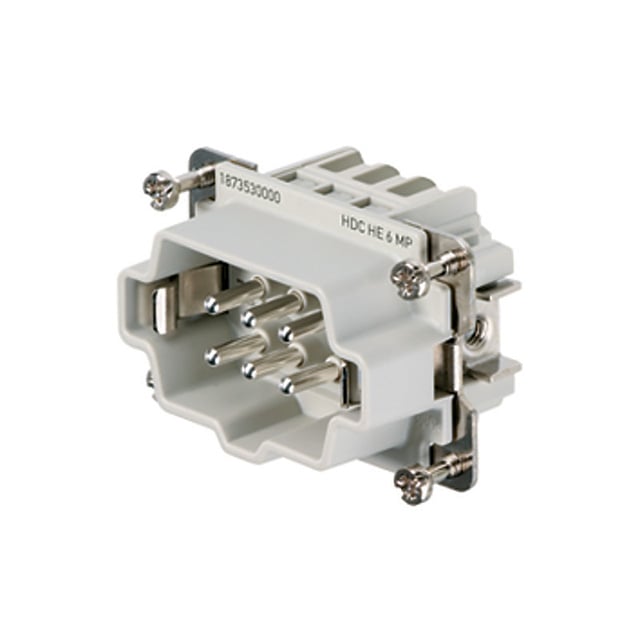

Weidmuller 1873530000 HE Series Insert 6 Contacts Plug Push Lock Pin 24 A (Size 3)

Product Description

Weidmuller 1873530000 is an HE Series heavy duty connector insert (plug) with six contacts, rectangular shell size 3 and a push lock pin contact type. The module is rated for 24 A and 500 V (nominal 600 V AC/DC per UL/CSA), designed for industrial panel-to-cable and machine-building connections where robust multi-pin power and signal mating is required.

• HE Series heavy duty insert, plug format with 6 contacts and size 3 rectangular shell
• Push lock pin contact type rated 24 A and 500 V (600 V AC/DC per UL/CSA)
• RoHS compliant; housing polycarbonate (glass filled) with silver-plated copper alloy contacts

Product Highlights

6-contact HE Series male insert, push lock pin termination, 24 A / 500 V rating, size 3 rectangular shell

Product Information

Standard Information

• Brand: WEIDMULLER
• Manufacturer Part Number: 1873530000

Technical Specifications

• Manufacturer: Weidmuller
• Manufacturer Part Number: 1873530000
• Series: HE Series
• Component Type: Heavy duty connector insert (plug)
• Number of Contacts: 6
• Size: 3
• Gender: Plug (Male)
• Contact/Termination Type: Push lock pin
• Current Rating: 24 A
• Rated Voltage: 500 V
• Nominal Voltage (UL/CSA): 600 V AC/DC
• Housing Material: Polycarbonate (glass filled)
• Contact Material: Copper alloy
• Contact Finish: Silver
• Operating Temperature: -40 C to 125 C
• Material Flammability Rating: UL94 V-0
• RoHS Compliance: Yes
• RoHS Phthalates Compliance: Yes
• SVHC: Lead
• ECCN: EAR99
