Weidmuller 1846140000 sls 5.08/06/180tb kf sn or bx

Product Description

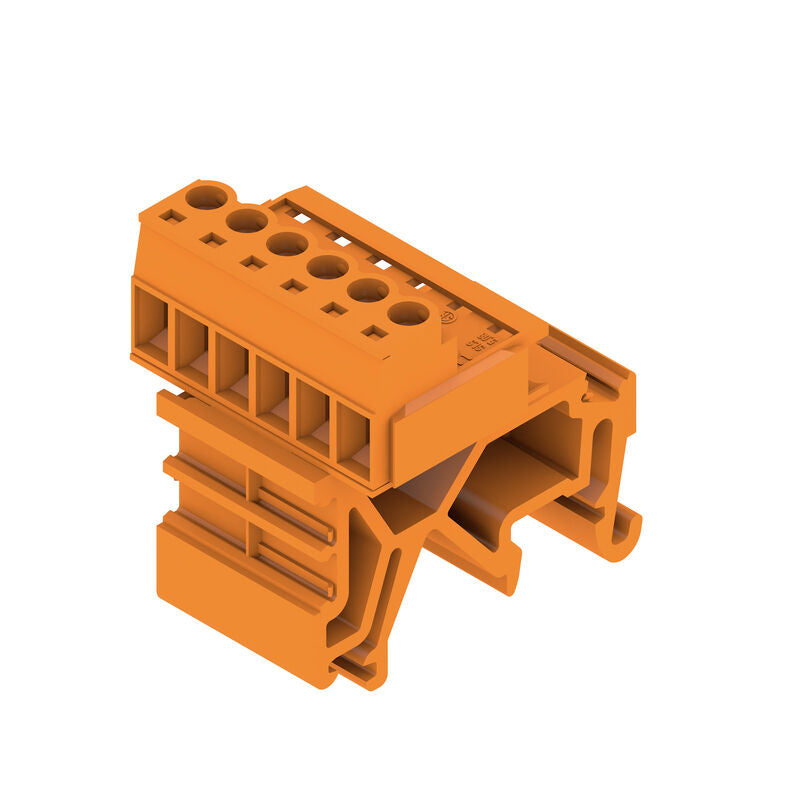

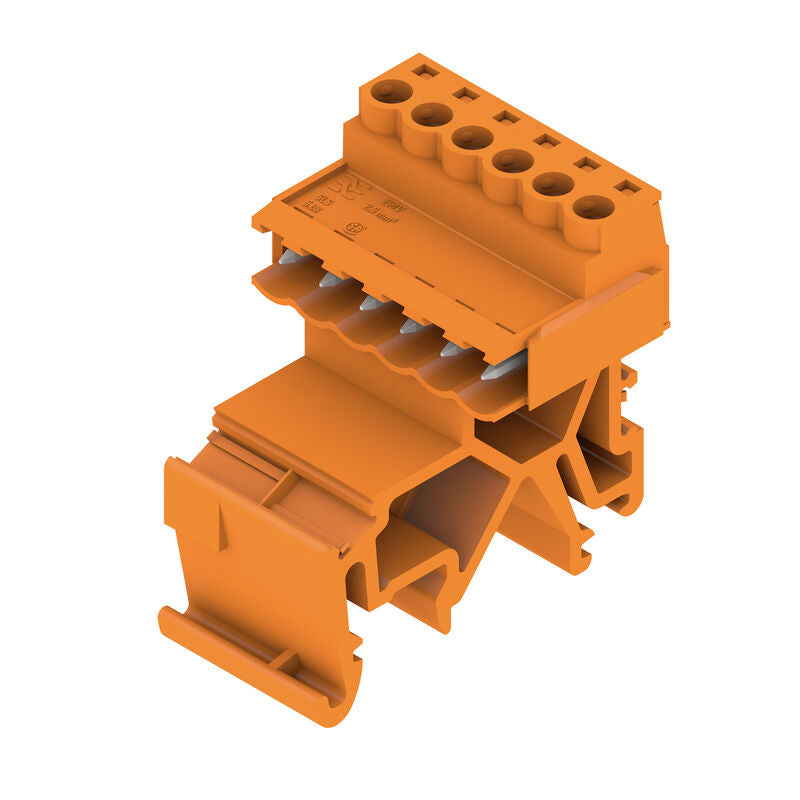

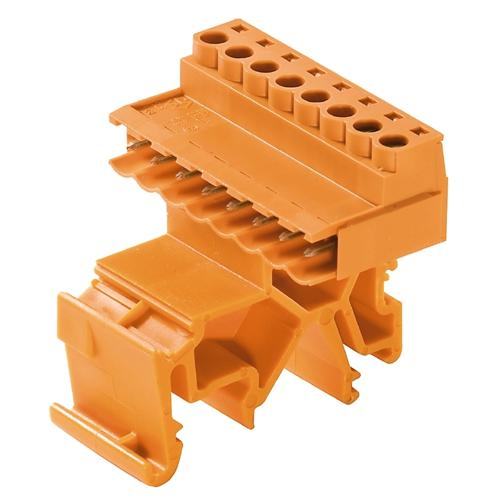

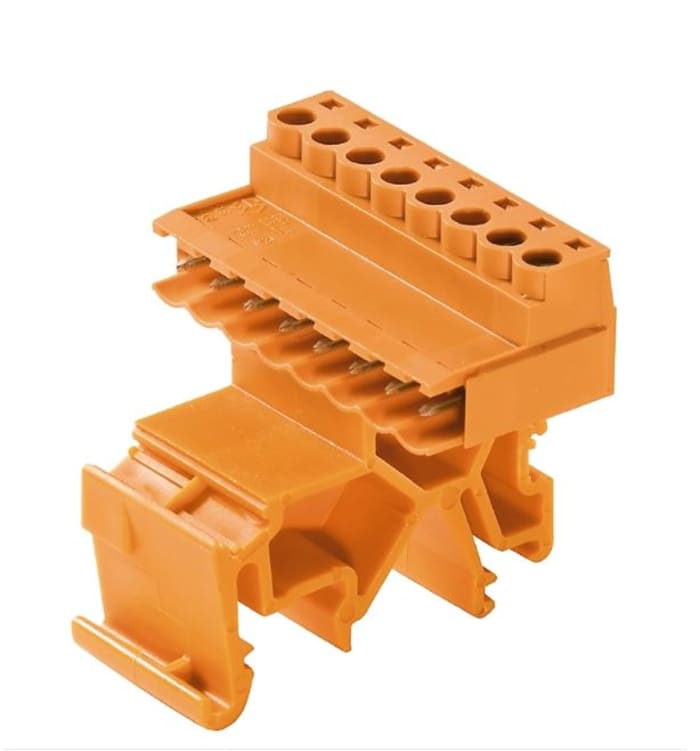

The Weidmuller 1846140000 is a PCB plug-in connector, also known as SLS 5.08/06/180TB KF SN OR BX. This male plug features a 5.08 mm pitch, 6 poles, and a 180 degree conductor outlet direction. It utilizes a clamping yoke connection with a clamping range of up to 3.31 mm .

• Clamping yoke screw wire connect system
• Clip-on feet for attaching the male plugs on rail
• Space for labeling and can be coded

Product Highlights

This Weidmuller plug-in connector is ideal for creating reliable wire connections on PCBs.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1846140000
• Country of Origin: Czech Republic

Technical Specifications

• Version: PCB plug-in connector, male plug, 5.08 mm, Number of poles: 6, 180, Clamping yoke connection, Clamping range, max. : 3.31 mm, Box
• Order No.: 1846140000
• Type: Wire Connection
• GTIN (EAN): 4032248362424
• Product family: OMNIMATE Signal - series BL/SL 5.08
• Type of connection: Field connection
• Wire connection method: Clamping yoke connection
• Pitch in mm (P): 5.08 mm
• Pitch in inches (P): 0.2 "
• Conductor outlet direction: 180
• Number of poles: 6
• L1 in mm: 25.4 mm
• L1 in inches: 1 "
• Number of rows: 1
• Pin series quantity: 1
• Touch-safe protection acc. to DIN VDE 57 106: finger-safe plugged/ back-of-hand-safe unplugged
• Touch-safe protection acc. to DIN VDE 0470: IP20 plugged/ IP10 unplugged
• Protection degree: IP20
• Stripping length: 7 mm
• Screwdriver blade: 0.6 x 3.5
• Screwdriver blade standard: DIN 5264
• Plugging cycles: 25
• Insulating material: PBT
• Insulating material group: IIIa
• Comparative Tracking Index (CTI): 200
• UL 94 flammability rating: V-0
• Contact material: Cu-alloy
• Contact surface: tinned
• Clamping range, min.: 0.13 mm
• Clamping range, max.: 3.31 mm
• Wire connection cross section AWG, min.: AWG 26
• Wire connection cross section AWG, max.: AWG 12
• Solid, min. H05(07) V-U: 0.2 mm
• Solid, max. H05(07) V-U: 2.5 mm
• Stranded, min. H07V-R: 0.2 mm
• Stranded, max. H07V-R: 2.5 mm
• Flexible, min. H05(07) V-K: 0.2 mm
• Flexible, max. H05(07) V-K: 2.5 mm
• w. plastic collar ferrule, DIN 46228 pt 4, min.: 0.2 mm
• w. plastic collar ferrule, DIN 46228 pt 4, max.: 2.5 mm
• w. wire end ferrule, DIN 46228 pt 1, min.: 0.2 mm
• w. wire end ferrule, DIN 46228 pt 1, max.: 2.5 mm
• Rated current, min. number of poles (Tu=20 C): 21.5 A
• Rated current, max. number of poles (Tu=20 C): 16 A
• Rated current, min. number of poles (Tu=40 C): 18 A
• Rated current, max. number of poles (Tu=40 C): 14 A
• Rated voltage for surge voltage class / pollution degree II/2: 400 V
• Rated voltage for surge voltage class / pollution degree III/2: 320 V
• Rated voltage for surge voltage class / pollution degree III/3: 250 V
• Rated impulse voltage for surge voltage class/ pollution degree II/2: 4 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2: 4 kV
• Rated impulse voltage for surge voltage class/ contamination degree III/3: 4 kV
• Rated voltage (Use group B / CSA): 300 V
• Rated voltage (Use group D / CSA): 300 V
• Rated current (Use group B / CSA): 15 A
• Rated current (Use group D / CSA): 10 A
• Wire cross-section, AWG, min.: AWG 26
• Wire cross-section, AWG, max.: AWG 12
• Rated voltage (Use group B / UL 1059): 300 V
• Rated voltage (Use group D / UL 1059): 300 V
• Rated current (Use group B / UL 1059): 14 A
• Rated current (Use group D / UL 1059): 10 A
• Manufacturer: WEIDMULLER
• Category: Connectors, Interconnects/Terminal Blocks/Headers, Plugs and Sockets
• Component: PCB Plug-In Connector
• Connection Type: Field Connection
• Connector Amperage: 14 Amp
• Connector Voltage: 300 Volt
• Housing Material: PBT
• Insulation Resistance: >=10^8 Ohm
• Number of Positions: 6
• Number of Rows: 1
• Pitch/Row Spacing: 5.08 mm
• Series: OMNIMATE Signal
• Termination Type: Clamping Yoke
• Voltage Rating: 300 V
• Wire Size: 26 to 12 AWG
• Brand: Weidm ller
• Number of Contacts: 6
• Product Type: PCB Header
• Pitch: 5.08mm
• Connector Gender: Male
• For Use With: Clamping Yoke Connection
• Standards/Approvals: UL, RoHS, IEC 61984, IEC 60664-1, CSA
• Country of Origin: Czech Republic
