Description

Product Description

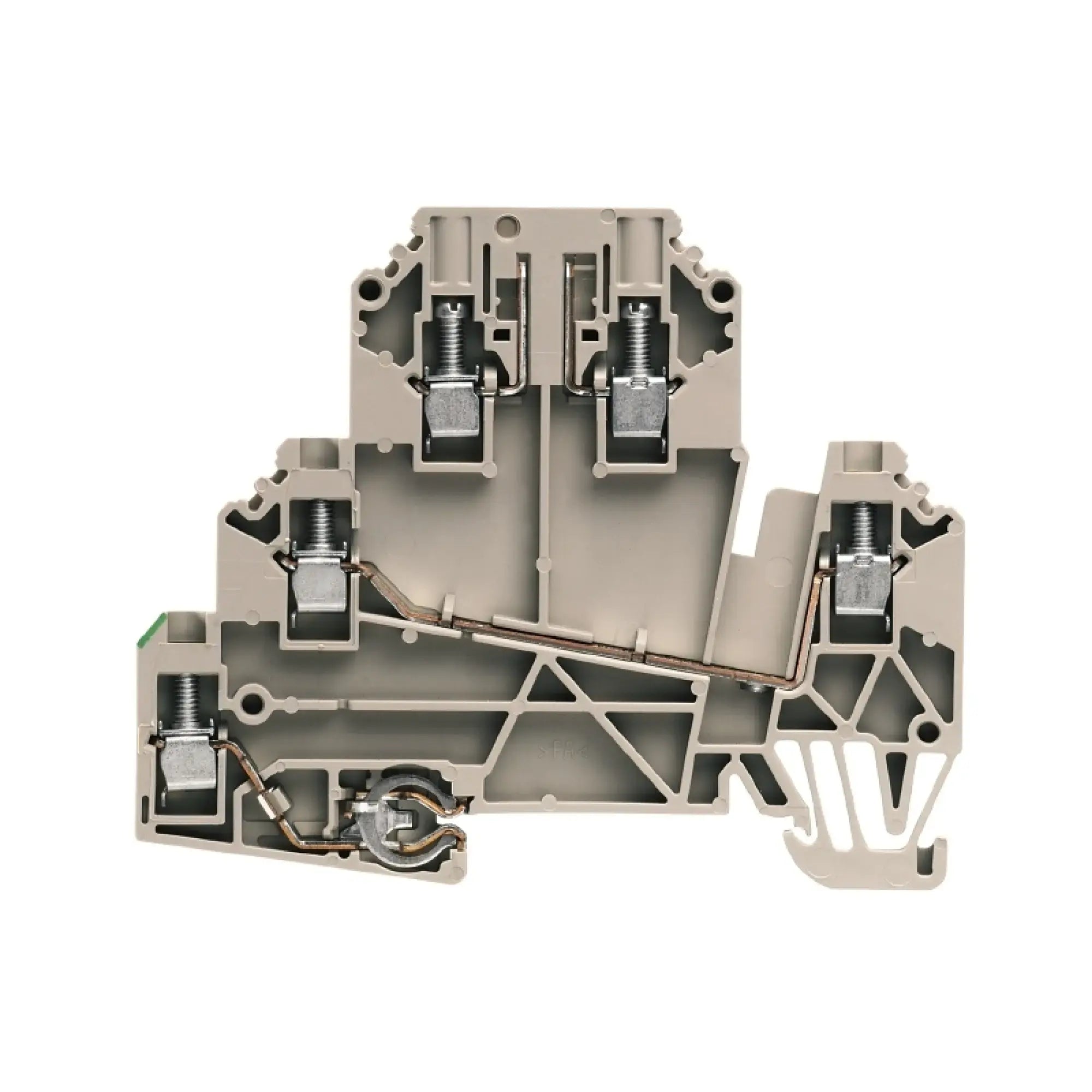

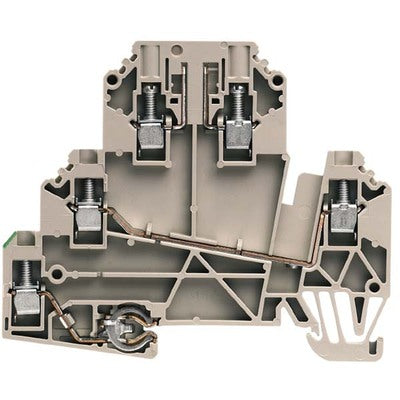

The Weidmuller 1833640000 WDK 2.5/TR-DU-PE/O TNHE is a test-disconnect terminal block designed for separating circuits during tests or measurements. It features a screw connection and accommodates wire sizes from 12-30 AWG.

  • Screw connection
  • Wire range: 12-30 AWG
  • Number of levels: 3

Product Highlights

This test-disconnect terminal block is ideal for use in applications requiring circuit separation for testing.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1833640000
Technical Specifications
Order No.
1833640000
Type
Disconnect, Feed Through, Isolated
GTIN (EAN)
4032248991129
Depth
66 mm
Depth (inches)
2.598 inch
Depth including DIN rail
67 mm
Height
80.5 mm
Height (inches)
3.169 inch
Width
5.1 mm
Width (inches)
0.201 inch
Net weight
17.36 g
Storage temperature
-25 00b0C...55 00b0C
Ambient temperature
-50 00b0C 202675 00b0C
Continuous operating temp., min.
-50 00b0C
Continuous operating temp., max.
120 00b0C
Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0
Screw connection
Screw connection
With PE connection
One end without connector
End cover plate required
Yes
Number of potentials
3
Number of levels
3
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
Yes
Mounting rail
TS 35
N-function
No
PE function
Yes
PEN function
No
Explosion-tested version
No
Open sides
right
Type of mounting
Snap-on
Connection type, additional connection
Screw connection
Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm 00b2
Clamping range, min.
0.5 mm 00b2
Clamping screw
M 3
Connection cross-section, stranded, max.
4 mm 00b2
Connection cross-section, stranded, min.
1.5 mm 00b2
Connection direction
on side
Gauge to IEC 60947-1
A2
Number of connections
5
Stripping length
8 mm
Tightening torque, max.
0.6 Nm
Tightening torque, min.
0.5 Nm
Type of connection
Screw connection
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 30
Wire connection cross section, finely stranded, max.
4 mm 00b2
Wire connection cross section, finely stranded, min.
0.5 mm 00b2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2.5 mm 00b2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.5 mm 00b2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm 00b2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.5 mm 00b2
Wire connection cross-section, solid core, max.
4 mm 00b2
Wire connection cross-section, solid core, min.
0.5 mm 00b2
Certificate No. (CSA)
200039-1057876
Current size C (CSA)
20 A
Voltage size C (CSA)
300 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
30 AWG
Rated cross-section
2.5 mm 00b2
Rated voltage
500 V
Rated DC voltage
500 V
Nominal current
24 A
Current at maximum wires
24 A
Volume resistance according to IEC 60947-7-x
1.33 m 03a9
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
0.77 W
Pollution severity
3
Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
12 AWG
Conductor size Factory wiring min. (UR)
30 AWG
Conductor size Field wiring max. (UR)
12 AWG
Conductor size Field wiring min. (UR)
30 AWG
Current size C (UR)
20 A
Voltage size C (UR)
300 V
Manufacturer
Weidm 00fcller
Current - IEC
24 A
Series
W
Voltage - IEC
690V
Packaging
Bulk
Current - UL
20 A
Part Status
Active
Voltage - UL
300V
Wire Gauge or Range - AWG
12-30 AWG
Disconnect Type
Component, Removable Plug
Wire Gauge or Range - mm 00b2
0.5-4mm 00b2
Number of Positions
5
Material - Insulation
Thermoplastic, Wemid
Terminal - Width
5.1mm
Material Flammability Rating
UL94 V-0
Main function
Terminal
Product series / family name
Klippon
Sub-range name
W series
Functions
Modular test-disconnect terminal block
Design
2-decks / levels
Poles
1 feed-through + 1 disconnect feed-through poles + protective-earth (2P+PE)
Rated current
24A (IEC)
Rated operating voltage (Ue)
(IEC) 500 V
Connection capacity
5-wires (3 screw + 2 screw)
Cross-section
for 1.5mm2...4mm2 (stranded)
Mounting mode
TS35 DIN rail mounting
Material
Wemid composite thermoplastic
Ambient air temperature for operation
-50...+120 00b0C
Thermal resistance
flame-resistant
ETIM code
EC000902
eClass code
27-14-11-26
Manufacturer product status
Commercialized
EAN code
4032248991129
Compliant with standard(s)
200039-1057876
Degree of pollution
3
P/N (Part Number)
1833640000
EAN
04032248991129
Designations
Disconnect terminal, Test-disconnect terminal
Number of Levels
3; 1 Grounded
Color
Beige
