Weidmuller 1807090000 zpe 4-2/4an

Brand: Weidmuller
SKU: 1807090000
Availability: In Stock

Ships same day if ordered by 12 pm
$15.82
$15.82
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

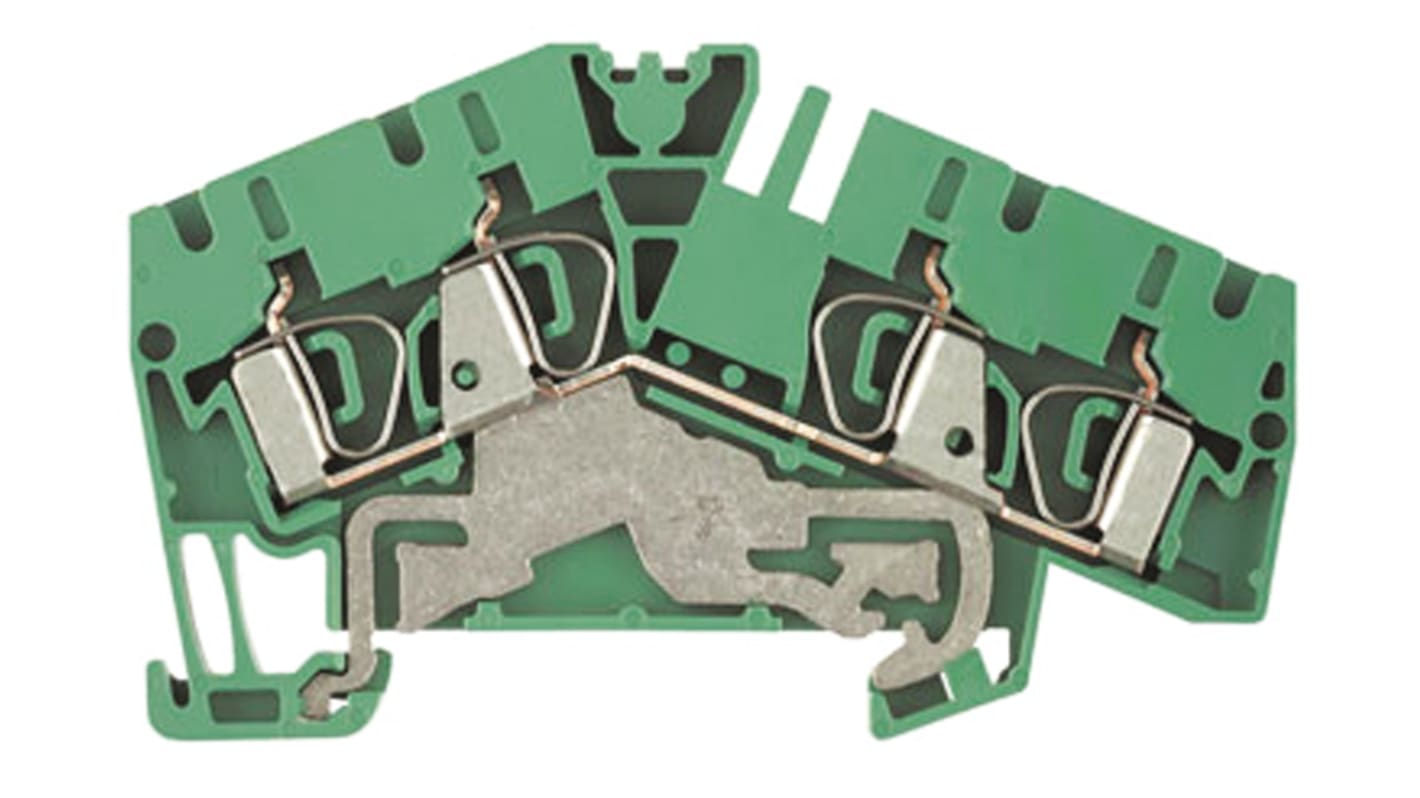

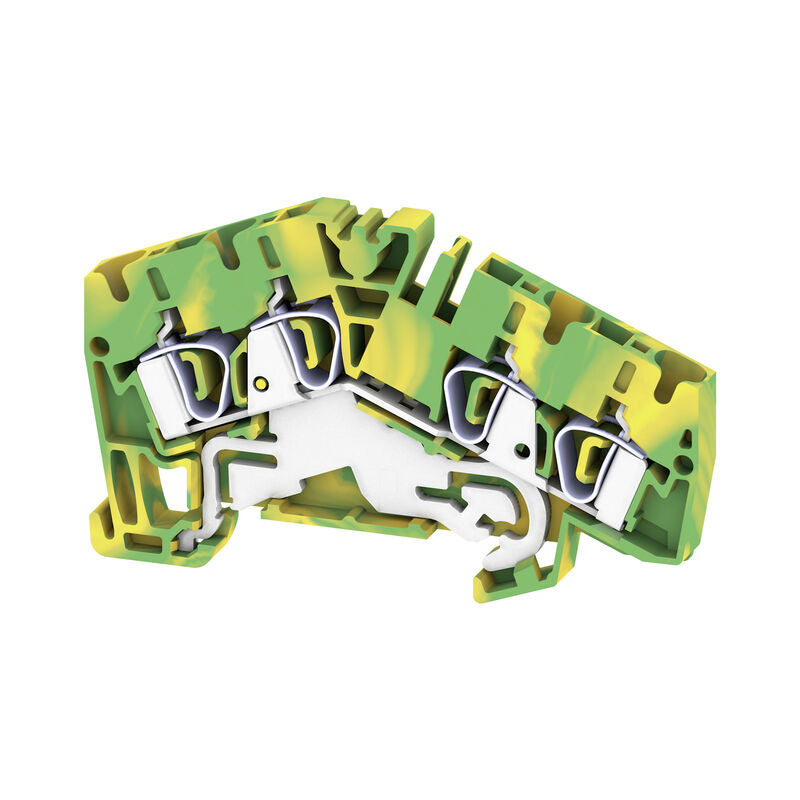

The Weidmuller 1807090000 ZPE 4-2/4AN is a Z-series PE terminal block with tension-clamp connection. It is designed for a rated cross-section of 4 mm

  • Rated cross-section: 4 mm
  • Tension-clamp connection
  • Snap-on mounting

Product Highlights

This terminal block provides a reliable grounding solution for various electrical applications, ensuring safety and efficient performance.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1807090000
  • Country of Origin: China
Technical Specifications
Order No.
1807090000
Type
ZPE 4-2/4AN
GTIN (EAN)
4032248329601
Depth
45.5 mm
Depth (inches)
1.791 inch
Depth including DIN rail
46 mm
Height
75 mm
Height (inches)
2.953 inch
Width
6.1 mm
Width (inches)
0.24 inch
Net weight
18.36 g
Storage temperature
-25 C...55 C
Ambient temperature
-50 C 75 C
Continuous operating temp., min.
-50 C
Continuous operating temp., max.
120 C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
Green, Yellow
UL 94 flammability rating
V-0
Certificate No. (ATEX)
DEMKO16ATEX1808U
Certificate No. (IECEX)
IECEXULD16.0036U
Wire cross section max. (ATEX)
6 mm
Wire cross section max. (IECEX)
6 mm
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
With PE connection
Yes
One end without connector
End cover plate required
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
4
Levels cross-connected internally
No
PE connection
Yes
Mounting rail
TS 35
PE function
Yes
PEN function
No
Explosion-tested version
Yes
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on
Connection type, additional connection
Tension-clamp connection
Blade size
0.6 x 3.5 mm
Clamping range, max.
6 mm
Clamping range, min.
0.13 mm
Connection cross-section, finely stranded, min.
0.13 mm
Connection cross-section, stranded, max.
4 mm
Connection cross-section, stranded, min.
0.13 mm
Connection direction
Inclined / angled
Gauge to IEC 60947-1
A3
Number of connections
4
Stripping length
10 mm
Wire connection cross section AWG, max.
AWG 10
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm
Wire connection cross section, finely stranded, min.
0.13 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
4 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.13 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.13 mm
Wire connection cross-section, solid core, max.
6 mm
Wire connection cross-section, solid core, min.
0.13 mm
Certificate No. (CSA)
200039-1152892
Wire cross section max. (CSA)
10 AWG
Wire cross section min. (CSA)
26 AWG
Standards
IEC 60947-7-2
Rated cross-section
4 mm
Rated voltage to adjoining terminal
800 V
Rated DC voltage
800 V
Volume resistance according to IEC 60947-7-x
1 m
Rated impulse withstand voltage to adjacent terminal
8 kV
Power loss in accordance with IEC 60947-7-x
1.02 W
Pollution severity
3
Certificate No. (cURus)
E60693
Certificate No. (UR)
E60693
Conductor size Factory wiring max. (cURus)
10 AWG
Conductor size Factory wiring max. (UR)
10 AWG
Conductor size Factory wiring min. (cURus)
26 AWG
Conductor size Factory wiring min. (UR)
26 AWG
Conductor size Field wiring max. (cURus)
10 AWG
Conductor size Field wiring max. (UR)
10 AWG
Conductor size Field wiring min. (cURus)
26 AWG
Conductor size Field wiring min. (UR)
26 AWG
ETIM 8.0
EC000901
ETIM 9.0
EC000901
ETIM 10.0
EC000901
ECLASS 14.0
27-25-01-03
ECLASS 15.0
27-25-01-03
Mfr. #
1807090000
Mfr.
Weidmuller
Category
Connectors, Interconnects
Terminal Blocks
Din Rail, Channel
Terminal - Width
6.1mm
Termination Style
Push In, Spring
Series
Z
Wire Gauge or Range - AWG
10-26 AWG
Packaging
Bulk
Wire Gauge or Range - mm
0.5-6mm
Part Status
Active
Material - Insulation
Thermoplastic, Wemid
Number of Positions
4
Material Flammability Rating
UL94 V-0
Stripping Length
10mm
RoHS Status
ROHS3 Compliant
ECCN
EAR99
Moisture Sensitivity Level (MSL)
Not Applicable
HTSUS
8536.69.8000
REACH Status
REACH Unaffected
Brand
Weidmuller
Product Type
PE Terminal
Voltage
800V
Minimum Wire Size AWG
26AWG
Cable CSA
4mm
Maximum Wire Size AWG
10AWG
Pitch
6.1mm
Termination Type
Clamp
Minimum Operating Temperature
-50C
Maximum Operating Temperature
120C
Hazardous Area Certification
No
Standards/Approvals
No
Product Code
1807090000
