Weidmuller 1788120000 hdc 06b tolu 1m20g

Product Description

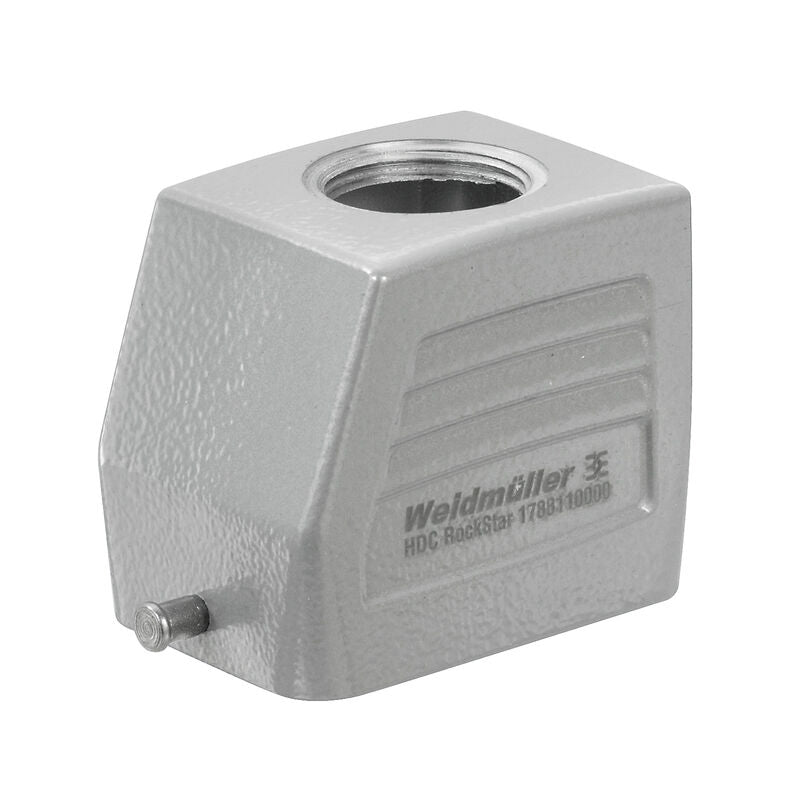

The Weidmuller 1788120000 HDC 06B TOLU 1M20G is a plug housing with cable entry from the top. It features an end-locking clamp on the lower side and conforms to the standard design. The enclosure provides IP65 protection when plugged in and accommodates M20 cable entries.

• Installation size: 3
• Protection degree: IP65 in plugged condition
• Size of cable entries: M 20

Product Highlights

This plug housing offers reliable protection and secure cable entry for industrial applications.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1788120000
• Country of Origin: Germany

Technical Specifications

• Order No.: 1788120000
• Type: Plug
• GTIN (EAN): 4032248205561
• Height: 52 mm
• Height (inches): 2.047 inch
• Width: 43 mm
• Width (inches): 1.693 inch
• Net weight: 124 g
• Limit temperature: -40 00b0C ... 125 00b0C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Chemical resistance - Substance: Acetone: Conditionally resistant
• Chemical resistance - Substance: Drilling oil: Resistant
• Chemical resistance - Substance: Diesel: Resistant
• Chemical resistance - Substance: Ethyl alcohol: Resistant
• Chemical resistance - Substance: Transmission oil: Resistant
• Chemical resistance - Substance: Hydraulic oil: Resistant
• Chemical resistance - Substance: Coolant: Resistant
• Chemical resistance - Substance: Petroleum benzine: Resistant
• Chemical resistance - Substance: Sweat: Resistant
• Chemical resistance - Substance: Premium gasoline: Conditionally resistant
• Chemical resistance - Substance: Water: Resistant
• Chemical resistance - Substance: UV: Unstable
• Chemical resistance - Substance: Ozone: Unstable
• Cable entry: w. thread
• Height of housing B: 52 mm
• Total length housing: 60 mm
• Width housing C: 43 mm
• Protection degree: IP65
• Surface finish: Powder coating
• Version: BG 3
• Clamp version: End-locking clamp
• Colour (RAL): RAL 7035
• Cover: without cover
• Design: Standard
• Design of housing: Cable entry from top
• Plug housing: Plug housing
• Design of locking system: End-locking clamp, lower side
• Installation size: 3
• Internal thread: M 20
• Number of cable entry on top: 1
• Number of cable entry sideways: 0
• Sealing: no sealing
• Size of cable entries: M 20
• Suitable for ModuPlug 00ae: No
• Tightening torque: 1.2 Nm
• Top part/bottom part/lid: upper part
• ETIM 8.0: EC000437
• ETIM 9.0: EC000437
• ETIM 10.0: EC000437
• ECLASS 14.0: 27-44-02-02
• ECLASS 15.0: 27-44-02-02
• Category: Connectors, Interconnects
• Heavy Duty Connectors: Heavy Duty Connector Housings, Hoods, Bases
• Lock Location: Locking Clip (1) on Base Bottom
• Manufacturer: Weidm 00fcller
• Thread Size: M20
• Series: RockStar 00ae
• Size / Dimension: 2.362" L x 1.693" W x 2.047" H (60.00mm x 43.00mm x 52.00mm)
• Packaging: Bulk
• Housing Color: Gray
• Part Status: Active
• Ingress Protection: IP65 - Dust Tight, Water Resistant
• Connector Type: Hood
• Housing Material: Aluminum, Die Cast
• Style: Top Entry
• Housing Finish: Powder Coated
• Size: 3
• MPN: HDC06B TOLU 1M20G 1788120000
• Brand: Weidm 00fcller
• UPC: Does not apply
• Country of Origin: Germany
• Part Number #: 1788120000
• Dimensions: 52 mm H x 43 mm W
• Entry Type: M20
• Specifications: IP65 Degree of Protection, End Locking Clamp on Lower Side, 1.2 N-m Tightening Torque, SZ 3
• Suitable For Use With: RockStar? NEMA Type 4X Plug Housing and HDC Enclosure
• Manufacturer Name: Weidmuller
• UNSPSC: 32151901
