Weidmuller 1772310000 VG M25 - K 68 Cable Gland 25 Pack

Product Description

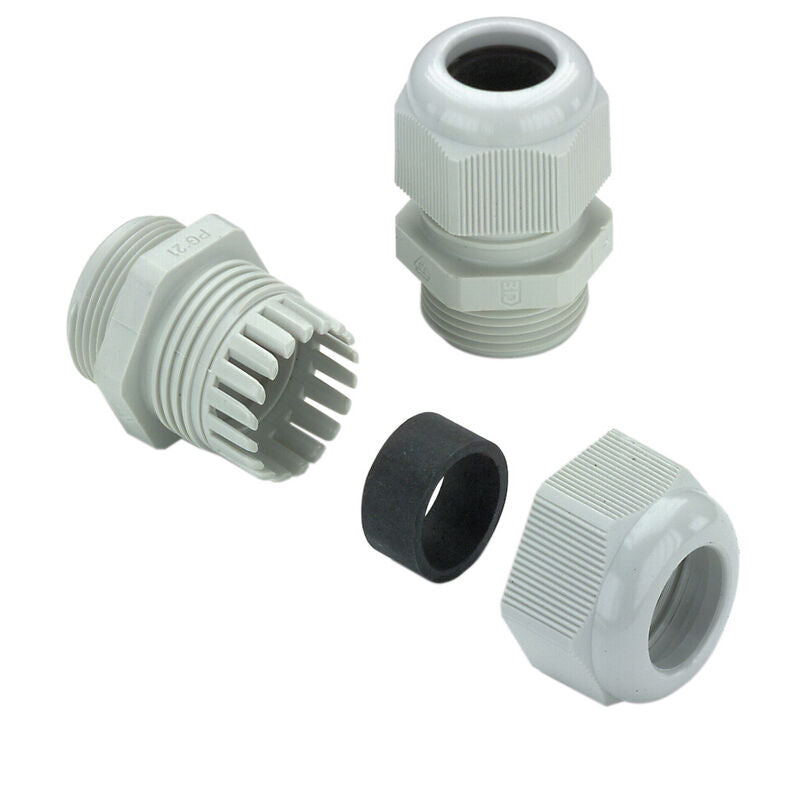

Weidmuller 1772310000 is a straight plastic cable gland VG M25 - K 68 made of polyamide 6 that provides sealing and strain relief for cables. It fits metric external thread M25 with a 10 mm thread length and accepts cable outer diameters from 13 mm to 18 mm. The gland features a CR seal insert, UL 94 V-2 rating, and protection degrees IP54, IP66, IP67 and IP68 (5 bar, 30 min). Operating temperature range: -40 °C to 100 °C.

• Straight VG K metric cable gland for M25 external thread with 10 mm thread length
• Seals and provides strain relief for cables with outer diameters 13 mm to 18 mm; CR seal insert (no silicone)
• Protection degrees IP54, IP66, IP67, IP68 (5 bar, 30 min); operating temperature -40 °C to 100 °C

Product Highlights

Polyamide (PA) M25 straight cable gland; cable OD 13–18 mm; IP54/IP66/IP67/IP68; CR seal insert; thread length 10 mm; 25 items per pack.

Product Information

Standard Information

• Brand: WEIDMULLER
• Manufacturer Part Number: 1772310000
• Country of Origin: Turkey

Technical Specifications

• Brand: Weidmuller
• Manufacturer Part Number: 1772310000
• Type: VG M25 - K 68
• Description: VG K (standard plastic cable gland), straight, metric
• Material: Polyamide 6 (PA)
• Basic Material: Polyamide 6
• External Thread: M25
• Thread Length: 10 mm
• Length: 47 mm
• Height: 37 mm
• Net Weight: 22.1 g
• AF Size: 33 mm
• Outer Cable Diameter Min: 13 mm
• Outer Cable Diameter Max: 18 mm
• Maximum Bundle Diameter: 18 mm
• Pitch of Thread: 1.5 mm
• Protection Degree: IP54, IP66, IP67, IP68 (5 bar, 30 min)
• Seal Insert: CR
• Silicone: No
• Operating Temperature Range: -40 °C to 100 °C
• Operating Temperature Range Min: -40 °C
• Operating Temperature Range Max: 100 °C
• Tightening Torque: 3.5 Nm
• Torque Cap Nut Min: 5 Nm
• Torque Cap Nut Max: 6 Nm
• Torque Connecting Adapter Min: 3 Nm
• Torque Connecting Adapter Max: 4 Nm
• Torque Lock Nut Min: 3 Nm
• Torque Lock Nut Max: 4 Nm
• UL 94 Flammability Rating: V-2
• Standards: EN/IEC 62444
• Approvals: RoHS, DNV, UL, cULus (certificate E-199260 - BM 15)
• Factory Pack Quantity: 25 items
• GTIN (EAN): 4032248129973
• Country of Origin: Turkey
• Product Category: Cable glands, strain reliefs & cord grips
• Product Type: Cable gland
