Description

Product Description

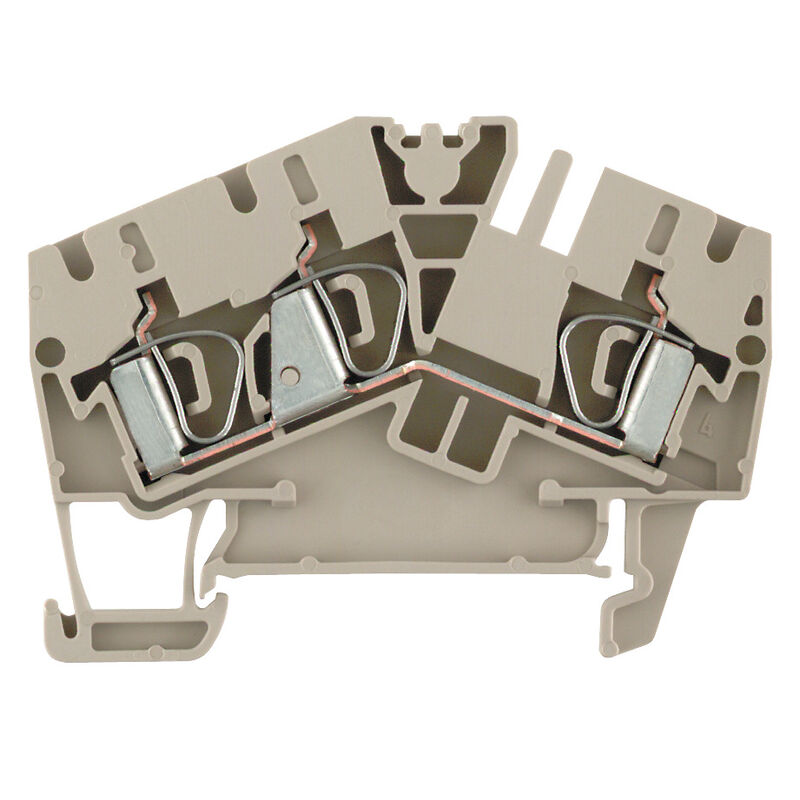

The Weidmuller 1770360000 ZDU 4-2/3AN is a feed-through terminal block with tension-clamp connection. This terminal block is designed for TS 35 mounting rail. It accommodates wire sizes from #26 to 10 AWG. The ZDU 4-2/3AN features a Wemid construction and is ideal for feed-through branch configurations.

  • Tension-clamp connection
  • Suitable for wire sizes #26...10 AWG
  • Mounts on TS 35 DIN rail

Product Highlights

The Weidmuller ZDU 4-2/3AN is a reliable feed-through terminal block for industrial applications.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1770360000
  • Country of Origin: Germany
Technical Specifications
Version
Feed-through terminal, Tension-clamp connection, 4 mm ², 800 V, 32 A, dark beige
Order No.
1770360000
Type
ZDU 4-2/3AN
GTIN (EAN)
4032248143191
Depth
45.5 mm
Depth (inches)
1.791 inch
Depth including DIN rail
46 mm
Height
61.5 mm
Height (inches)
2.421 inch
Width
6.1 mm
Width (inches)
0.24 inch
Net weight
10.21 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C 75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0
Certificate No. (ATEX)
DEMKO16ATEX1808U
Certificate No. (IECEX)
IECEXULD16.0036U
Max. voltage (ATEX)
440 V
Current (ATEX)
29 A
Wire cross section max. (ATEX)
6 mm ²
Max. voltage (IECEX)
440 V
Current (IECEX)
29 A
Wire cross section max. (IECEX)
6 mm ²
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
for plug-in cross-connector
Yes
One end without connector
Yes
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
3
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
Explosion-tested version
Yes
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on
Connection type, additional connection
Tension-clamp connection
Blade size
0.6 x 3.5 mm
Clamping range, max.
6 mm ²
Clamping range, min.
0.13 mm ²
Connection cross-section, finely stranded, min.
0.13 mm ²
Connection cross-section, stranded, max.
4 mm ²
Connection cross-section, stranded, min.
0.13 mm ²
Connection direction
Inclined / angled
Gauge to IEC 60947-1
A3
Number of connections
3
Stripping length
10 mm
Twin wire-end ferrules, max.
1.5 mm ²
Twin wire-end ferrules, min.
0.5 mm ²
Type of connection
Tension-clamp connection
Wire connection cross section AWG, max.
AWG 10
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm ²
Wire connection cross section, finely stranded, min.
0.13 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
4 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.13 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.13 mm ²
Wire connection cross-section, solid core, max.
6 mm ²
Wire connection cross-section, solid core, min.
0.13 mm ²
Certificate No. (CSA)
200039-1152892
Current size B (CSA)
33 A
Current size C (CSA)
33 A
Current size D (CSA)
5 A
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
10 AWG
Wire cross section min. (CSA)
26 AWG
Standards
IEC 60947-7-1
Rated cross-section
4 mm ²
Rated voltage
800 V
Rated DC voltage
800 V
Nominal current
32 A
Current at maximum wires
38 A
Volume resistance according to IEC 60947-7-x
1 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
1.02 W
Pollution severity
3
Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
10 AWG
Conductor size Factory wiring min. (UR)
26 AWG
Conductor size Field wiring max. (UR)
10 AWG
Conductor size Field wiring min. (UR)
26 AWG
Current size C (UR)
33 A
Voltage size C (UR)
600 V
ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
Clamping Type
Tension Clamp
Series
Z Series
Rail Type
TS 35
Function
Feed Through
Configuration
Branch
Wire Size
#26...10 AWG
Current
33 A
Voltage
600 V
Color/Material
Beige Wemid
Special Requirements
250 V
Wire Entry
35° Top Entry
Rated Voltage (UL)
600 V
Rated Current (UL)
33 A
Wire Size (UL)
#26...10 AWG
Rated Voltage (CSA)
600 V
Rated Current (CSA)
33 A
Wire Size (CSA)
#26...10 AWG
Rated Voltage (VDE)
800 V
Rated Current (VDE)
32 A
Wire Size (VDE)
4 mm ²
Width/Length/Height mm (in.)
6/61.5/46 (.24"/2.42"/1.81")
Insulation Stripping Length mm (in.)
10 (.39")
Brand
Weidmuller
MPN
1770360000
