Weidmuller Weidmuller 1753290000 WDK 1.5/R3.5
Weidmuller Weidmuller 1753290000 WDK 1.5/R3.5

Weidmuller 1753290000 WDK 1.5/R3.5

Brand: Weidmuller
SKU: 1753290000
Availability: Out Of Stock
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

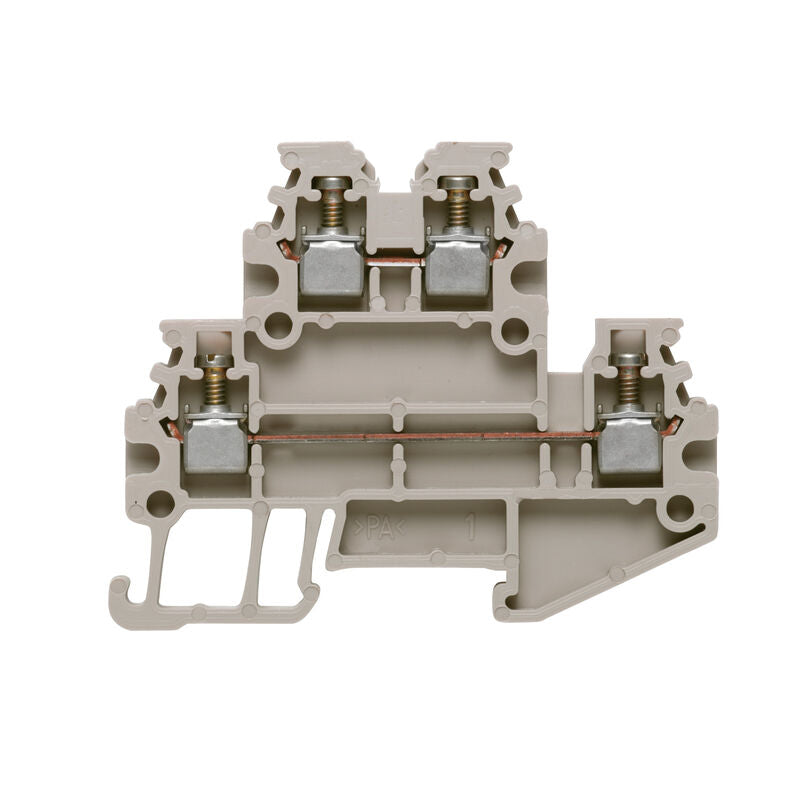

The Weidmuller 1753290000 WDK 1.5/R3.5 is a multi-tier modular terminal block with screw connections. This dark beige terminal block features 4 connections across 2 levels. Constructed from Wemid material with a V-0 flammability rating, it is designed for TS 15 mounting rails.

  • Screw connection
  • Number of connections: 4
  • UL 94 V-0 flammability rating

Product Highlights

The Weidmuller WDK 1.5/R3.5 terminal block ensures reliable connectivity in a compact, multi-tiered design.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1753290000
Technical Specifications
Order No.
1753290000
Type
WDK 1.5/R3.5
GTIN (EAN)
4032248020751
Depth
37.5 mm
Depth (inches)
1.476 inch
Depth including DIN rail
38.5 mm
Height
46.5 mm
Height (inches)
1.831 inch
Width
3.5 mm
Width (inches)
0.138 inch
Net weight
3.77 g
Storage temperature
-25 0C...55 0C
Ambient temperature
-60 0C 85 0C
Continuous operating temp., min.
-60 0C
Continuous operating temp., max.
130 0C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0
Certificate No. (ATEX)
DEMKO15ATEX1346U
Certificate No. (IECEX)
IECEXULD15.0003U
Max. voltage (ATEX)
275 V
Current (ATEX)
15 A
Wire cross section max. (ATEX)
1.5 mm 2
Max. voltage (IECEX)
275 V
Current (IECEX)
15 A
Wire cross section max. (IECEX)
1.5 mm 2
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
Screw connection
Yes
for plug-in cross-connector
One end without connector
End cover plate required
Yes
Number of potentials
2
Number of levels
2
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 15
N-function
No
PE function
No
PEN function
No
Explosion-tested version
Yes
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on
Connection type, additional connection
Screw connection
Blade size
0.4 x 2.5 mm
Clamping range, max.
1.5 mm 2
Clamping range, min.
0.13 mm 2
Clamping screw
M 2
Connection cross-section, finely stranded, min.
0.13 mm 2
Connection cross-section, stranded, max.
1.5 mm 2
Connection cross-section, stranded, min.
0.13 mm 2
Connection direction
on side
Gauge to IEC 60947-1
A1
Number of connections
4
Stripping Length
7 mm
Tightening torque, max.
0.3 Nm
Tightening torque, min.
0.3 Nm
Type of connection
Screw connection
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
1.5 mm 2
Wire connection cross section, finely stranded, min.
0.13 mm 2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
1.5 mm 2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.13 mm 2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
0.5 mm 2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.13 mm 2
Wire connection cross-section, solid core, max.
1.5 mm 2
Wire connection cross-section, solid core, min.
0.13 mm 2
Certificate No. (CSA)
12400-398
Current size D (CSA)
10 A
Voltage size D (CSA)
300 V
Wire cross section max. (CSA)
14 AWG
Wire cross section min. (CSA)
26 AWG
TS 15 offset
13.5 mm
Standards
IEC 60947-7-1
Rated cross-section
1.5 mm 2
Rated voltage
400 V
Rated DC voltage
400 V
Nominal current
16 A
Current at maximum wires
16 A
Volume resistance according to IEC 60947-7-x
1.83 m
Rated impulse withstand voltage
4 kV
Power loss in accordance with IEC 60947-7-x
0.56 W
Pollution severity
3
Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
14 AWG
Conductor size Factory wiring min. (UR)
26 AWG
Conductor size Field wiring max. (UR)
14 AWG
Conductor size Field wiring min. (UR)
26 AWG
Current size B (UR)
15 A
Current size D (UR)
10 A
Voltage size B (UR)
300 V
Voltage size D (UR)
300 V
ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-02
ECLASS 15.0
27-25-01-02
Material
Thermoplastic, Wemid
Material Flammability Rating
UL94 V-0
Terminal - Width
3.5mm
Termination Style
Screw
Amperage Rating
16 A
Connection Type
Screw
Mounting Type
Snap-Fit
Series
W Series
Temperature Rating
-50 to 120 deg C
Terminal Size
M2
Torque Rating
0.3 N-m
Voltage Rating
400 V
Wire Size
1.5 sq-mm
Wire Strip Length
7 mm
Category
Connectors, Interconnects
Terminal Blocks
Din Rail, Channel
Current - IEC
16 A
Manufacturer
Weidm ller
Voltage - IEC
400V
Packaging
Bulk
Wire Gauge or Range - AWG
14-26 AWG
Part Status
Active
Wire Gauge or Range - mm 2
0.5-1.5mm 2
Feed Through
Feed Through
Number of Positions
4
