Weidmuller Weidmuller 1730940000 WDU 2.5N/600UL
Weidmuller Weidmuller 1730940000 WDU 2.5N/600UL

Weidmuller 1730940000 WDU 2.5N/600UL

Brand: Weidmuller
SKU: 1730940000
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

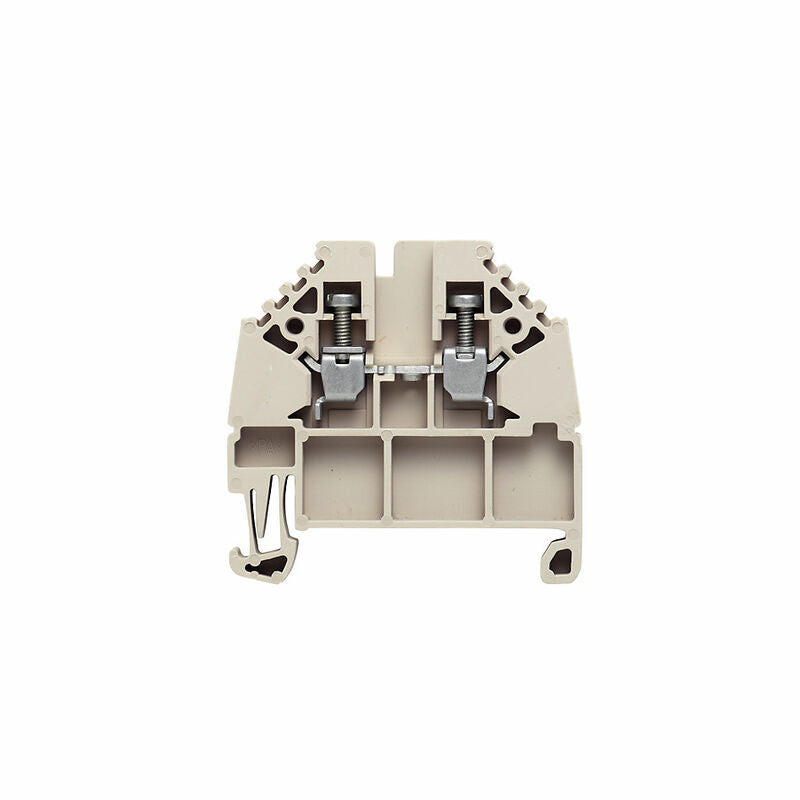

The Weidmuller 1730940000 WDU 2.5N/600UL is a feed-through terminal block with screw connections. This dark beige terminal block has 2 connections and is designed for 2.5 mm² wires, supporting 24 A at 800 V. It provides a reliable connection point for various electrical components, ensuring optimal signal transmission.

  • Screw connection
  • Suitable for joining and connecting conductors
  • User-friendly design and easy installation

Product Highlights

The Weidmuller feed-through terminal block ensures secure and efficient electrical connections for various applications.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1730940000
  • Country of Origin: RO
Technical Specifications
Version
Screw connection
Order No.
1730940000
Type
WDU 2.5N/600UL
GTIN (EAN)
4008190388775
Depth
42.7 mm
Depth (inches)
1.681 inch
Depth including DIN rail
43.5 mm
Height
44 mm
Height (inches)
1.732 inch
Width
5.1 mm
Width (inches)
0.201 inch
Net weight
5.85 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…85 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
130 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
Cradle to gate: 0,076 kg CO2 eq.
Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0
for screwable cross-connection
Yes
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No
Cross-section for connected wire, solid, two clampable wires, max.
1.5 mm²
Cross-section for connected wire, solid, two clampable wires, min.
0.5 mm²
Cross-section for connected wire, stranded, two clampable wires, max.
1.5 mm²
Cross-section for connected wire, stranded, two clampable wires, min.
0.5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.
1.5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
0.5 mm²
Explosion-tested version
No
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on
Connection type, additional connection
Screw connection
Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0.05 mm²
Clamping screw
M 2.5
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
1.5 mm²
Connection direction
on side
Gauge to IEC 60947-1
A3
Number of connections
2
Stripping length
10 mm
Tightening torque, max.
0.6 Nm
Tightening torque, min.
0.4 Nm
Torque level with DMS electric screwdriver
1
Twin wire-end ferrules, max.
1.5 mm²
Twin wire-end ferrules, min.
0.5 mm²
Type of connection
Screw connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.5 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0.5 mm²
Certificate No. (CSA)
12400-380
Current size C (CSA)
20 A
Voltage size C (CSA)
600 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
26 AWG
Standards
IEC 60947-7-1
Rated cross-section
2.5 mm²
Rated voltage
800 V
Rated DC voltage
800 V
Nominal current
24 A
Current at maximum wires
32 A
Volume resistance according to IEC 60947-7-x
1.33 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
0.77 W
Pollution severity
3
Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
12 AWG
Conductor size Factory wiring min. (UR)
22 AWG
Conductor size Field wiring max. (UR)
12 AWG
Conductor size Field wiring min. (UR)
22 AWG
Current size B (UR)
25 A
Current size C (UR)
25 A
Voltage size B (UR)
600 V
Voltage size C (UR)
600 V
ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
Mfr. #
1730940000
Manufacturer
Weidmuller
Material - Insulation
Thermoplastic, Wemid
Terminal - Width
5.1mm
Part Status
Active
Wire Gauge or Range - AWG
12-26 AWG
Wire Gauge or Range - mm²
0.5-4mm²
Series
W
Current - IEC
24 A
Voltage - IEC
800V
Current - UL
25 A
Voltage - UL
600V
Termination Style
Screw
Body Orientation
Straight
Supplier
Weidmuller
Part No
1730940000
Unit of Measure
Per Each
RoHS
Yes
HTS
85369010
COO
RO
ECCN
EAR99
Terminal Block Voltage Rating
800 Volt
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Amperage
24 Amp
Terminal Block Width
5.1 mm
Component
Terminal Block
Sub Component
Feed-Through Terminal Block
Material Flammability Rating
UL94 V-0
