Description

Product Description

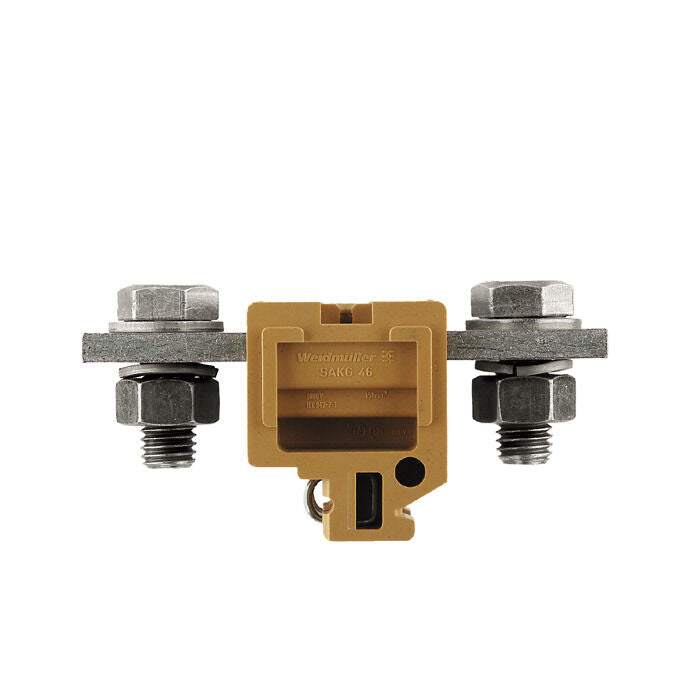

The Weidmuller 170620000 SAKG 46 II is a feed-through terminal block with a threaded stud connection. It supports a rated cross-section of 150 mm², a nominal current of 309 A, and a rated voltage of 1,000 V. Designed for direct mounting on TS 32 mounting rails, this terminal block features two connections and is made from KrG basic material.

  • Feed-through terminal block
  • Features a threaded stud connection
  • Supports a rated cross-section of 150 mm²

Product Highlights

Feed-through terminal block with threaded stud connection, supporting 150 mm² cross-section and 309 A current.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 170620000
Technical Specifications
Version
Stud terminal
Order No.
0170620000
Type
SAKG 46 II
GTIN (EAN)
4008190170592
Depth
57 mm
Depth (inches)
2.244 inch
Height
106 mm
Height (inches)
4.173 inch
Width
46 mm
Width (inches)
1.811 inch
Net weight
307.648 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-60 °C…85 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C
RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
999cd67e-471e-4085-8dba-1342fcea86de
Basic material
KrG
Colour
medium yellow
UL 94 flammability rating
V-0
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 32
N-function
No
PE function
No
PEN function
No
Explosion-tested version
No
Installation advice
Direct mounting
Number of similar terminals
1
Open sides
Open
Type of mounting
Snap-on
Connection type, additional connection
Threaded stud connection
Cable lug to DIN 46234
10...185 mm²
Cable lug to DIN 46235
25 - 150 mm²
Clamping range, max.
185 mm²
Clamping range, min.
10 mm²
Clamping screw
M 12
Connection cross-section, finely stranded, min.
10 mm²
Connection cross-section, stranded, max.
185 mm²
Connection cross-section, stranded, min.
10 mm²
Connection direction
on side
Number of connections
2
Stripping length
28 mm
Tightening torque, max.
31 Nm
Tightening torque, min.
14 Nm
Type of connection
Threaded stud connection
Wire connection cross section AWG, max.
AWG 350 MCM
Wire connection cross section AWG, min.
AWG 8
Wire connection cross section, finely stranded, max.
185 mm²
Wire connection cross section, finely stranded, min.
10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
10 mm²
Wire connection cross-section, solid core, max.
185 mm²
Wire connection cross-section, solid core, min.
10 mm²
Certificate No. (CSA)
12400-199
Current size C (CSA)
365 A
Voltage size C (CSA)
600 V
Wire cross section max. (CSA)
300 kcmil
Standards
IEC 60947-7-1
Rated cross-section
150 mm²
Rated voltage
1,000 V
Rated DC voltage
1,000 V
Nominal current
309 A
Current at maximum wires
353 A
Volume resistance according to IEC 60947-7-x
0.1 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
9.89 W
Pollution severity
3
Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
300 kcmil
Conductor size Factory wiring min. (UR)
0000 AWG
Conductor size Field wiring max. (UR)
300 kcmil
Conductor size Field wiring min. (UR)
0000 AWG
Current size C (UR)
285 A
Voltage size C (UR)
600 V
