Description

Product Description

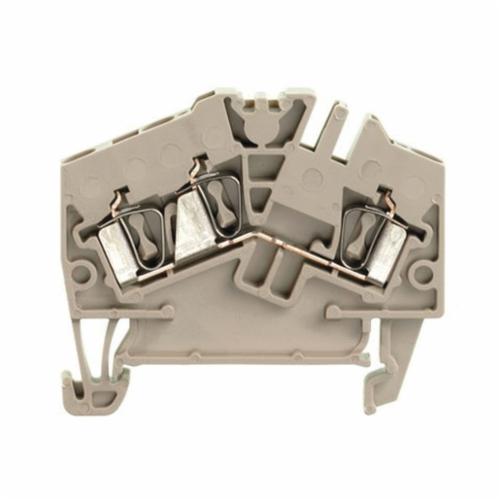

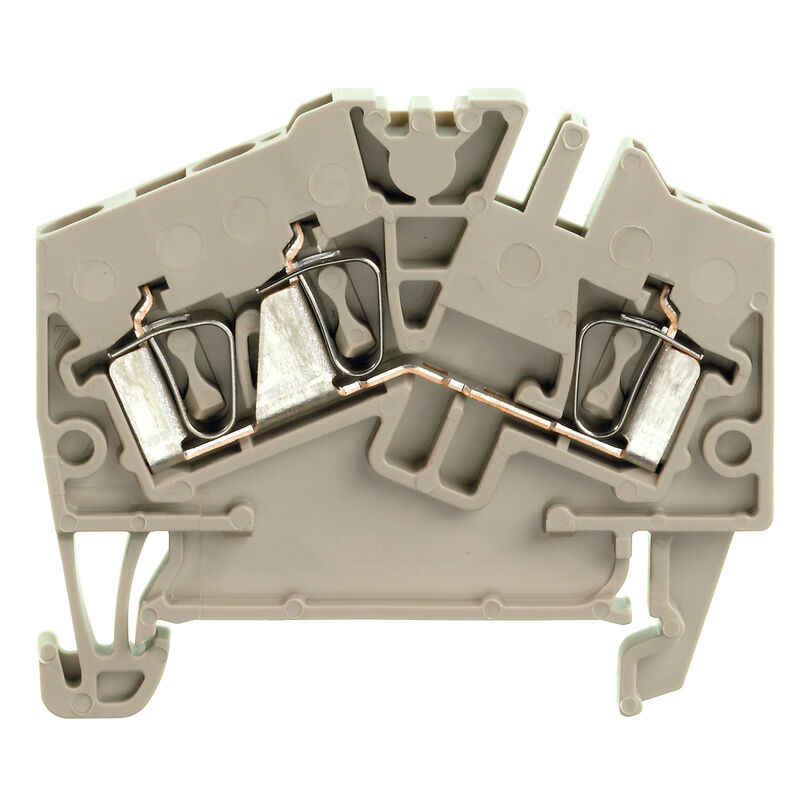

The Weidmuller 1706010000 ZDU 2.5-2/3AN is a feed-through terminal with a tension-clamp connection. This terminal block is designed for 2.5 mm² wires and supports 800 V and 24 A. It offers less space and spacious labeling area, integrated test point and cross-connection functionality within the Z series.

  • Tension-clamp connection
  • Integrated test point
  • Snap-on mount for easy installation on TS 35 mounting rail

Product Highlights

The Weidmuller ZDU 2.5-2/3AN terminal block ensures reliable connections in industrial applications. Its compact design and cross-connection capabilities make it a versatile choice for various wiring needs.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1706010000
  • Country of Origin: CZ
Technical Specifications
Version
Tension-clamp connection
Order No.
1706010000
Type
Feed Through
GTIN (EAN)
4008190915377
Depth
43 mm
Depth (inches)
1.693 inch
Depth including DIN rail
44 mm
Height
50.5 mm
Height (inches)
1.988 inch
Width
5.1 mm
Width (inches)
0.201 inch
Net weight
6.7 g
Storage temperature
-25 00b0C...55 00b0C
Ambient temperature
-50 00b0C 202675 00b0C
Continuous operating temp., min.
-50 00b0C
Continuous operating temp., max.
120 00b0C
Basic material
Wemid
UL 94 flammability rating
V-0
Certificate No. (ATEX)
DEMKO16ATEX1808U
Certificate No. (IECEX)
IECEXULD16.0036U
Max. voltage (ATEX)
550 V
Current (ATEX)
21 A
Wire cross section max. (ATEX)
4 mm 00b2
Max. voltage (IECEX)
550 V
Current (IECEX)
21 A
Wire cross section max. (IECEX)
4 mm 00b2
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
for plug-in cross-connector
One end without connector
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
3
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
Explosion-tested version
Yes
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on
Connection type, additional connection
Tension-clamp connection
Blade size
0.6 x 3.5 mm
Clamping range, max.
2.5 mm 00b2
Clamping range, min.
0.13 mm 00b2
Connection cross-section, finely stranded, min.
0.13 mm 00b2
Connection cross-section, stranded, max.
0.5 mm 00b2
Connection cross-section, stranded, min.
0.13 mm 00b2
Connection direction
Inclined / angled
Gauge to IEC 60947-1
A2
Number of connections
3
Stripping length
10 mm
Type of connection
Tension-clamp connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
2.5 mm 00b2
Wire connection cross section, finely stranded, min.
0.13 mm 00b2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2.5 mm 00b2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.13 mm 00b2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1.5 mm 00b2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.13 mm 00b2
Wire connection cross-section, solid core, max.
2.5 mm 00b2
Wire connection cross-section, solid core, min.
0.13 mm 00b2
Certificate No. (CSA)
200039-1194786
Current size C (CSA)
23 A
Voltage size C (CSA)
600 V
Wire cross section max. (CSA)
14 AWG
Wire cross section min. (CSA)
26 AWG
TS 35 offset
25.5 mm
Standards
ATEX-KEMA, CE Certified, CSA Certified, DB, CURUSEX, EAC, IEC EX, KEMAEUR, RJ, RoHS Complaint, UL94 V-0 Flammability Rating
Rated cross-section
2.5 mm 00b2
Rated voltage
800 V
Rated DC voltage
800 V
Nominal current
24 A
Current at maximum wires
24 A
Volume resistance according to IEC 60947-7-x
1.33 m 03a9
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
0.77 W
Pollution severity
3
Certificate No. (cURus)
E60693
ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
Amperage
20 Amp
Conductor Size
12 AWG
Connection Type
Tension Clamp At Inclined / Angled
Current
24 Amp
Material
Wemid
Mounting Type
Snap-On
Voltage
800 Volt
Wire Size
26 to 12 AWG
Brand
Weidmuller
12-Digit UPC
008190915371
Current - IEC
24 A
Manufacturer
Weidmuller, USA
Voltage - IEC
800V
Series
ZDU
Current - UL
20 A
Part Status
Active
Wire Gauge or Range - AWG
12-26 AWG
Wire Gauge or Range - mm 00b2
0.5-4mm 00b2
Number of Positions
3
Number of Levels
1
Material - Insulation
Thermoplastic, Wemid
Terminal - Width
5.1mm
Material Flammability Rating
UL94 V-0
Termination Style
Push In, Spring
No. of Positions
3Positions
Wire Size AWG Min
26AWG
Wire Size AWG Max
12AWG
Conductor Area CSA
4mm 00b2
Wire Connection Method
Clamp
Rated Current
20A
Rated Voltage
600V
Product Range
None
SVHC
No SVHC (23-Jan-2024)
Dimensions
1.988 in H x 0.201 in W x 1.693 in D
Temperature Rating
-50 to 120 deg C
Terminal Type
Feed-Through
UNSPSC
39121410
Wire Strip Length
10 mm
Amperage Rating
24 A
Voltage Rating
800 VAC
Mfr. #
1706010000
Mfr.
Weidmuller
