Weidmuller 1662550000 hdc 24b tolu 1pg29g pg29

Product Description

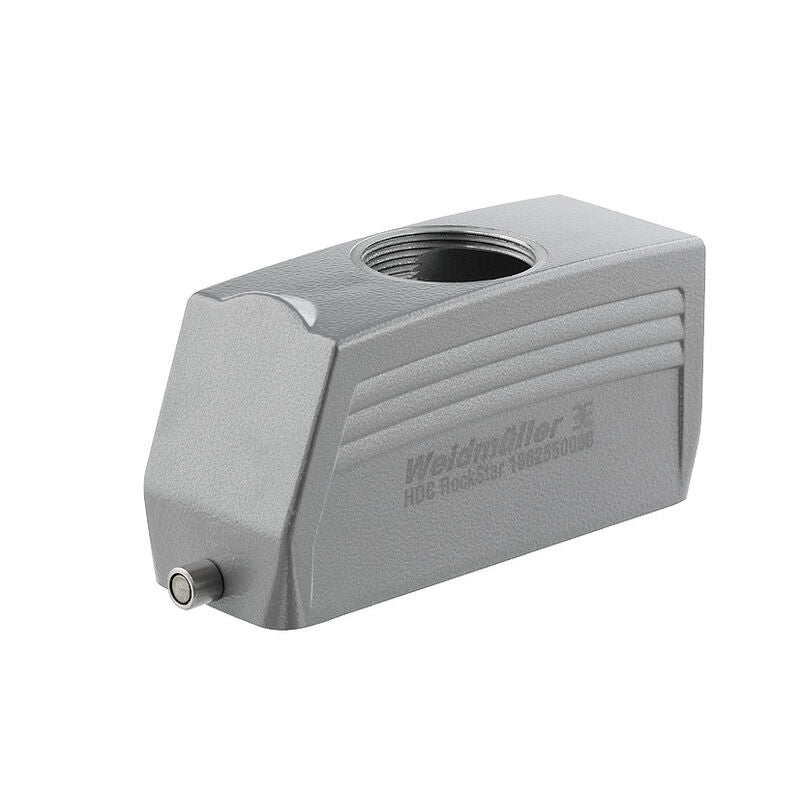

The Weidmuller 1662550000 HDC 24B TOLU 1PG29G is a plug housing with cable entry from the top. Features include an end-locking clamp on the lower side and a standard design. It has an installation size of 8 and a protection degree of IP65 when plugged in. The size of cable entries is PG 29.

• HDC enclosures
• Installation size: 8
• Protection degree: IP65, in plugged condition

Product Highlights

Plug housing with IP65 protection, end-locking clamp, and PG 29 cable entries.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1662550000
• Country of Origin: CN

Technical Specifications

• Order No.: 1662550000
• Type: Plug
• GTIN (EAN): 4008190419073
• Installation size: 8
• Protection degree: IP65
• Cable entry: w. thread
• Clamp version: End-locking clamp
• Colour (RAL): RAL 7035
• Cover: without cover
• Design: Standard
• Design of housing: Cable entry from top, Plug housing
• Design of locking system: End-locking clamp, lower side
• Internal thread: PG 29
• Number of cable entry on top: 1
• Number of cable entry sideways: 0
• Sealing: no sealing
• Size of cable entries: PG 29
• Suitable for ModuPlug: No
• Top part/bottom part/lid: upper part
• Chemical resistance Acetone: Conditionally resistant
• Chemical resistance Drilling oil: Resistant
• Chemical resistance Diesel: Resistant
• Chemical resistance Ethyl alcohol: Resistant
• Chemical resistance Transmission oil: Resistant
• Chemical resistance Hydraulic oil: Resistant
• Chemical resistance Coolant: Resistant
• Chemical resistance Petroleum benzine: Resistant
• Chemical resistance Sweat: Resistant
• Chemical resistance Premium gasoline: Conditionally resistant
• Chemical resistance Water: Resistant
• Chemical resistance UV: Unstable
• Chemical resistance Ozone: Unstable
• Manufacturer: Weidm ller
• Thread Size: PG29
• Series: RockStar
• Housing Color: Gray
• Part Status: Active
• Ingress Protection: IP65 - Dust Tight, Water Resistant
• Connector Type: Hood
• Housing Material: Aluminum, Die Cast
• Style: Top Entry
• Housing Finish: Powder Coated
• Size: 8
• Brand: Weidmuller
• Part Number #: 1662550000
• Dimensions: 135.5 mm L x 45.5 mm W x 61 mm H
• Entry Type: PG29
• Suitable For Use With: HDC 24B Insert and Base
• Manufacturer Name: Weidmuller
• Connector protection: IP65
• Component: HDC Enclosures
• Serie: HDC enclosures
• Type of housing: Plug case
• Position cable feed: Top
• Position of the shackle: Base unit
• With cable screw gland: No
• Housing material: Aluminium
• With interlocking device: Yes
• Type of locking: Single locking lever
• Inflammability class of insulation material according to UL94: Other
• Operating temperature ( C): -40 - 125
• EMC-version: No
• Corrosion resistant: Yes
• UV resistant: Yes
• Degree of protection (IP), mounted: IP65
• Coating housing: Powder coating
• Housing colour: Grey
• Material adaptor plate: Aluminium
• Mounting method of the cable gland: PG
• Number of openings: 1
• Number of conduit inlets: 0
