Weidmuller 1627860000 terminal block tools & accessories ZQV 6/3

Product Description

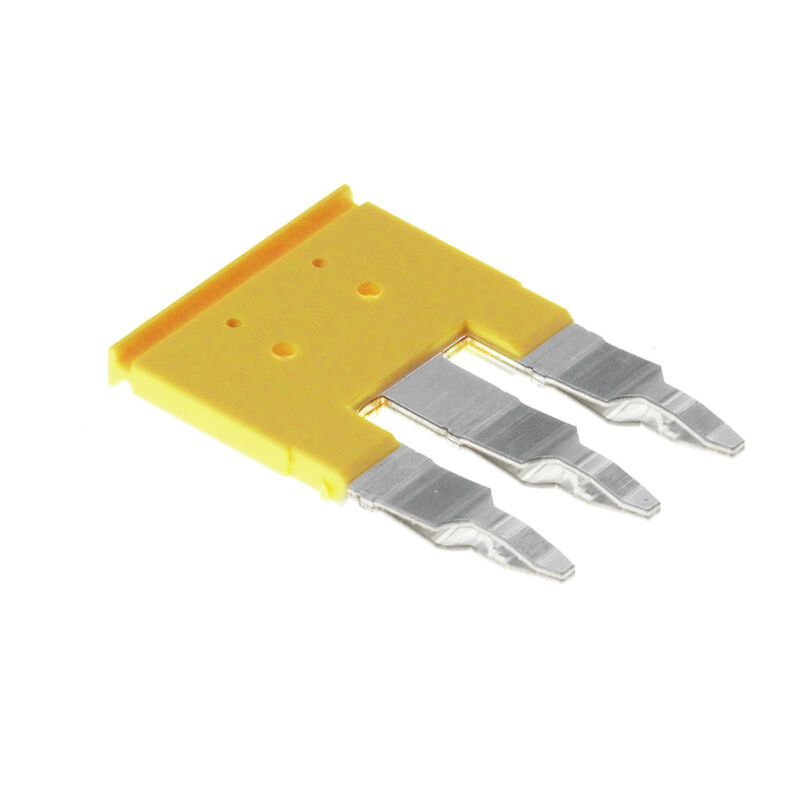

The Weidmuller 1627860000 is a terminal block tool and accessory, specifically the ZQV 6/3 GE cross-connector with a 41 A nominal current. It is designed for use with Z Series Terminals. Features include a V-0 UL 94 flammability rating and direct mounting installation.

• ZQV 6/3 GE type
• 8.1 mm pitch
• 41 A rated current

Product Highlights

This Weidmuller cross connector is suitable for Z Series terminal blocks. It features Wemid material and a flammability rating of V-0.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1627860000
• Country of Origin: DE

Technical Specifications

• Version: For the terminals
• Order No.: 1627860000
• Type: ZQV 6/3 GE
• GTIN (EAN): 4008190200435
• Depth: 33.96 mm
• Depth (inches): 1.337 inch
• Height: 22.4 mm
• Height (inches): 0.882 inch
• Width: 3.1 mm
• Width (inches): 0.122 inch
• Net weight: 4.05 g
• Storage temperature: -25 °C...55 °C
• Ambient temperature: -60 °C 85 °C
• Continuous operating temp., min.: -60 °C
• Continuous operating temp., max.: 130 °C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Basic material: Wemid
• Colour: yellow
• UL 94 flammability rating: V-0
• Explosion-tested version: Yes
• Installation advice: Direct mounting
• Type of fixing: Plugged
• Pitch in mm (P): 8.1 mm
• Number of poles: 3
• Rated voltage: 400 V
• Nominal current: 41 A
• ETIM 8.0: EC000489
• ETIM 9.0: EC000489
• ETIM 10.0: EC000489
• ECLASS 14.0: 27-25-03-03
• ECLASS 15.0: 27-25-03-03
• Dimensions: 22.4 mm H x 3.1 mm W x 33.96 mm D
• Suitable For Use With: Z Series Terminals
• Material: Wemid
• Manufacturer Name: Weidmuller
• UNSPSC: 39121410
• Brand: WEIDMULLER
• MPN: 1627860000
• UPC: Does not apply
• Accessory Type: Jumper Bar
• Product Range: Z Series
• SVHC: No SVHC (23-Jan-2024)
