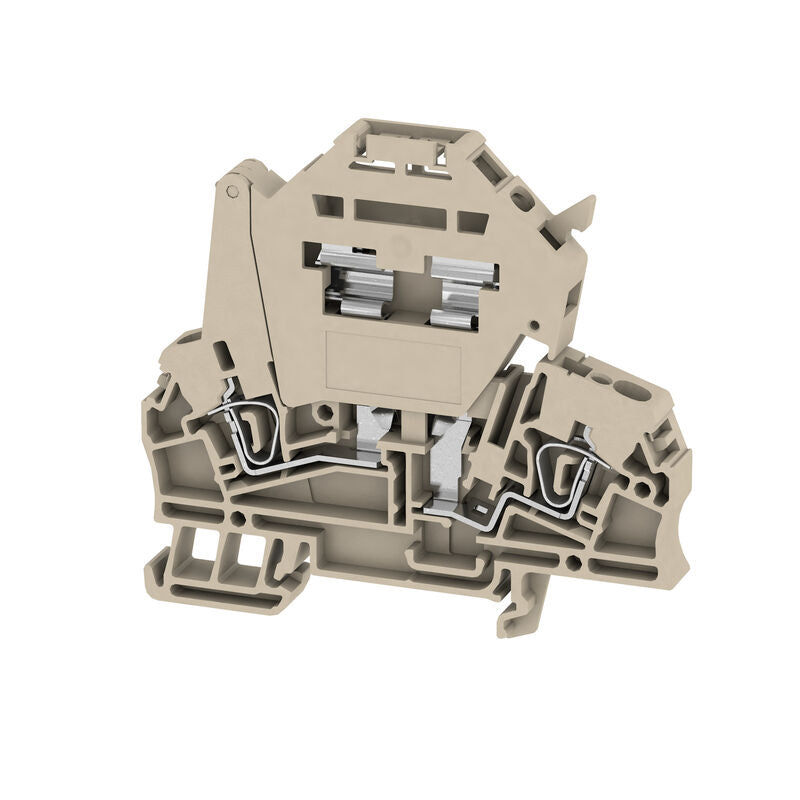

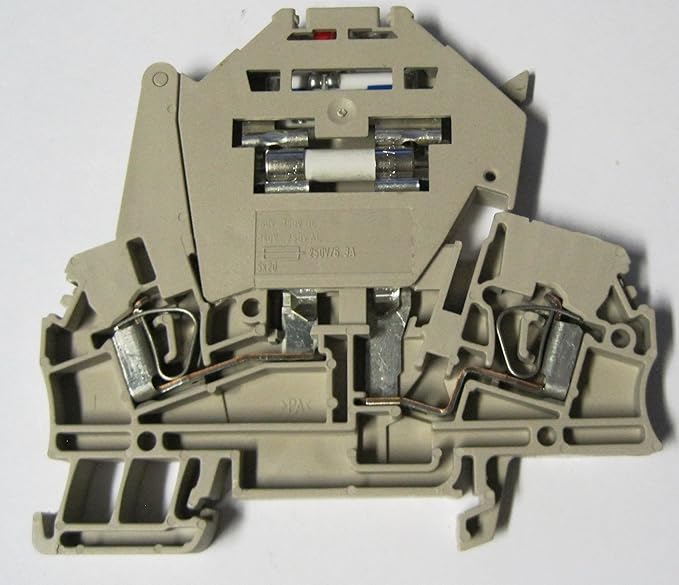

The Weidmuller 1616400000 ZSI 2.5 is a Z-series fuse terminal with a rated cross-section of 2.5 mm². Featuring tension-clamp connections and designed for direct mounting, this terminal block is suitable for industrial electrical and electronic applications. It accepts a 5x20 fuse.

  • Tension-clamp connection
  • Suitable for TS 35 DIN rail mounting
  • Accepts 5x20 mm fuse

Product Highlights

This fuse terminal block provides reliable circuit protection in a compact design.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1616400000
  • Country of Origin: CZ
Technical Specifications
Version
Tension-clamp connection
Order No.
1616400000
Type
Disconnect
GTIN (EAN)
4008190196592
Depth
73 mm
Depth (inches)
2.874 inch
Depth including DIN rail
74 mm
Height
79.5 mm
Height (inches)
3.13 inch
Width
7.9 mm
Width (inches)
0.311 inch
Net weight
19.54 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0
Fuse cartridge
Without LED
for plug-in cross-connector
One end without connector
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No
Explosion-tested version
No
Installation advice
Direct mounting
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on
Connection direction additional connection
top
Connection type, additional connection
Tension-clamp connection
Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0.13 mm²
Connection cross-section, finely stranded, min.
0.13 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0.13 mm²
Connection direction
Inclined / angled
Gauge to IEC 60947-1
A3
Number of connections
2
Stripping length
10 mm
Type of connection
Tension-clamp connection
Type of connection 2
Tension-clamp connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0.13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.13 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0.13 mm²
Certificate No. (CSA)
200039-1152892
Current size B (CSA)
15 A
Current size C (CSA)
15 A
Current size D (CSA)
15 A
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Voltage size D (CSA)
150 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
26 AWG
Cartridge fuse
G-Si. 5 x 20
Current
6.3 A
Display
Without LED
Fuse holder (cartridge holder)
Pivoting
Operating voltage, max.
500 V
Type of voltage for indicator
AC/DC
Standards
IEC 60947-7-3
Rated cross-section
2.5 mm²
Rated voltage
500 V
Rated voltage to adjoining terminal
500 V
Rated DC voltage
500 V
Nominal current
6.3 A
Current at maximum wires
6.3 A
Volume resistance according to IEC 60947-7-x
1.33 mΩ
Rated impulse withstand voltage
6 kV
Pollution severity
3
Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
12 AWG
Conductor size Factory wiring min. (UR)
26 AWG
Conductor size Field wiring max. (UR)
12 AWG
Conductor size Field wiring min. (UR)
26 AWG
Current size C (UR)
10 A
Voltage size C (UR)
300 V
ETIM 8.0
EC000899
ETIM 9.0
EC000899
ETIM 10.0
EC000899
ECLASS 14.0
27-25-01-13
ECLASS 15.0
27-25-01-13
Mfr. #
1616400000
Mfr.
Weidmuller
Manufacturer
Weidmuller
Manufacturer Part Number
Weidmuller 1616400000
SKU
WEI1616400000
Availability In Stock
Call
Stock Location
Call
Factory Stock
Call for Stock
Factory Lead
42 Days
Unit Of Measure
Each
Minimum/Multiple
50/50
RoHS Compliant
Yes
Current - IEC
6.3 A
Voltage - IEC
500V
Series
Z
Current - UL
10 A
Packaging
Bulk
Voltage - UL
300V
Wire Gauge or Range - AWG
12-26 AWG
Wire Gauge or Range - mm²
0.5-4mm²
Disconnect Type
Fuse, Removable Plug
Material - Insulation
Thermoplastic, Wemid
Terminal - Width
7.9mm
Material Flammability Rating
UL94 V-0
Termination Style
Push In, Spring
Body Orientation
Straight3817
Fuse Type
5mm x 20mm
