Weidmuller 1608880000 ZQV 2.5/4

Product Description

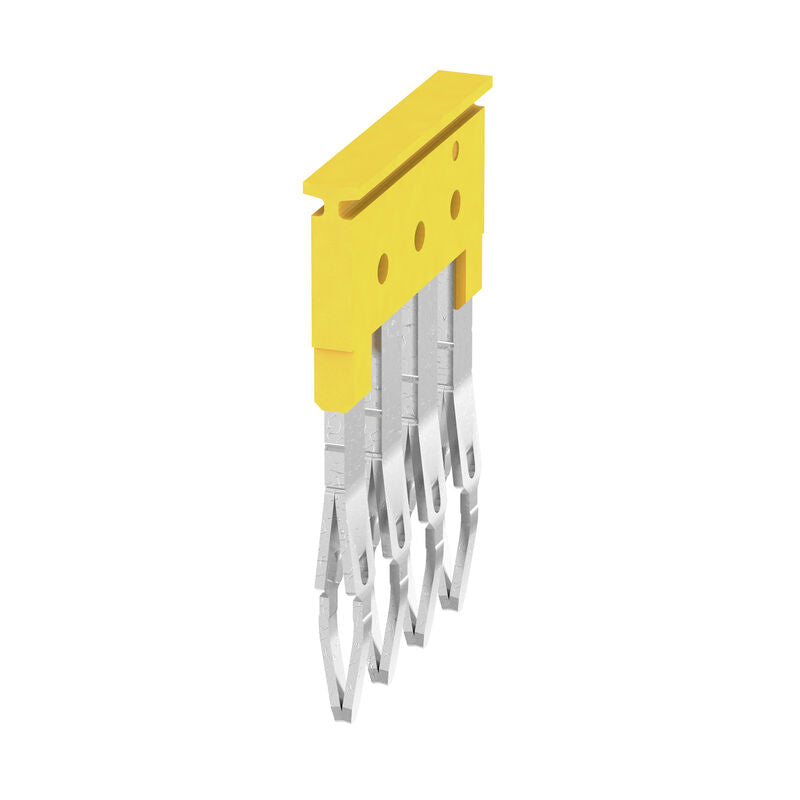

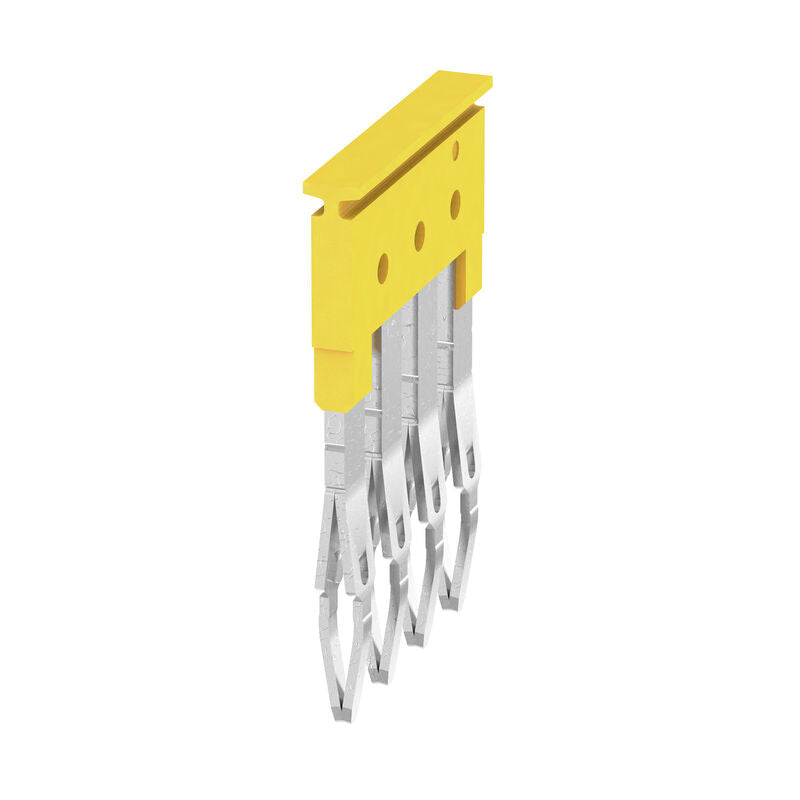

The Weidmuller 1608880000 ZQV 2.5/4 is a cross-connector with a 24 A nominal current. This 4-position terminal block cross connection jumper features flat pins and is made of wemid. It is designed for use with WTR 2.5/ZZ test-disconnect terminals.

• 4-terminal yellow Cross-Connector
• Made of wemid
• UL94V-0 Flammability rating

Product Highlights

The Weidmuller 1608880000 ZQV 2.5/4 cross-connector ensures reliable connections in terminal block applications.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1608880000

Technical Specifications

• Version: For the terminals
• Order No.: 1608880000
• Type: ZQV 2.5/4
• GTIN (EAN): 4008190082208
• Depth: 27.6 mm
• Depth (inches): 1.087 inch
• Height: 18.7 mm
• Height (inches): 0.736 inch
• Width: 2.8 mm
• Width (inches): 0.11 inch
• Net weight: 2.45 g
• Storage temperature: -25 00b0C...55 00b0C
• Ambient temperature: -60 00b0C 202685 00b0C
• Continuous operating temp., min.: -60 00b0C
• Continuous operating temp., max.: 130 00b0C
• Basic material: Wemid
• Colour: yellow
• UL 94 flammability rating: V-0
• Explosion-tested version: Yes
• Type of fixing: Plugged
• Pitch in mm (P): 5.1 mm
• Number of poles: 4
• Rated voltage: 400 V
• Nominal current: 24 A
• Category: Connectors, Interconnects
• Terminal Blocks: Terminal Block Jumpers
• Number of Positions: 4
• Pitch: 0.201" (5.10mm)
• Series: ZQV
• Style: Flat Pins
• Packaging: Bulk
• For Use With/Related Products: I, P, W and Z Series
• Part Status: Active
• Accessory Type: Jumper
• For Use With: WTR 2.5/ZZ Test-disconnect Terminals
• No. of Positions: 4Positions
• Pitch Spacing: 5.1mm
• Product Range: None
