Weidmuller 1579050000 wqb b/10

Product Description

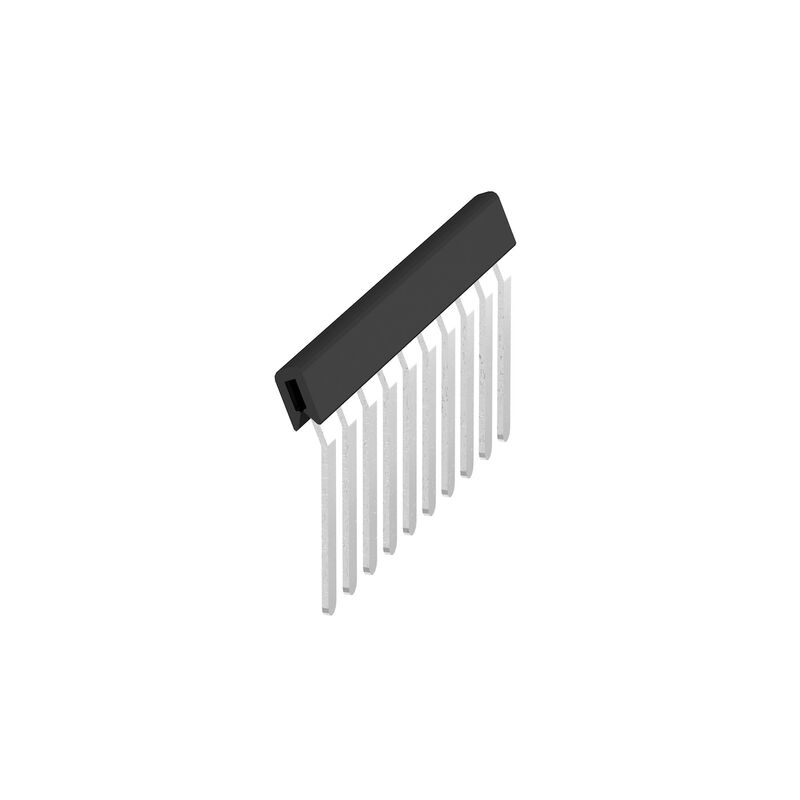

The Weidmuller 1579050000 WQB B/10 is a cross-connector designed for terminal blocks. When screwed in, it facilitates potential distribution or signal transmission to adjoining terminal blocks. It has 10 poles and a pitch of 5.10 mm. Rated for 800V and 24A, this cross-connector avoids additional wiring effort.

• Number of poles: 10
• Pitch: 5.10 mm
• Rated voltage: 800 V

Product Highlights

The Weidmuller WQB B/10 cross-connector simplifies potential distribution and signal transmission in terminal block applications.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1579050000

Technical Specifications

• Version: For the terminals
• Order No.: 1579050000
• Type: WQB B/10
• GTIN (EAN): 4008190094508
• Depth: 2.5 mm
• Depth (inches): 0.098 inch
• Height: 23.5 mm
• Height (inches): 0.925 inch
• Width: 48.26 mm
• Width (inches): 1.9 inch
• Net weight: 3.33 g
• Storage temperature: -25 °C...55 °C
• Ambient temperature: -5 °C 25 °C
• Continuous operating temp., max.: 70 °C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: Yes
• Basic material: tinned copper
• Colour: black
• Explosion-tested version: No
• Installation advice: Direct mounting
• Type of fixing: when screwed in
• Pitch in mm (P): 5.1 mm
• TS 35 offset: 54 mm
• Number of poles: 10
• Rated voltage: 800 V
• Nominal current: 24 A
• ETIM 8.0: EC000489
• ETIM 9.0: EC000489
• ETIM 10.0: EC000489
• ECLASS 14.0: 27-25-03-03
• ECLASS 15.0: 27-25-03-03
• Category: Connectors, Interconnects
• Terminal Blocks: Terminal Block Accessories, Terminal Block Jumpers
• Pitch: 0.201" (5.10mm)
• Manufacturer: Weidm ller
• Style: Flat Pins
• Series: W
• For Use With/Related Products: W Series
• Packaging: Bulk
• Contact Material: Copper
• Part Status: Active
• Contact Finish: Tin
• Terminal Block, Cross Connection: Terminal Block, Cross Connection
• Color: Black
• Number of Positions: 10
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): 1 (Unlimited)
• HTSUS: 8536.90.4000
• REACH Status: REACH Unaffected
• Number of Contacts: 10
• Number of Rows: 1
• Voltage Rating: 0 V
• Length: 23.5 mm
• Environmental Classification: Lead Free
• Radiation Hardening: No
• RoHS: Compliant
• Terminal Block Voltage Rating: 800 Volt
• Terminal Block Component Color: Black
• Component: Cross-Connection
• Terminal Block Width: 48.26 mm
