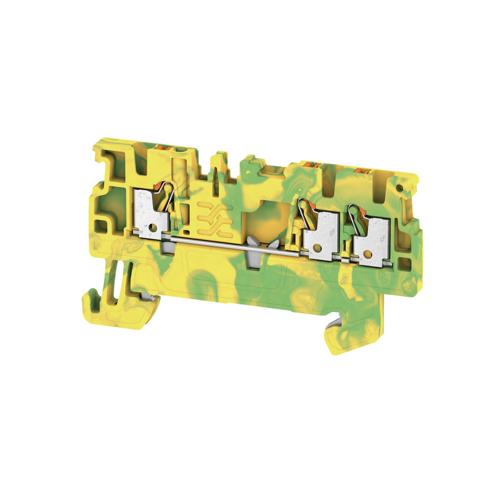

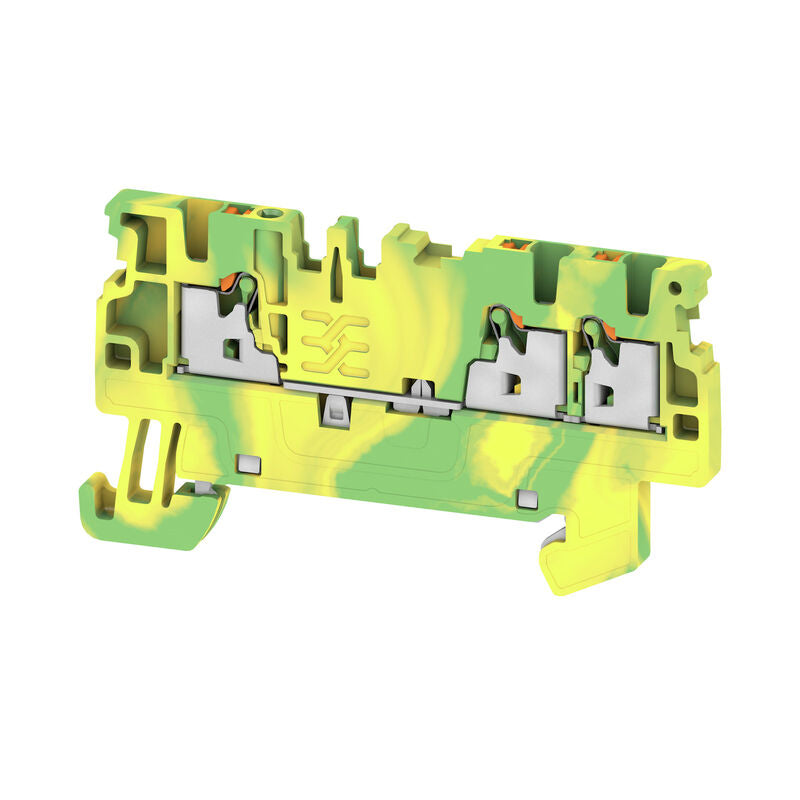

Weidmuller 1552670000 A3C 1.5 PE

Product Description

The Weidmuller 1552670000 A3C 1.5 PE is a PE terminal with PUSH IN connection, designed for 1.5 mm² wires. This terminal block provides a secure and reliable ground connection for various electrical applications. It is suitable for DIN rail mounting and features a thermoplastic, Wemid insulation material.

• PUSH IN connection type for easy wiring
• Designed for TS 35 mounting rail
• Made with Wemid insulation material

Product Highlights

The Weidmuller A3C 1.5 PE terminal block ensures a robust and efficient grounding solution for electrical installations.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1552670000
• Country of Origin: China

Technical Specifications

• Order No.: 1552670000
• Type: A3C 1.5 PE
• GTIN (EAN): 4050118359848
• Depth: 33.5 mm
• Depth (inches): 1.319 inch
• Depth including DIN rail: 34.5 mm
• Height: 61.5 mm
• Height (inches): 2.421 inch
• Width: 3.5 mm
• Width (inches): 0.138 inch
• Basic material: Wemid
• Colour: yellow-green
• Colour of operational elements: orange
• UL 94 flammability rating: V-0
• Wire cross section max. (ATEX): 1.5 mm 2
• Wire cross section max. (IECEX): 1.5 mm 2
• Marking EN 60079-7: Ex eb II C Gb
• Ex 2014/34/EU label: II 2 G D
• End cover plate required: Yes
• Number of potentials: 1
• Number of levels: 1
• Number of clamping points per level: 3
• Number of potentials per tier: 1
• PE connection: Yes
• Mounting rail: TS 35
• N-function: No
• PE function: Yes
• PEN function: No
• Explosion-tested version: Yes
• Installation advice: Rail
• Open sides: right
• Snap-on: No
• Type of fixing: Snap-on
• Type of mounting: TS 35
• With snap-in pegs: No
• Connection type, additional connection: PUSH IN
• Blade size: 0.4 x 2.0 mm
• Clamping range, max.: 1.5 mm 2
• Clamping range, min.: 0.14 mm 2
• Connection cross-section, finely stranded, min.: 0.14 mm 2
• Connection cross-section, stranded, max.: 1.5 mm 2
• Connection cross-section, stranded, min.: 0.14 mm 2
• Connection direction: top
• Gauge to IEC 60947-1: A1
• Number of connections: 3
• Stripping length: 8 mm
• Type of connection: PUSH IN
• Wire connection cross section AWG, max.: AWG 14
• Wire connection cross section AWG, min.: AWG 26
• Wire connection cross section, finely stranded, max.: 1.5 mm 2
• Wire connection cross section, finely stranded, min.: 0.14 mm 2
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 1.5 mm 2
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.14 mm 2
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 1 mm 2
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.14 mm 2
• Wire connection cross-section, solid core, max.: 1.5 mm 2
• Wire connection cross-section, solid core, min.: 0.14 mm 2
• Certificate No. (CSA): 200039-70089609
• Voltage size B (CSA): 300 V
• Voltage size C (CSA): 300 V
• Voltage size D (CSA): 600 V
• Wire cross section max. (CSA): 14 AWG
• Wire cross section min. (CSA): 26 AWG
• Standards: IEC 60947-7-2
• Rated cross-section: 1.5 mm 2
• Rated voltage to adjoining terminal: 500 V
• Rated DC voltage: 500 V
• Volume resistance according to IEC 60947-7-x: 1.83 m
• Rated impulse withstand voltage: 6 kV
• Rated impulse withstand voltage to adjacent terminal: 6 kV
• Power loss in accordance with IEC 60947-7-x: 0 W
• Pollution severity: 3
• Surge voltage category: III
• Certificate No. (cURus): E60693
• Conductor size Factory wiring max. (cURus): 14 AWG
• Conductor size Factory wiring min. (cURus): 26 AWG
• Conductor size Field wiring max. (cURus): 14 AWG
• Conductor size Field wiring min. (cURus): 26 AWG
• Voltage size B (cURus): 300 V
• Voltage size C (cURus): 300 V
• Voltage size D (cURus): 600 V
• Manufacturer: Weidm ller
• Termination Style: Push In
• Series: A3C
• Wire Gauge or Range - AWG: 14-26 AWG
• Packaging: Box
• Wire Gauge or Range - mm 2: 0.5-1.5mm 2
• Part Status: Active
• Material - Insulation: Thermoplastic, Wemid
• Number of Positions: 3
• Material Flammability Rating: UL94 V-0
• Rated voltage: 500V AC
• Operating temperature: -60...130 C
• Terminal Block Number of Levels: 1
• Terminal Block Width: 3.5 mm
• Terminal Block Number of Connections: 3
• Terminal Block Connection Method: Push-In Connection
• Terminal Block Component Color: Green/Yellow
• Component: Terminal Block
• Sub Component: Modular PE Terminal Block
• Wire cross-section: 1.5mm 2
• Number of ways: 1
• Number of terminals: 3
• Mounting rail size: TS35
