Weidmuller 1527630000 ZQV 2.5N/6

Product Description

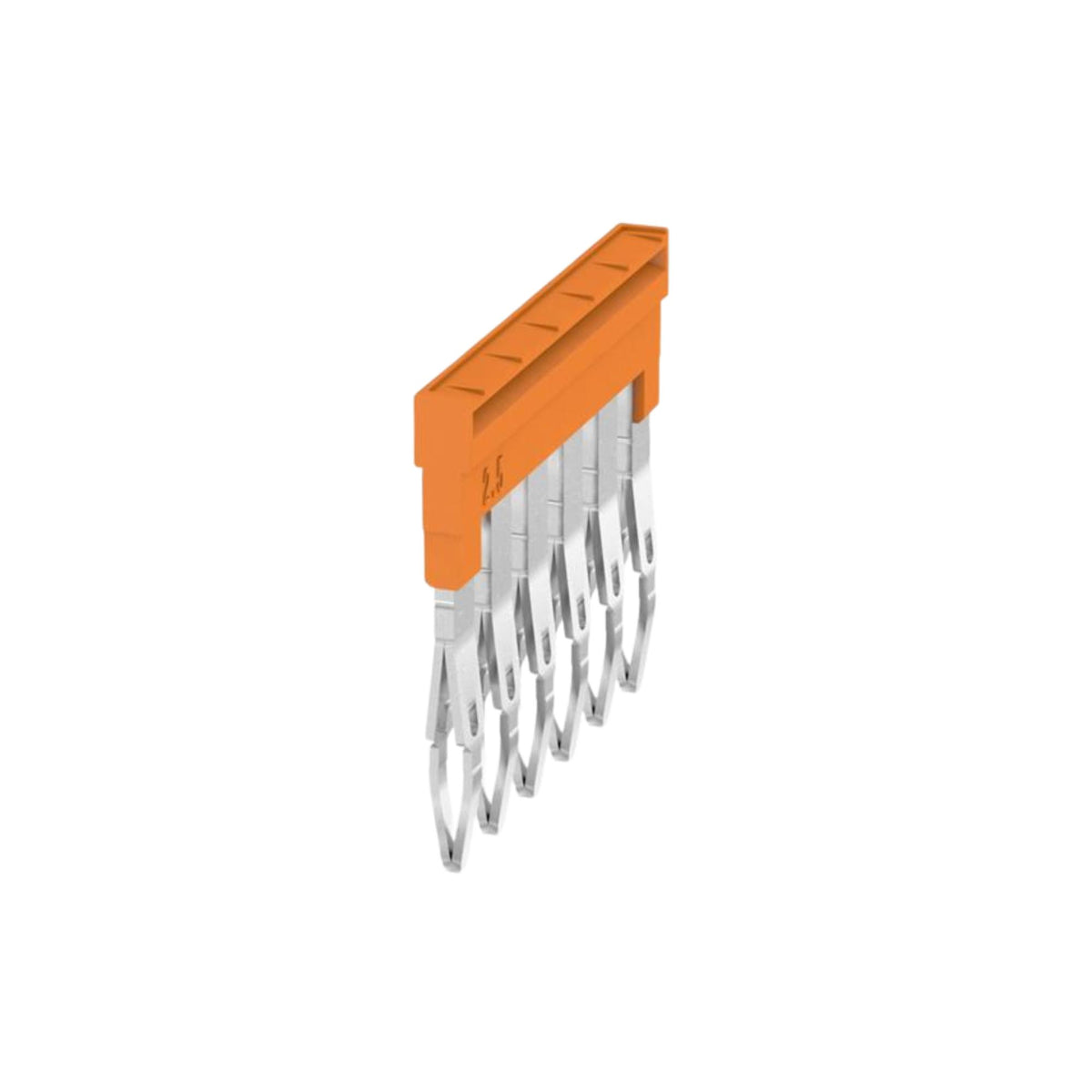

The Weidmuller 1527630000 ZQV 2.5N/6 is a cross-connector (terminal) designed for plugging. This orange, 6-pole connector has a 5.10 mm pitch and is insulated for safety. It is suitable for bridging terminals, industrial control panels, OEM wiring, signal and power distribution.

• Plug-in cross-connector (terminal) from Weidmüller’s ZQV Series
• 6 poles with 5.10 mm pitch for standard terminal blocks
• Insulated orange body for safe installation

Product Highlights

The Weidmuller ZQV 2.5N/6 is ideal for use in DIN rail terminal blocks and industrial control panels.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1527630000
• Country of Origin: China

Technical Specifications

• Version: Cross-connector (terminal), Plugged, orange, 24 A, Number of poles: 6, Pitch in mm (P): 5.10, Insulated: Yes, Width: 28.3 mm
• Order No.: 1527630000
• Type: Terminal Block, Cross Connection
• GTIN (EAN): 4050118448429
• Depth: 24.7 mm
• Depth (inches): 0.972 inch
• Height: 2.8 mm
• Height (inches): 0.11 inch
• Width: 28.3 mm
• Width (inches): 1.114 inch
• Net weight: 3.46 g
• Storage temperature: -25 °C...55 °C
• Ambient temperature: -5 °C…40 °C
• Continuous operating temp., min.: -60 °C
• Continuous operating temp., max.: 130 °C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Basic material: Wemid
• Colour: orange
• UL 94 flammability rating: V-0
• Explosion-tested version: Yes
• Type of fixing: Plugged
• Type of mounting: Direct mounting
• Pitch in mm (P): 5.1 mm
• Number of poles: 6
• Rated voltage: 400 V
• Nominal current: 24 A
• ETIM 8.0: EC000489
• ETIM 9.0: EC000489
• ETIM 10.0: EC000489
• ECLASS 14.0: 27-25-03-03
• ECLASS 15.0: 27-25-03-03
• Mfr. #: 1527630000
• Mouser #: 470-1527630000
• Mfr.: Weidmuller
• Category: Connectors, Interconnects
• Terminal Blocks: Terminal Block Accessories
• Terminal Block Jumpers: Number of Positions
• Number of Positions: 6
• Manufacturer: Weidmüller
• Pitch: 0.201" (5.10mm)
• Series: ZQV
• Style: Flat Pins
• Packaging: Bulk
• For Use With/Related Products: A Series
• Part Status: Active
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 8536.90.4000
• REACH Status: REACH Unaffected
• Brand: Weidmuller
• UPC: Does not apply
• Country of Origin: China
• Environmental Classification: REACH SVHC
• RoHS: Compliant
• Model: Weidmuller 1527630000
• Poles: 6
• Rated Current: 24 A
• Rated Voltage: 400 V
• Material / Insulation: Orange insulated body, UL 94 V-0
• Mounting: Push-in on DIN rail terminal blocks
• Dimensions (approx.): 28.3 mm W × 24.7 mm D × 2.8 mm H
