Weidmuller 1506220000 Act20p-ci-2co-p-s

Brand: Weidmuller
SKU: 1506220000
Availability: Out Of Stock
$277.14
$277.14
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

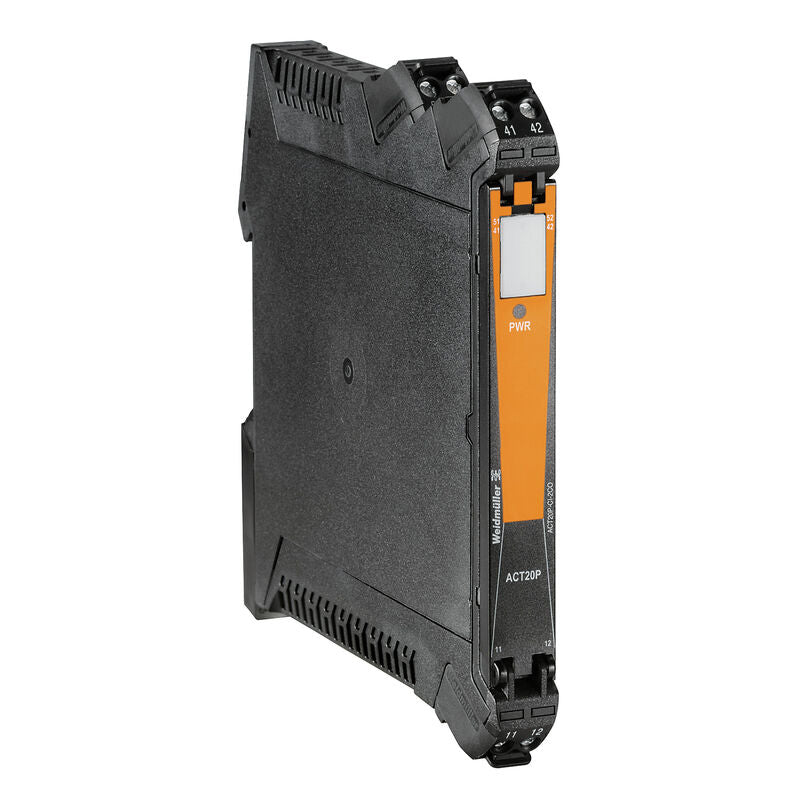

The Weidmuller 1506220000 ACT20P-CI-2CO isolates analogue standard current signals from a power source or from a 2- or 3-wire sensor. An analogue input current signal is converted linearly and doubled to provide two galvanically isolated output current signals. The power supply is galvanically isolated from the input and output (4-way isolation).

  • HART-compatible for 0.5 - 2.5 kHz
  • The active or passive mA signal inputs are fully galvanically isolated.
  • Operating status display on a front panel LED

Product Highlights

This analog isolating amplifier doubles an analog input current signal to provide two galvanically isolated output current signals. It features 4-way isolation between input, output and supply.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1506220000
  • Country of Origin: CN
Technical Specifications
Version
Analogue isolating amplifier, Input : 0(4)-20 mA, Output : 2 x 0(4) - 20 mA, Voltage supply also via CH20M rail bus, HART
Order No.
1506220000
Type
active
GTIN (EAN)
4050118314724
Depth
113.7 mm
Depth (inches)
4.476 inch
Height
127.1 mm
Height (inches)
5.004 inch
Width
12.5 mm
Width (inches)
0.492 inch
Storage temperature
-40 °C...85 °C
Operating temperature
-20 °C...60 °C
Humidity at operating temperature
0...95 % (no condensation)
Humidity
5...95 %, no condensation
SIL in compliance with IEC 61508
None
RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
2f6dd957-421a-46db-a0c2-cf1609156924
Input current
0...20 mA 4…20mA
Input signal
HART signal bidirectional
Number inputs
1
Sensor
2-wire transmitter (without own power supply) 3-wire sensor 4- wire sensor (with own power supply)
Sensor supply
> 17 V DC at 20 mA
Voltage drop
ca. 3.8 V @ R
Load
= 600 Ω; (I input = 20 mA)
Load impedance current
<300 Ω
Number of outputs
2
Output current
0…20 mA (if input: 0…20 mA) 4…20 mA (if input: 4…20 mA) HART digital signal
Accuracy
<0.1 % of end value
Configuration
none
Current consumption
≤60 mA (24V power supply, 20mA output)
Mounting rail
TS 35
Nominal power consumption
2 VA
Operating altitude
≤ 2000 m
Protection degree
IP20
Step response time
≤ 0,5 ms
Supply voltage
20…30 V DC
Temperature coefficient
80 ppm/K
Type of signal forwarding according to HART
unchanged
EMC standards
EN 61326-1 EN 61000-6-2 EN 61000-6-4
Galvanic isolation
3-way isolator between input ⁄ output ⁄ supply
Impulse withstand voltage
4 kV (1.2/50 µs)
Insulation voltage
2 kV inputs / outputs / power supply
Insulation voltage input or output/supply
2 kV inputs / outputs / power supply
Pollution severity
2
Surge voltage category
III
Test voltage
0.3 kV
IECEx - gas labelling
Ex ec IIC T5 Gc
Marking
II 3 G Ex ec IIC T5 Gc
Type of connection
Screw connection
Tightening torque, min.
0.4 Nm
Tightening torque, max.
0.6 Nm
Clamping range, rated connection
2.5 mm²
Clamping range, min.
0.5 mm²
Clamping range, max.
2.5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 12
Rated supply voltage DC (V)
24 - 24
Number of input ranges 0 mA ... 20 mA
1
Number of input ranges 4 mA ... 20 mA
1
Number of output ranges 0 mA ... 20 mA
1
Number of output ranges 4 mA ... 20 mA
1
Power consumption (W)
2
Temperature drift (%/K)
0.02
Construction type of device
Field device
Degree of protection (IP)
IP20
