Weidmuller 1415100000 Conn Plug Hsg 9Pos 5.00mm

Product Description

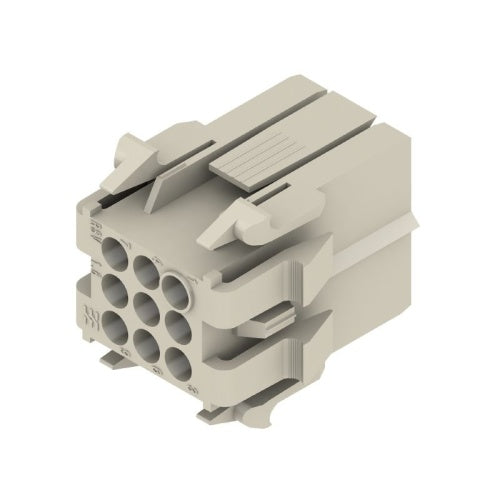

The Weidmuller 1415100000 is a rectangular plug-in connector from the RSV series, designed with a 5.00 mm pitch for high component density applications. It features crimp connections for secure electrical connections and excellent contact stability with four contact points and a steel spring. The plug-in connectors can be coded and locked to the mating connector.

• Rectangular plug-in connector for use with crimp contacts.
• Can be used as universal coupling, but also with the PCB variations.
• The crimp contacts guarantee a high connection density.

Product Highlights

Ideal for PCB or terminal rail mounting, as well as wall bushing installations. Contacts sold separately.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1415100000
• Country of Origin: DE

Technical Specifications

• Category: Connectors, Interconnects
• Series: Omnimate RSV
• Part Status: Active
• Connector Type: Plug
• Number of Positions: 9
• Pitch: 0.197" (5.00mm)
• Mounting Type: Free Hanging (In-Line); Panel Mount
• Number of Rows: 3
• Color: Gray
• Contact Type: Male Pin
• Fastening Type: Latch Lock
• Insulation Material: Polyamide (PA), Nylon
• Contact Termination: Crimp
• Row Spacing: 0.197" (5.00mm)
• Operating Temperature: -50 C ~ 100 C
• Base Product Number: RSV 1.6
• Manufacturer: Weidmuller
• Packaging: Bulk
• Note: Contacts Sold Separately
• RoHS: Yes
• Mounting: Cable Mount
• Body Orientation: Straight
• Gender: RCP
• Termination Method: Crimp
• Maximum Voltage Rating: 600 V
• Maximum Current Rating: 10 A
• Connector Material: Copper Alloy
• Component: PCB Connector
• Connector Color: Pebble Gray
• Connection Type: Crimp Connection
• Sub Component: Rectangular Plug-In Connector
• Connector Voltage: 600 Volt
• Number of Poles: 9 Pole
• Type of connector accessories: insert
• Number of pins: 9
• Connector pinout layout: 3x3
• Contacts pitch: 5mm
