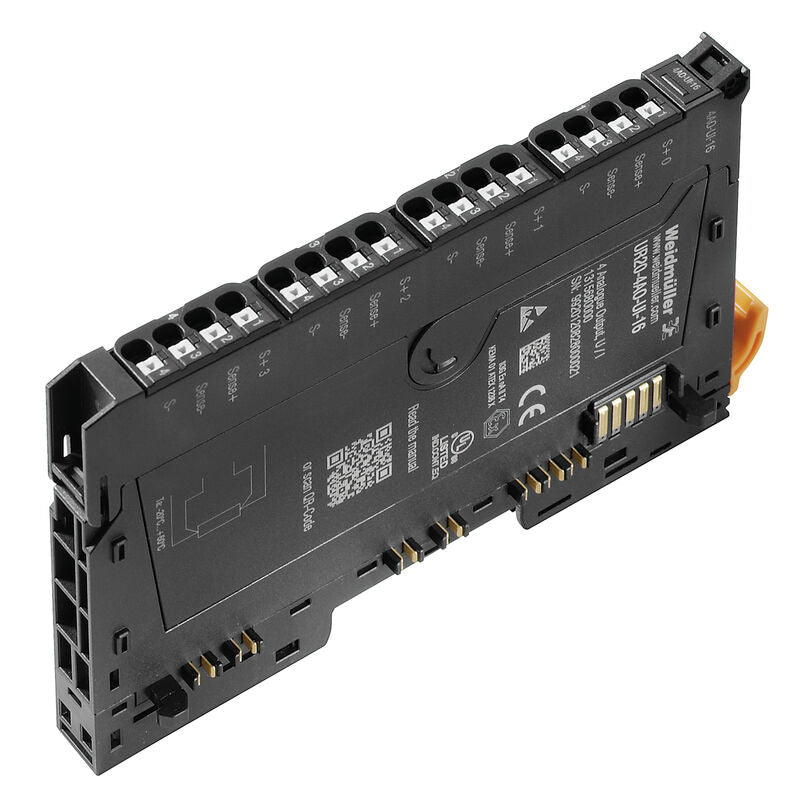

Weidmuller 1315680000 UR20-4AO-UI-16 Remote I/O Module

Brand: Weidmuller
SKU: 1315680000
Availability: In Stock

Ships same day if ordered by 12 pm
$385.55
$385.55
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

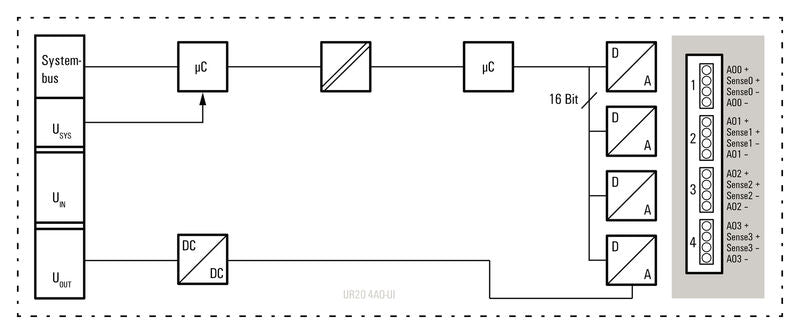

The Weidmuller 1315680000 UR20-4AO-UI-16 is a remote I/O module, IP20, designed for analog signals output with 4 channels for current/voltage. It allows connection with 2- or 4-wire technology and features channel-by-channel measurement range definition using parameterization. Each channel has its own status LED.

  • 4-channel analogue output module
  • Connection system: PUSH IN
  • Galvanic isolation: between field and system bus

Product Highlights

This module controls up to 4 analogue actuators with an accuracy of 0.05% of the measurement-range end value.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1315680000
  • Country of Origin: China
Technical Specifications
Version
Remote I/O module, IP20, Analog signals, Output, 4-channel, Current/Voltage
Order No.
1315680000
Type
1. U (0 5 V, 0 10 V, 1 5 V, 2 10 V, 10 V) 2. I (0–20 mA or 4–20 mA)
GTIN (EAN)
4050118118803
Depth
76 mm
Depth (inches)
2.992 inch
Height
120 mm
Height (inches)
4.724 inch
Width
11.5 mm
Width (inches)
0.453 inch
Net weight
87 g
Storage temperature
-40 C ... +85 C
Operating temperature
-20 C...60 C
RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
82327f13-cd27-455a-ab5b-a62e1996dcf8
Accuracy
0,1 % FSR max., 0,05 % FSR typ.
Actuator connection
2-wire (automatic detection) 4-wire
Actuator supply min.
0 mA
Actuator supply nominal
185 mA
Actuator supply max.
185 mA
Cross-talk between the channels in FSR
0.001 %
Individual channel diagnosis
No
Load impedance current
<600
load impedance voltage
> 1 k (at >50 C ambient temperature, max. total sensor current = 25 mA)
Max. error between T min. and T max. in FSR
220 %
Module diagnosis
Yes
Monotonicity
Yes
Number analogue outputs
4
Output current as per application min.
0 mA
Output current as per application nominal
185 mA
Output current as per application max.
185 mA
Output variable
Voltage (0...5 V, 0...10 V, 1...5 V, 2...10 V, 10 V, 5 V) Current (0...20 mA or 4...20 mA)
Repeat accuracy
<1 mV eff.
Resolution
16 Bit
Response time
1 ms / 4 channels
Short-circuit-proof
Yes
Simultaneity factor min.
0 %
Simultaneity factor nominal
100 %
Simultaneity factor max.
100 %
Substitute values
Yes
Temperature coefficient
20 ppm voltage / 31 ppm current measurement / K
Type of connection
PUSH IN
Wire connection cross section, finely stranded, max.
1.5 mm
Wire connection cross section, finely stranded, min.
0.14 mm
Wire cross-section, finely stranded, max. (AWG)
AWG 16
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, solid, max.
1.5 mm
Wire cross-section, solid, max. (AWG)
AWG 16
Wire cross-section, solid, min.
0.14 mm
Wire cross-section, solid, min. (AWG)
AWG 26
Air humidity (operation)
10% to 95%, non-condensing as per DIN EN 61131-2
Air humidity (storage)
10% to 95%, non-condensing as per DIN EN 61131-2
Air humidity (transport)
10% to 95%, non-condensing as per DIN EN 61131-2
Air pressure (operation)
795 hPa (height 2000 m) as per DIN EN 61131-2
Air pressure (storage)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Air pressure (transport)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Mounting rail
TS 35
Pollution severity
2
Shock
15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
Surge voltage category
II
Test voltage
500 V
UL 94 flammability rating
V-0
Vibration resistance
5 Hz f 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6 8.4 Hz f 150 Hz: 1 g acceleration as per IEC 60068-2-6
Current consumption from I OUT
85 mA
Current consumption from I sys, typ.
8 mA
Supply voltage
24 V DC +20 %/ -15 %
Connection type
PUSH IN
Diagnostic data
1 Bit
Field bus protocol
PROFINET IRT PROFINET RT CC-Link IE TSN PROFIBUS DP-V1 EtherCAT Modbus/TCP EtherNet/IP CANopen DeviceNet POWERLINK CC-Link
Galvanic isolation
500 V DC between the current paths
Interface
u-remote system bus
Module type
Analogue output module
Parameter data
12 Byte
Process data
8 Byte
Transmission speed of system bus, max.
48 MBit/s
