Weidmuller 1201000000 hdc he 6 fc 500 V 24 A

Product Description

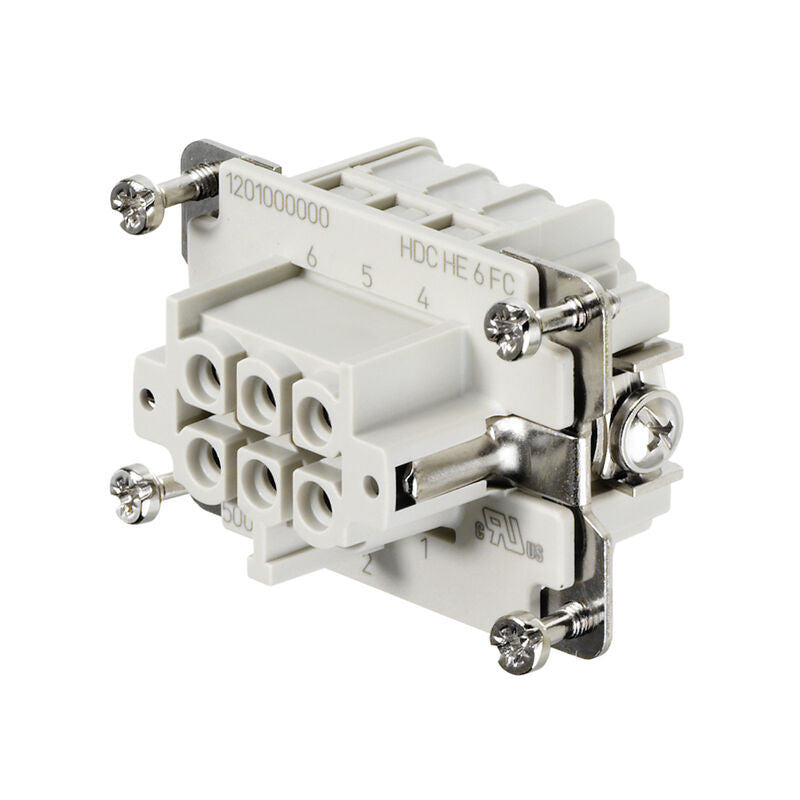

The Weidmuller 1201000000 HDC HE 6 FC is a female HDC insert with 6 poles, designed for crimp connection. It supports 500 V and 24 A, with an installation size of 3. Ideal for heavy-duty power connector applications, this insert ensures reliable performance in harsh environments.

• Female Insert without Contacts
• 6+Ground Position
• Crimp Termination

Product Highlights

Heavy-duty power connector insert with 6 poles, crimp connection, and robust construction.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1201000000
• Country of Origin: CN

Technical Specifications

• Version: HDC insert, Female, 500 V, 24 A, Number of poles: 6, Crimp connection, Installation size: 3
• Order No.: 1201000000
• Type: HDC HE 6 FC
• GTIN (EAN): 4008190131678
• Installation size: 3
• Depth: 51 mm
• Depth (inches): 2.008 inch
• Height: 33.5 mm
• Height (inches): 1.319 inch
• Width: 34 mm
• Width (inches): 1.339 inch
• Net weight: 29.04 g
• Limit temperature: -40 C ... 125 C
• Basic material: Copper alloy
• Colour: beige
• Conductor cross-section: 4 mm
• Insulating material: PC glass-fibre reinforced (UL-listed and railway-certified)
• Insulating material group: IIIa
• Insulation resistance: 10 10
• Low smoke acc. DIN EN 45545-2: Yes
• Number of poles: 6
• Number of power contacts: 6
• Number of signal contacts: 0
• Plugging cycles, gold: 500
• Plugging cycles, silver: 500
• Pollution severity: 3
• Rated current (DIN EN 61984): 24 A
• Rated impulse voltage (DIN EN 61984): 6 kV
• Rated voltage (DIN EN 61984): 500 V
• Rated voltage according to UL/CSA: 600 V AC/DC
• Series: Rockstar HE
• Type of connection: Crimp connection
• UL 94 flammability rating: V-0
• Volume resistance: 2 m
• Blade size, slotted (PE connection): SD 0.8 x 4.0
• Connection type PE: Screw connection
• Fixing screw: M 4
• Rated cross-section: 4 mm
• Stripping length PE connection: 10 mm
• Tightening torque, max. PE connection: 1.5 Nm
• Tightening torque, min. PE connection: 1.2 Nm
• Wire cross section, AWG (PE), max.: AWG 12
• Wire cross section, AWG (PE), min.: AWG 20
• Conductor cross-section, max.: 4 mm
• Conductor cross-section, min.: 0.5 mm
• Stripping length, rated connection: 7.5 mm
• Wire connection cross section AWG, max.: AWG 12
• Wire connection cross section AWG, min.: AWG 20
• Wire connection cross section, finely stranded, max.: 4 mm
• Wire connection cross section, finely stranded, min.: 0.5 mm
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 4 mm
• Wire cross-section, solid, max.: 4 mm
• Wire cross-section, solid, min.: 0.5 mm
• Category: Connector/Terminal/Pin
• Heavy Duty Connectors: Heavy Duty Connector Inserts, Modules
• Size: 3
• Manufacturer: Weidm ller
• Termination Style: Crimp
• Voltage Rating: 500V
• Packaging: Bulk
• Current Rating (Amps): 24A
• Part Status: Active
• Contact Type: HE
• Connector Type: Insert without Contacts
• Operating Temperature: -40 to 125 C
• Gender: Female
• Housing Material: Polycarbonate (PC), Glass Filled
• Number of Positions: 6+Ground
• Material Flammability Rating: UL94 V-0
• Supplier: Weidmuller
• Part No: 1201000000
• Unit of Measure: Per Each
• RoHS: Yes
• Maximum Voltage Rating: 500 V
• Maximum Current Rating: 24 A
• Rated Current: 24 A
• Rated Voltage: 500 V
• Termination Method: Crimp
• Number of Contacts: 6Signal/1Ground
• Mounting: Panel Mount
• Body Orientation: Straight
• Pitch: N/A
