Weidmuller 1200000000 HDC HE 6 MS 500 V, 24 A, Number of poles: 6

Product Description

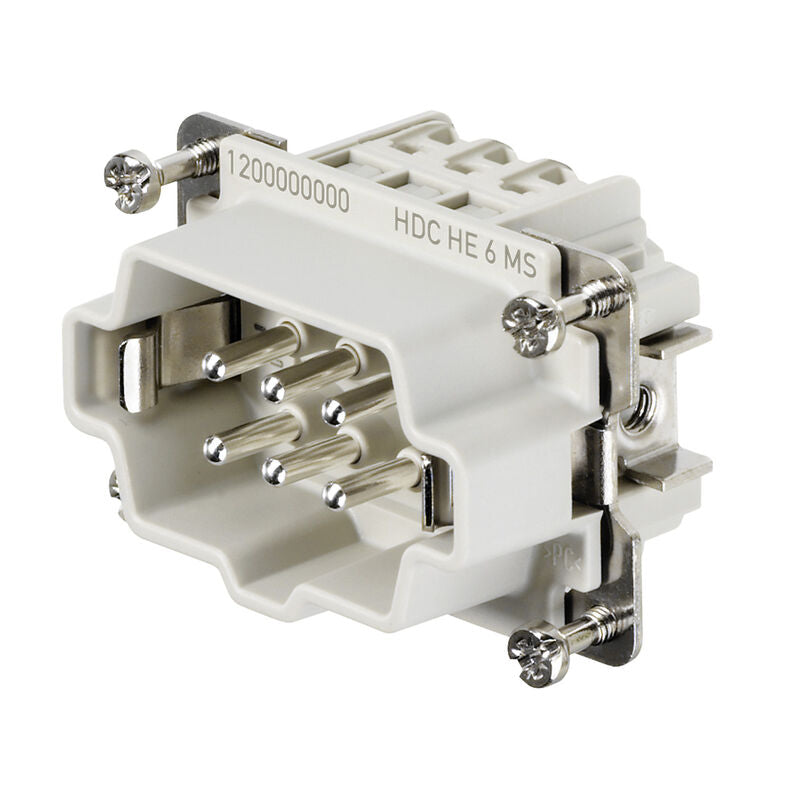

The Weidmuller 1200000000 HDC HE 6 MS is a male HDC insert with 6 poles, rated for 500 V and 24 A. It features a screw connection with M3 clamping screw and 9mm stripping length. The shell size is 3 and has copper alloy contacts with silver passivated surface finish. Accepts 20AWG to 14AWG wire cross section.

• Male insert with 6+Ground Position
• Screw termination
• Shell size is 3

Product Highlights

The Weidmuller 1200000000 HDC HE 6 MS insert is suitable for industrial applications requiring reliable power and signal connections.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1200000000

Technical Specifications

• Order No.: 1200000000
• Type of connector: HDC
• Kind of connector: male
• Manufacturer series: HDC
• Series: HE
• Category: Connectors, Interconnects
• Heavy Duty Connectors: Heavy Duty Connector Inserts, Modules
• Termination Style: Screw
• Manufacturer: Weidm ller
• Voltage Rating: 500V
• Current Rating (Amps): 24A
• Operating Temperature: -40 C ... 125 C
• Packaging: Bulk
• Part Status: Active
• Housing Material: Polycarbonate (PC), Glass Filled
• Connector Type: Insert
• Contact Material: Copper Alloy
• Gender: Plug
• Contact Finish: Silver Plated Contacts
• Number of Positions: 6+Ground
• Material Flammability Rating: UL94 V-0
• Size: 3
• Depth: 51 mm
• Depth (inches): 2.008 inch
• Height: 35.7 mm
• Height (inches): 1.406 inch
• Width: 34 mm
• Width (inches): 1.339 inch
• Net weight: 49 g
• Limit temperature: -40 C ... 125 C
• RoHS Compliance Status: Compliant with exemption
• RoHS Exemption (if applicable/known): 6c
• REACH SVHC: Lead 7439-92-1, Potassium perfluorobutane sulfonate 29420-49-3
• SCIP: e98b2b24-ba23-41bf-8d19-0dda3647412f
• Chemical resistance: Substance: Acetone, Chemical resistance: Resistant; Substance: Ammonia, watery, Chemical resistance: Conditionally resistant; Substance: Petrol, Chemical resistance: Resistant; Substance: Benzene, Chemical resistance: Resistant; Substance: Diesel oil, Chemical resistance: Conditionally resistant; Substance: Acetic acid, concentrated, Chemical resistance: Resistant; Substance: Potassium hydroxide, Chemical resistance: Conditionally resistant; Substance: Methanol, Chemical resistance: Conditionally resistant; Substance: Motor oil, Chemical resistance: Conditionally resistant; Substance: Lye, diluted, Chemical resistance: Resistant; Substance: Hydrochlorofluorocarbons, Chemical resistance: Conditionally resistant; Substance: Outdoor use, Chemical resistance: Conditionally resistant
• Height of plug: 35.7 mm
• Total length base: 51 mm
• Basic material: Copper alloy
• BG: 3
• Conductor cross-section: 2.5mm
• Installation size: 3
• Insulating material: PC glass-fibre reinforced (UL-listed and railway-certified)
• Insulating material group: IIIa
• Insulation resistance: 10 10
• Low smoke acc. DIN EN 45545-2: Yes
• Max. torque for main contact: 0.7 Nm
• Min. torque for main contact: 0.6 Nm
• Number of poles: 6
• Number of power contacts: 6
• Number of signal contacts: 0
• Plugging cycles, gold: 500
• Plugging cycles, silver: 500
• Pollution severity: 3
• Rated current (cUR) Wire connection cross section AWG: AWG 12: Rated current: 19.7 A
• Rated current (cUR) Wire connection cross section AWG: AWG 14: Rated current: 15 A
• Rated current (cUR) Wire connection cross section AWG: AWG 16: Rated current: 11.3 A
• Rated current (cUR) Wire connection cross section AWG: AWG 18: Rated current: 10.3 A
• Rated current (cUR) Wire connection cross section AWG: AWG 20: Rated current: 8 A
• Rated current (DIN EN 61984): 24 A
• Rated current (UR) Wire connection cross section AWG: AWG 12: Rated current: 20 A
• Rated current (UR) Wire connection cross section AWG: AWG 14: Rated current: 15 A
• Rated current (UR) Wire connection cross section AWG: AWG 16: Rated current: 10 A
• Rated current (UR) Wire connection cross section AWG: AWG 18: Rated current: 7 A
• Rated current (UR) Wire connection cross section AWG: AWG 20: Rated current: 5 A
• Rated impulse voltage (DIN EN 61984): 6 kV
• Rated voltage (DIN EN 61984): 500 V
• Rated voltage according to UL/CSA: 600 V AC/DC
• Surface finish: Silver passivated
• Tightening torque, max. PE connection: 1.5 Nm
• Tightening torque, min. PE connection: 1.2 Nm
• Type of connection: Screw connection
• UL 94 flammability rating: V-0
• Volume resistance: 2 m
• Blade size, slotted (PE connection): SD 0.8 x 4.0
• Connection type PE: Screw connection
• Fixing screw: M 4
• Rated cross-section: 4 mm
• Stripping length PE connection: 10 mm
• Wire cross section, AWG (PE), max.: AWG 12
• Wire cross section, AWG (PE), min.: AWG 20
• Tightening torque, max.: 0.7 Nm
• Tightening torque, min.: 0.6 Nm
• Blade size: size PH1
• Blade size, slotted (screw connection): SD 0.6 x 3.5
• Clamping screw: M 3
• Conductor cross-section, max.: 2.5 mm
• Conductor cross-section, min.: 0.5 mm
• Stripping length, rated connection: 9 mm
• Wire connection cross section AWG, max.: AWG 14
• Wire connection cross section AWG, min.: AWG 20
• Wire connection cross section, finely stranded, max.: 2.5 mm
• Wire connection cross section, finely stranded, min.: 0.5 mm
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 2.5 mm
• Wire cross-section, solid, max.: 2.5 mm
• Wire cross-section, solid, min.: 0.5 mm
• ETIM 8.0: EC000438
• ETIM 9.0: EC000438
• ETIM 10.0: EC000438
• ECLASS 14.0: 27-44-02-05
• ECLASS 15.0: 27-44-02-05
• Number of pins: 6
• Current rating: 24A
• Rated voltage: 0.5kV
• Connector pinout layout: 6+PE
• Case: size 3
• Electrical mounting: screw terminal
• Locking system: screws
• Connector variant: with earthing
• Spatial orientation: straight
• Flammability rating: UL94V-0
• Contact plating: silver plated
• Insert mounting: 44x27mm
• Mechanical durability: 500 cycles
• Insulator material: polycarbonate
• Product Range: HE Series
• Connector Mounting: Cable Mount
• Contact Gender: Pin
• Contact Termination Type: Screw
• Connector Shell Size: 3
• No. of Contacts: 6Contacts
• No. of Rows: 2Rows
• SVHC: Lead
