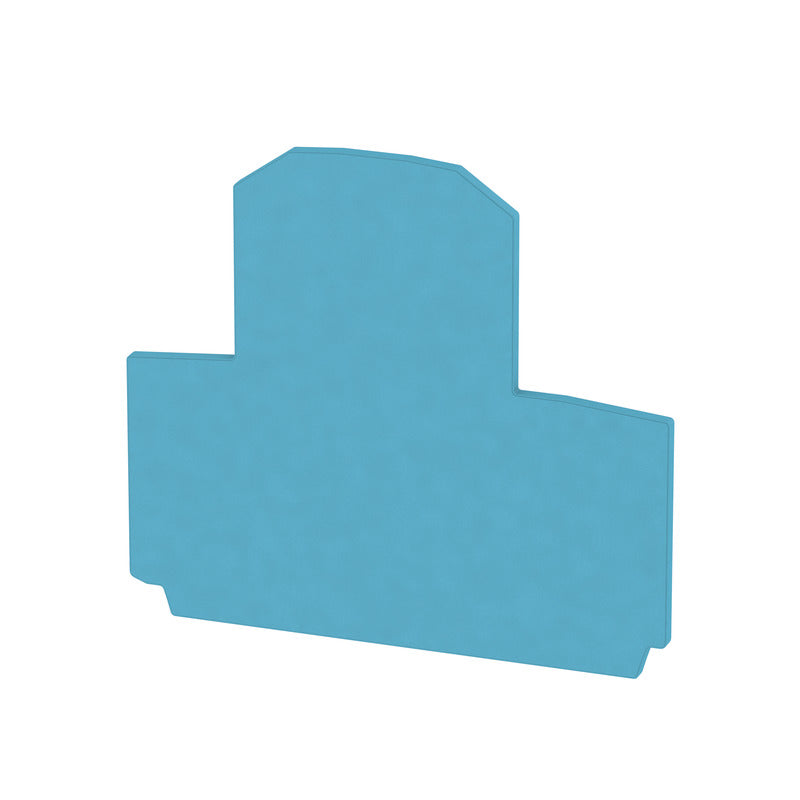

Weidmuller 1084080000 Wap Wdk2.5/4 N Bl (60 mm H x 1.5 mm W x 53.9 mm D)

Product Description

The Weidmuller 1084080000 end plate is an accessory for W Series terminal blocks that provides touch protection for live parts and optical separation of electrical circuits. It is made of Wemid with UL94 V-0 flammability rating, designed for direct mounting, and measures 60 mm high, 1.5 mm wide, and 53.9 mm deep. Operating range: -50 °C to 120 °C; storage: -25 °C to 55 °C.

• Provides touch protection for live parts and optical separation of circuits
• Wemid material with UL94 V-0 rating; direct mount installation
• Dimensions: 60 mm H x 1.5 mm W x 53.9 mm D; continuous operating range -50 °C to 120 °C

Product Highlights

End plate for Weidmuller W Series terminal blocks; Wemid material, UL94 V-0; direct mount; 60 x 1.5 x 53.9 mm.

Product Information

Standard Information

• Brand: WEIDMULLER
• Manufacturer Part Number: 1084080000
• Country of Origin: Romania

Technical Specifications

• Manufacturer: Weidmuller
• Manufacturer Part Number: 1084080000
• GTIN (EAN): 4032248127337
• Series: W Series
• Product Type: End Plate
• For Use With: Weidmuller W Series terminal blocks
• Material: Wemid
• Flammability Rating: UL 94 V-0
• Mounting Type: Direct mounting
• Snap-on: No
• Height: 60 mm
• Width: 1.5 mm
• Depth: 53.9 mm
• Dimensions: 60 mm H x 1.5 mm W x 53.9 mm D
• Net Weight: 4.2 g
• Continuous Operating Temperature Range: -50 °C to 120 °C
• Ambient Temperature: -50 °C to 75 °C
• Storage Temperature: -25 °C to 55 °C
• RoHS Compliance: Compliant without exemption
• RoHS Phthalates Compliance: Yes
• REACH SVHC: No SVHC above 0.1 wt%
• Product Carbon Footprint (cradle to gate): 0.046 kg CO2 eq.
• Country of Origin: Romania
• Factory Pack Quantity: 20
• ECCN: EAR99
• HTS (USHTS): 8538906000
• TARIC: 8538909999
