Description

Product Description

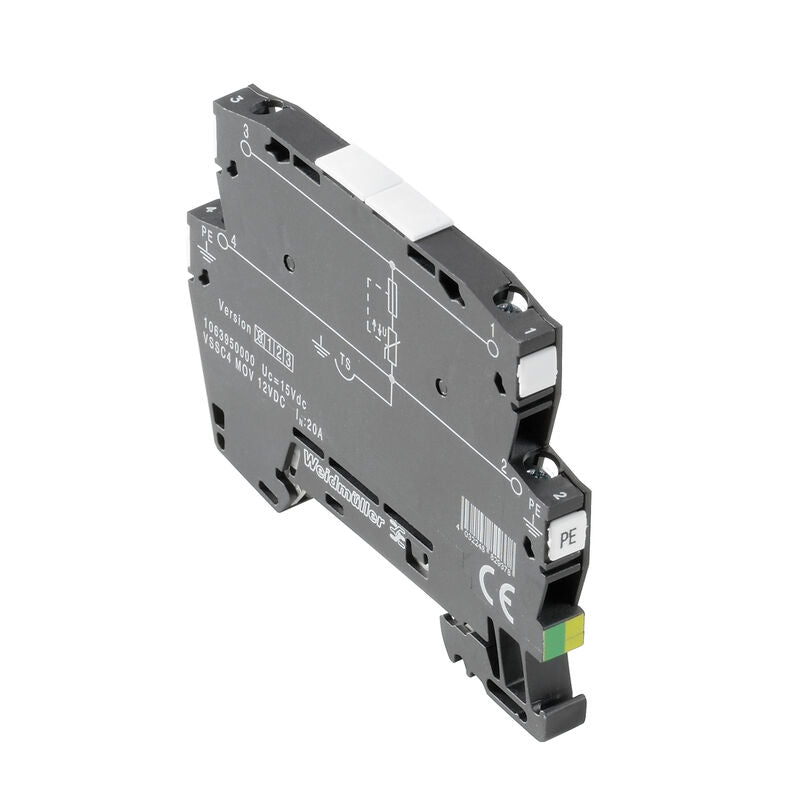

The Weidmuller 1063960000 is a surge protection device (SPD) designed for instrumentation, control, and measurement applications. This feed-through terminal, 6.2 mm wide, features a varistor arrester between the signal line connection and the TS 35 mounting rail potential. It protects signals up to 32A.

  • Surge protection for instrumentation and control
  • Surge protection for measurement and control
  • Feed-through terminal, 6.2 mm wide with varistor arrester between the signal line connection and the mounting rail potential, TS 35 contact base.

Product Highlights

Provides reliable surge protection for sensitive electronics, ensuring smooth and efficient system operation.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1063960000
  • Country of Origin: CN
Technical Specifications
Version
Surge protection for instrumentation and control, Surge protection for measurement and control
Order No.
1063960000
Type
VSSC4 MOV 24VAC/DC
GTIN (EAN)
4032248829385
Depth
58.5 mm
Depth (inches)
2.303 inch
Height
76 mm
Height (inches)
2.992 inch
Width
6.2 mm
Width (inches)
0.244 inch
Net weight
27.8 g
Storage temperature
-40 °C...80 °C
Operating temperature
-40 °C...70 °C
Humidity
5...96 %
SIL in compliance with IEC 61508
3
MTTF
4,391 a
SFF
100 %
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Certificate No. (UL)
E311081
Gas group C
IIB
Gas group D
IIA
Gas groups A, B
IIC
Input voltage, max. U i
42 V
Input-current, max. I I
500 mA
Internal capacity, max. C I
5 nF
Internal inductance, max. L I
0 µH
Colour
black
Design
Terminal
Isolating function
No
Mounting rail
TS 35
Optical function display
No
Protection degree
IP20
Segment
Measurement - Monitoring - Setting
UL 94 flammability rating
V-0
Pollution severity
2
Surge voltage category
III
Capacitance
4.8 nF
Discharge current Imax (8/20µs) wire-PE
1 kA
Discharge current In (8/20µs) wire-PE
0.5 kA
Discharge current, max. (8/20 µs)
1 kA
Max. continuous voltage, Uc (AC)
30 V
Max. continuous voltage, Uc (DC)
42 V
Number of poles
1
Overload - failure mode
Mode 1
Rated current IN
20 A
Rated load current IL
20 A
Rated voltage (AC)
24 V
Rated voltage (DC)
34 V
Requirements category acc. to IEC 61643-21
C1
Standards
IEC 61643-21
Surge current-carrying capacity C1
0.25 kA 8/20 µs 0.5 kV 1.2/50 µs
Surge current-carrying capacity C2
1 kA 8/20 µs
Voltage type
AC/DC
Volume resistance
<0.1 Ω
Stripping length
10 mm
Type of connection
Screw connection
Tightening torque, min.
0.5 Nm
Tightening torque, max.
0.8 Nm
Clamping range, min.
0.5 mm²
Clamping range, max.
4 mm²
Wire cross-section, solid, min.
0.5 mm²
Wire cross-section, solid, max.
6 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
4 mm²
Connection cross-section, stranded, min.
0.5 mm²
Connection cross-section, stranded, max.
4 mm²
ETIM 8.0
EC000943
ETIM 9.0
EC000943
ETIM 10.0
EC000943
ECLASS 14.0
27-17-15-01
ECLASS 15.0
27-17-15-01
Category
Circuit Protection
Transient Voltage Suppressors (TVS)
Surge Protection Devices (SPDs)
Voltage - Continuous Operating (Max) (MCOV)
30VAC, 42VDC
Manufacturer
Weidmüller
Current - Discharge (Nom) (8/20µS)
500 A
Series
VSSC
Current - Discharge (Max) (8/20µS)
1 kA
Packaging
Bulk
Voltage - Protection Level (VP) (2416)
150 V
Part Status
Active
Approval Agency
CE, CSA, EX, OVE, UL
Form
Base + Module
RoHS
Yes
HTS
85363010
COO
CN
ECCN
EAR99
Component
Surge Protection For Instrumentation And Control
