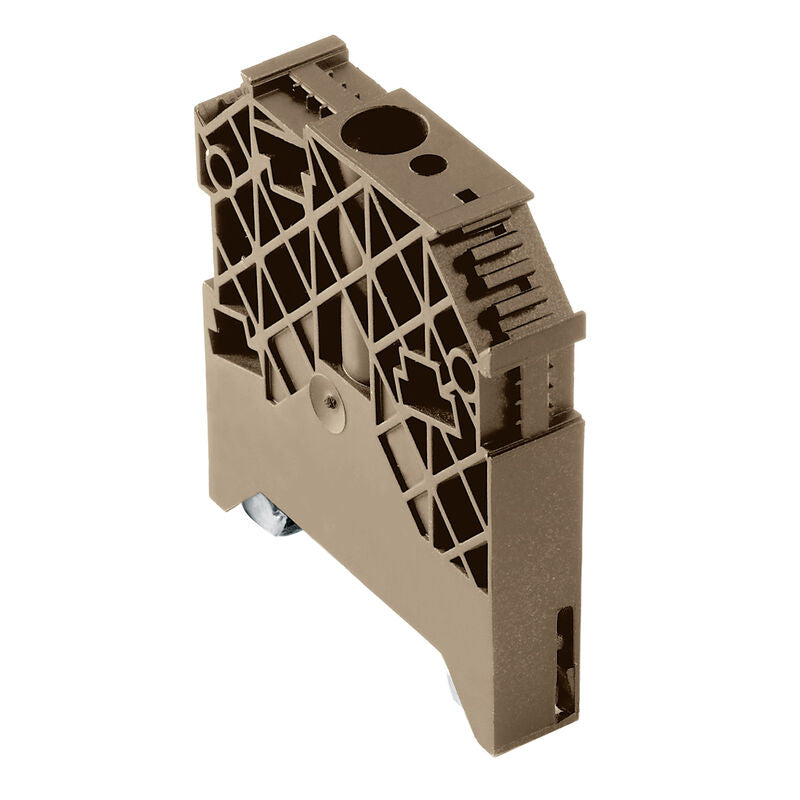

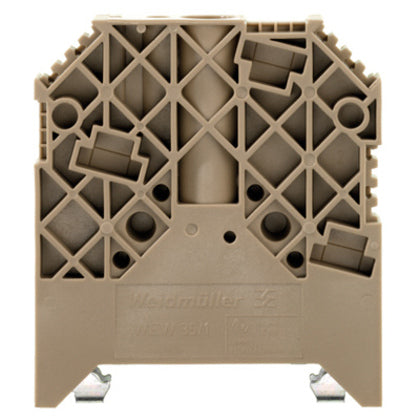

Weidmuller 1059000000 WEW 35/1 WM BG

Product Description

The Weidmuller 1059000000 WEW 35/1 WM BG is an end bracket designed for use with W Series terminal blocks. It is made of Wemid material and is dark beige in color. The end bracket is designed for mounting on a TS 35 DIN rail. It provides secure screw fixing and direct mounting.

• End bracket for terminal blocks
• Made of Wemid material
• Suitable for TS 35 DIN rail mounting

Product Highlights

This end bracket provides secure mounting for terminal blocks on a DIN rail, ensuring stable and organized connections.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1059000000

Technical Specifications

• Manufacturer: Weidmuller
• WES Product code: 2827092590
• Order No.: 1059000000
• Type: WEW 35/1
• GTIN (EAN): 4008190172282
• Depth: 62.5 mm
• Depth (inches): 2.461 inch
• Height: 56 mm
• Height (inches): 2.205 inch
• Width: 12 mm
• Width (inches): 0.472 inch
• Net weight: 36.3 g
• Ambient temperature: -5 \t0C\t40 \t0C
• Continuous operating temp., min.: -50 \t0C
• Continuous operating temp., max.: 100 \t0C
• Basic material: Wemid
• UL 94 flammability rating: V-2
• Mounting rail: TS 35
• Installation advice: Direct mounting
• Locking: for screw fixing
• Type of mounting: when screwed in
• Tightening torque, max.: 2.4 Nm
• Tightening torque, min.: 1.2 Nm
• TS 35 offset: 28 mm
• ETIM 8.0: EC001041
• ETIM 9.0: EC001041
• ETIM 10.0: EC001041
• ECLASS 14.0: 27-25-03-02
• ECLASS 15.0: 27-25-03-02
• Category: Connectors, Interconnects
• Terminal Blocks: Terminal Block Accessories
• Accessories: Accessories
• Part Status: Active
• For Use With/Related Products: W Series
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 8538.90.8180
• REACH Status: REACH Unaffected
• Mounting: DIN Rail
