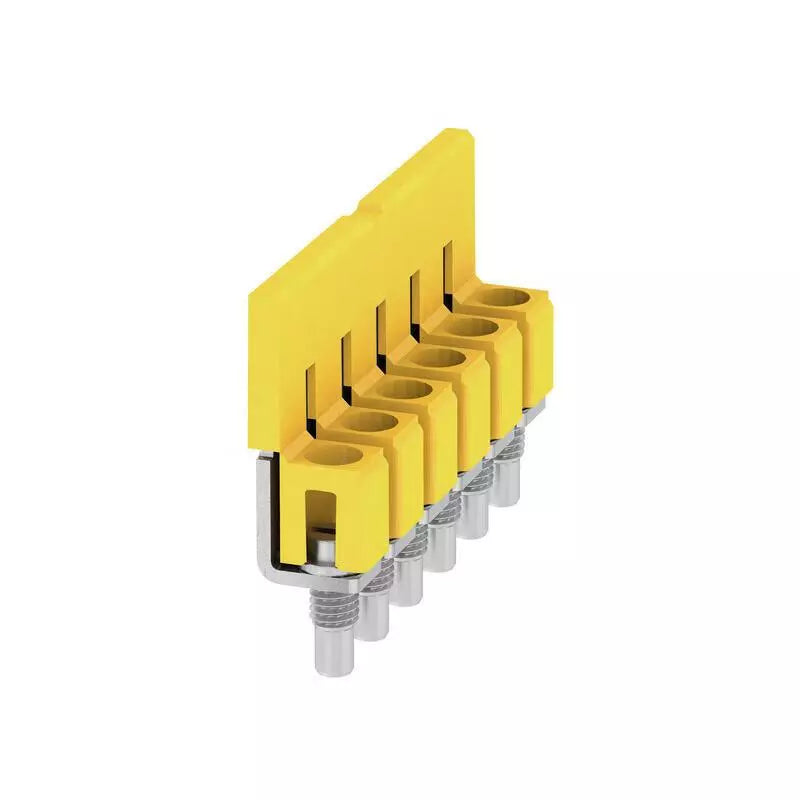

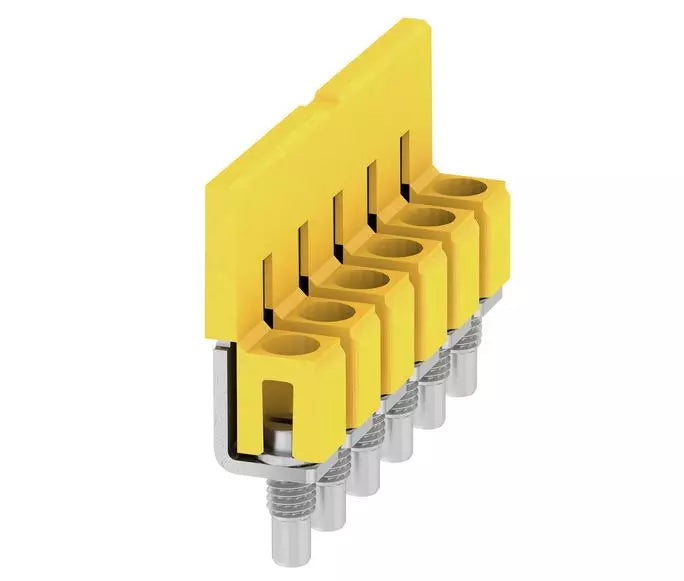

Weidmuller 1057160000 wqv 4/6 cross-connector 6 poles

Product Description

The Weidmuller 1057160000 WQV 4/6 is a cross-connector designed for terminal blocks. This screw-in jumper features 6 poles and a 6.10 mm pitch. It is rated for 41A and 400V. Constructed from PA 66 material with UL 94 V-0 flammability rating.

• 6-pole cross-connector
• Rated for 41A and 400V
• Screw-in type for secure connection

Product Highlights

The Weidmuller WQV 4/6 cross-connector provides a reliable solution for connecting terminal blocks in various applications.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1057160000
• Country of Origin: United States

Technical Specifications

• Version: Cross-connector (terminal), when screwed in, yellow, 41 A, Number of poles: 6, Pitch in mm (P): 6.10, Insulated: Yes, Width: 7.6 mm
• Order No.: 1057160000
• Type: WQV 4/6
• GTIN (EAN): 4008190172008
• Depth: 18 mm
• Depth (inches): 0.709 inch
• Height: 35 mm
• Height (inches): 1.378 inch
• Width: 7.6 mm
• Width (inches): 0.299 inch
• Net weight: 7.2 g
• Storage temperature: -25 00b0C...55 00b0C
• Ambient temperature: -60 00b0C 202685 00b0C
• Continuous operating temp., min.: -60 00b0C
• Continuous operating temp., max.: 130 00b0C
• Basic material: PA 66
• UL 94 flammability rating: V-0
• Explosion-tested version: No
• Type of fixing: when screwed in
• Pitch: 6.1 mm
• Number of poles: 6
• Rated voltage: 400 V
• Nominal current: 41 A
• Category: Terminal Accessories
• Series: W
• Style: Screw In
• For Use With/Related Products: W Series
• Part Status: Active
• Model: WQV 4/6
• Brand: WEIDMULLER
• Material: PA 66
• Mount Type: Direct mounting
• Number of Cross Connected Terminal: 6
• Width (cm): 0.76 cm
• Height (cm): 3.5 cm
