Weidmuller 1053260000 wqv 16/2

Product Description

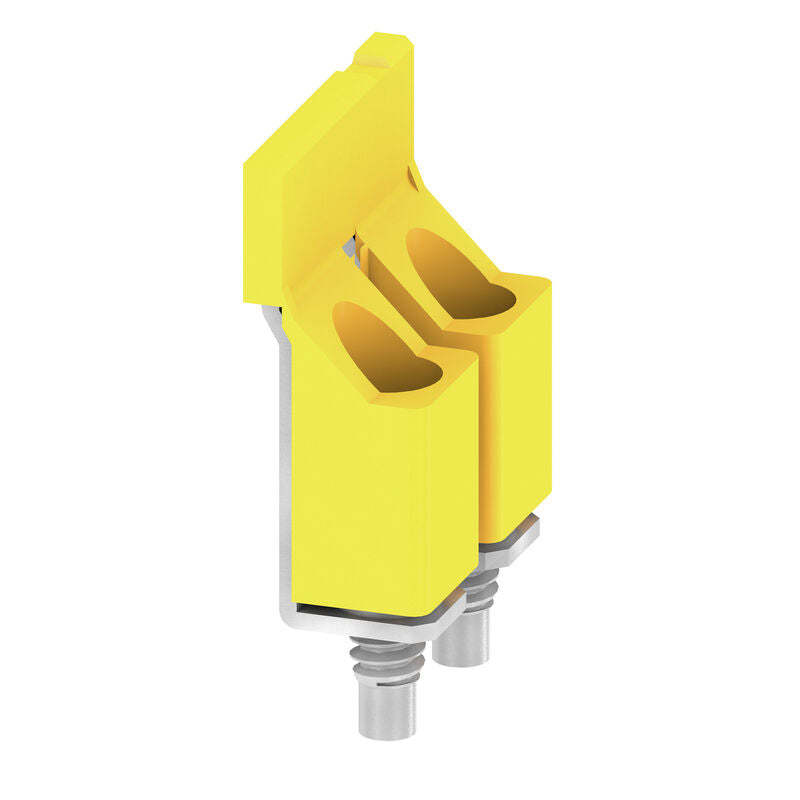

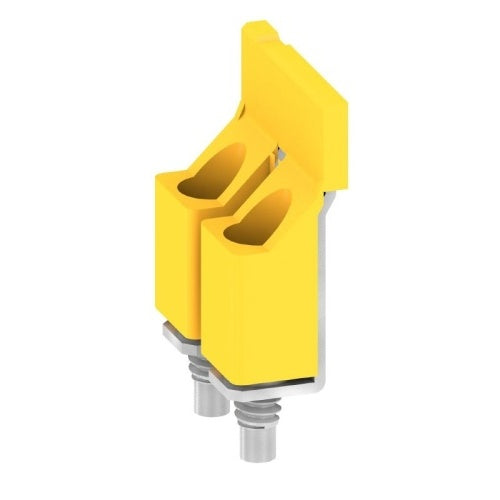

The Weidmuller 1053260000 WQV 16/2 is a cross-connector terminal designed for potential distribution to adjoining terminal blocks. This screw-in terminal features 2 poles with a 11.90 mm pitch and is insulated for safety. It has a width of 10.4 mm and a nominal current of 101 A.

• Screw-in type cross-connector
• Insulated with a yellow color
• Suitable for W Series terminal blocks

Product Highlights

This cross-connector simplifies potential distribution, reduces wiring effort, and ensures contact reliability in terminal blocks.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1053260000

Technical Specifications

• Version: For the terminals
• Order No.: 1053260000
• Type: WQV 16/2
• GTIN (EAN): 4008190036553
• Depth: 27 mm
• Depth (inches): 1.063 inch
• Height: 21.4 mm
• Height (inches): 0.843 inch
• Width: 10.4 mm
• Width (inches): 0.409 inch
• Net weight: 7.36 g
• Storage temperature: -25 00b0C...55 00b0C
• Ambient temperature: -60 00b0C 202685 00b0C
• Continuous operating temp., min.: -60 00b0C
• Continuous operating temp., max.: 130 00b0C
• RoHS Compliance Status: ROHS3 Compliant
• REACH SVHC: No SVHC above 0.1 wt%
• Basic material: PA 66
• Colour: Yellow
• UL 94 flammability rating: V-0
• Explosion-tested version: No
• Installation advice: Direct mounting
• Type of fixing: when screwed in
• Pitch in mm (P): 11.9 mm
• Number of poles: 2
• Rated voltage: 400 V
• Nominal current: 101 A
• Category: Connectors, Interconnects
• Terminal Blocks: Terminal Block Accessories
• Terminal Block Jumpers: Terminal Block Jumpers
• Manufacturer: Weidm 00fcller
• Pitch: 0.469" (11.90mm)
• Series: W
• Style: Screw In
• Packaging: Bulk
• For Use With/Related Products: W Series
• Part Status: Active
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 8536.90.4000
• REACH Status: REACH Unaffected
• Component: Cross-Connector (Terminal)
