Weidmuller 1041610000 WDK 2.5N V

Product Description

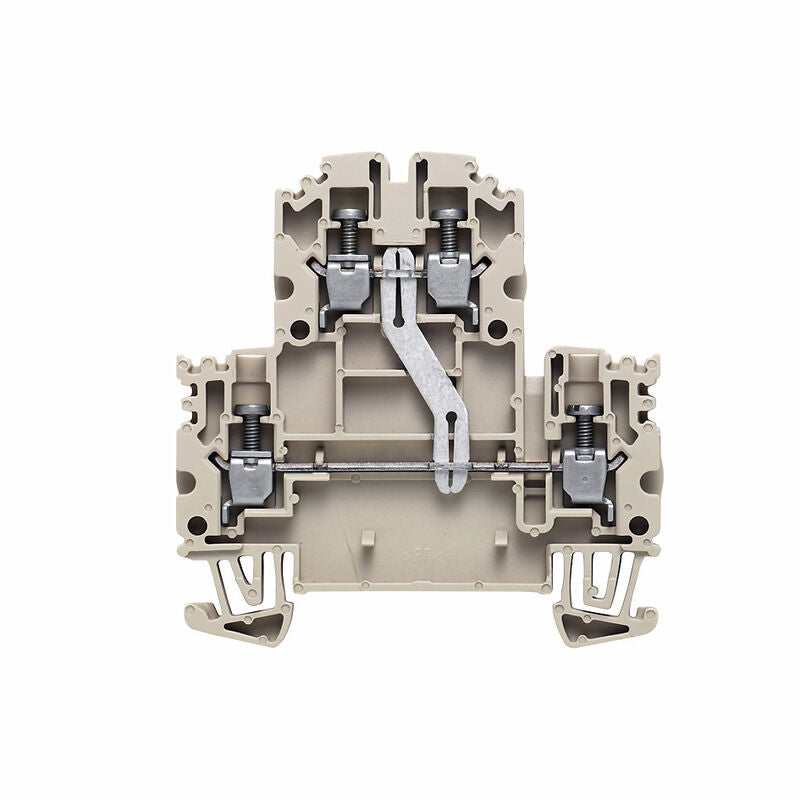

The Weidmuller 1041610000 WDK 2.5N V is a multi-tier modular terminal block with screw connections. It accommodates wire sizes from 26 AWG to 12 AWG (2.5 mm"). This terminal block is rated for 24 A and 800 V, featuring 4 connections and 2 levels. It is designed for TS 35 mounting rails.

• Screw connection type
• Wire connection cross section AWG: AWG 30 to AWG 12
• Rated voltage: 800 V

Product Highlights

The Weidmuller WDK 2.5N V is ideal for power, signal, and data feed-through in electrical engineering and panel building.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1041610000
• Country of Origin: China

Technical Specifications

• Order No.: 1041610000
• Type: Feed Through
• GTIN (EAN): 4032248138746
• Version: Screw connection
• Depth: 62 mm
• Depth (inches): 2.441 inch
• Depth including DIN rail: 62.45 mm
• Height: 61 mm
• Height (inches): 2.402 inch
• Width: 5.1 mm
• Width (inches): 0.201 inch
• Net weight: 12.284 g
• Storage temperature: -25 4500.10000000000000001562573986118307316016717899322509765625
