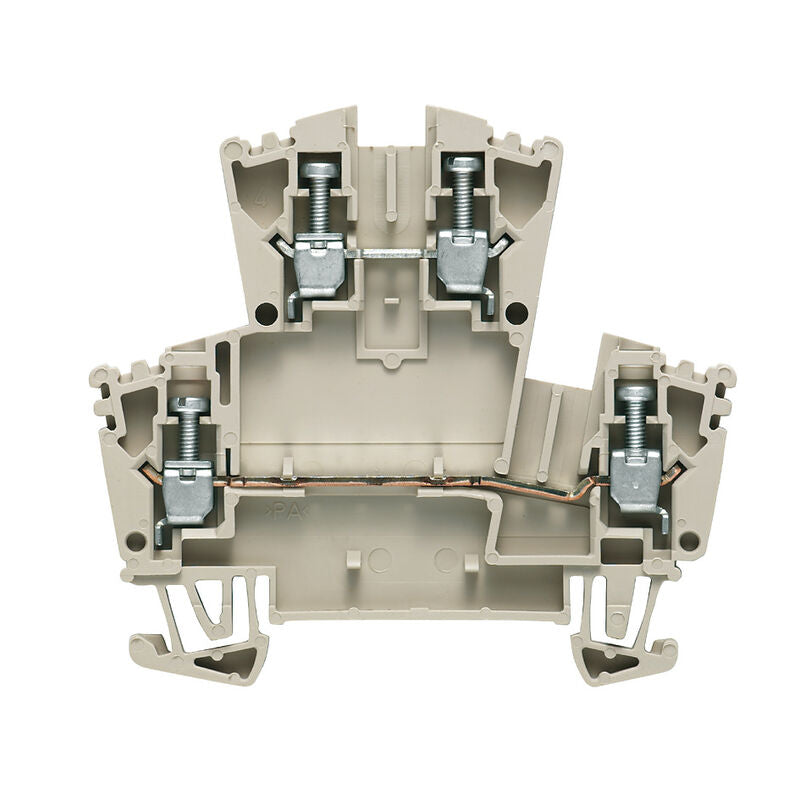

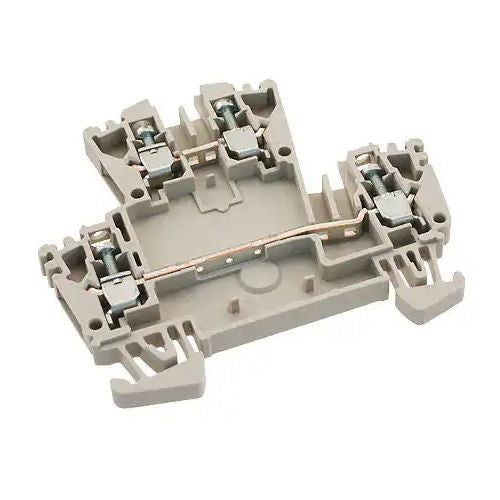

Weidmuller 1041100000 Feed-Through Terminal Block 24 A

Product Description

The Weidmuller 1041100000 is a feed-through terminal block with screw connection for plug in cross-connector and 2.5mm wire cross section area. Features a M2.5 clamping screw and 10mm stripping length. It accepts 26AWG minimum to 12AWG maximum wire size. Hardened steel ensures mechanical strength and high-quality tinned copper for optimum conductivity.

• Simple operation - Can be clipped to or removed from the terminal rail in either direction
• Thermally stable up to 120°C
• Phosphorous- or halogen-free

Product Highlights

The Weidmuller feed-through terminal block offers solutions for all standard electrical functions and brings considerable time savings compared to all other screw terminals on the market.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1041100000

Technical Specifications

• Amperage Rating: 24 A
• Terminal Type: Feed-Through
• Voltage Rating: 400 V
• Material: Wemid
• Connection Type: Screw
• Series: W Series
• Vendor SKU: 1041100000
• Manufacturer: Weidmuller
• Version: Screw connection
• Type: WDK 2.5 ZQV
• GTIN (EAN): 4008190972332
• UL 94 flammability rating: V-0
• Certificate No. (ATEX): DEMKO15ATEX1346U
• Certificate No. (IECEX): IECEXULD15.0003U
• Max. voltage (ATEX): 275 V
• Current (ATEX): 21 A
• Wire cross section max. (ATEX): 4 mm
• Max. voltage (IECEX): 275 V
• Current (IECEX): 21 A
• Wire cross section max. (IECEX): 4 mm
• Marking EN 60079-7: Ex eb II C Gb
• Ex 2014/34/EU label: II 2 G D
• Number of potentials: 2
• Number of levels: 2
• Number of clamping points per level: 2
• Number of potentials per tier: 1
• Levels cross-connected internally: No
• PE connection: No
• Mounting rail: TS 35
• N-function: No
• PE function: No
• PEN function: No
• Explosion-tested version: Yes
• Number of similar terminals: 1
• Open sides: right
• Type of mounting: Snap-on
• Blade size: 0.6 x 3.5 mm
• Clamping range, max.: 4 mm
• Clamping range, min.: 0.05 mm
• Clamping screw: M 2.5
• Connection cross-section, finely stranded, min.: 0.05 mm
• Connection cross-section, stranded, max.: 4 mm
• Connection cross-section, stranded, min.: 0.05 mm
• Connection direction: on side
• Gauge to IEC 60947-1: A3
• Number of connections: 4
• Stripping length: 10 mm
• Tightening torque, max.: 0.6 Nm
• Tightening torque, min.: 0.4 Nm
• Torque level with DMS electric screwdriver: 1
• Type of connection: Screw connection
• Type of connection 2: Screw connection
• Wire connection cross section AWG, max.: AWG 12
• Wire connection cross section AWG, min.: AWG 30
• Wire connection cross section, finely stranded, max.: 4 mm
• Wire connection cross section, finely stranded, min.: 0.05 mm
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 2.5 mm
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.05 mm
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 2.5 mm
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.05 mm
• Wire connection cross-section, solid core, max.: 4 mm
• Wire connection cross-section, solid core, min.: 0.05 mm
• Certificate No. (CSA): 12400-391
• Current size C (CSA): 25 A
• Voltage size C (CSA): 300 V
• Wire cross section max. (CSA): 12 AWG
• Wire cross section min. (CSA): 26 AWG
• Standards: IEC 60947-7-1
• Rated cross-section: 2.5 mm
• Rated voltage: 400 V
• Rated DC voltage: 400 V
• Nominal current: 24 A
• Current at maximum wires: 32 A
• Volume resistance according to IEC 60947-7-x: 1.33 mΩ
• Rated impulse withstand voltage: 6 kV
• Power loss in accordance with IEC 60947-7-x: 0.77 W
• Pollution severity: 3
• Certificate No. (UR): E60693
• Conductor size Factory wiring max. (UR): 12 AWG
• Conductor size Factory wiring min. (UR): 22 AWG
• Conductor size Field wiring max. (UR): 12 AWG
• Conductor size Field wiring min. (UR): 22 AWG
• Current size B (UR): 20 A
• Current size C (UR): 20 A
• Voltage size B (UR): 300 V
• Voltage size C (UR): 300 V
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• ETIM 10.0: EC000897
• ECLASS 14.0: 27-25-01-02
• ECLASS 15.0: 27-25-01-02
• Wire Size AWG Min: 30AWG
• Wire Size AWG Max: 12AWG
• Conductor Area CSA: 4mm
• Wire Connection Method: Screw
• Rated Current: 24A
• Rated Voltage: 400V
• Product Range: W Series
• Current - IEC: 24 A
• Voltage - IEC: 400V
• Current - UL: 20 A
• Voltage - UL: 300V
• Wire Gauge or Range - AWG: 12-30 AWG
• Wire Gauge or Range - mm: 0.5-4mm
• Number of Positions: 4
• Number of Levels: 2
• Material - Insulation: Thermoplastic, Wemid
• Terminal - Width: 5.1mm
• Material Flammability Rating: UL94 V-0
• Termination Style: Screw
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 8536.69.8000
• REACH Status: REACH Unaffected
• Manufacturer Name: Weidmuller
