Weidmuller 1040400000 WDU 35N

Product Description

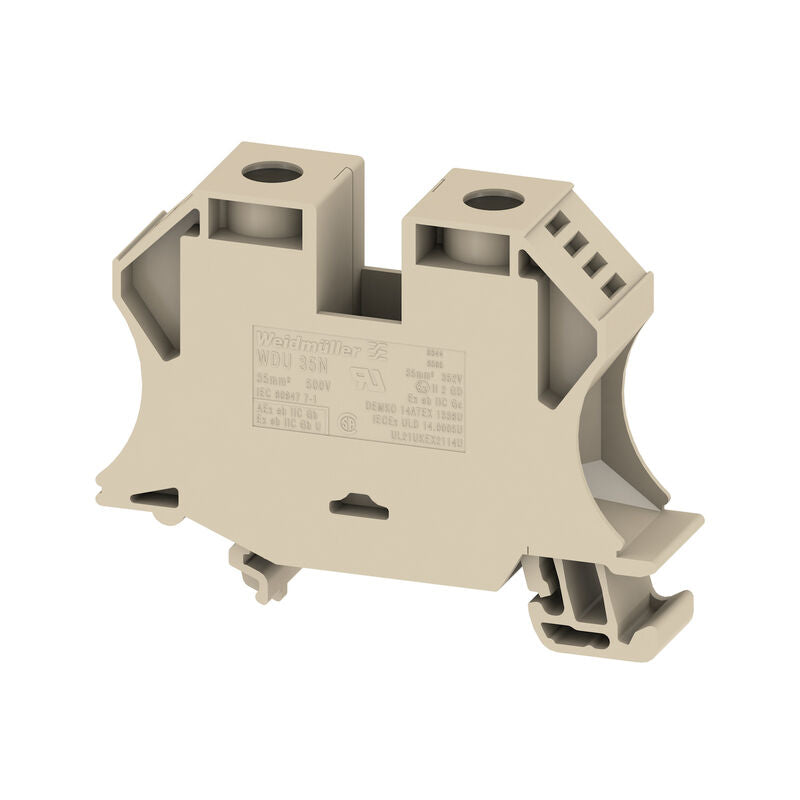

The Weidmuller 1040400000 WDU 35N is a feed-through terminal block with screw connections. It is dark beige and designed for 35 mm² wires, supporting 125 A at 500 V with two connections. This terminal block is suitable for DIN rail mounting and ensures secure and reliable electrical connections in various applications.

• Screw connection for secure wiring
• Supports 35 mm² wires, 125 A, and 500 V
• Suitable for DIN rail mounting

Product Highlights

Reliable feed-through terminal block for secure and efficient electrical connections.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1040400000

Technical Specifications

• Version: Screw connection
• Order No.: 1040400000
• Type: WDU 35N
• GTIN (EAN): 4008190351816
• Depth: 50.5 mm
• Depth (inches): 1.988 inch
• Depth including DIN rail: 51 mm
• Height: 66 mm
• Height (inches): 2.598 inch
• Width: 16 mm
• Width (inches): 0.63 inch
• Net weight: 48.104 g
• Storage temperature: -25 °C...55 °C
• Ambient temperature: -60 °C 85 °C
• Continuous operating temp., min.: -60 °C
• Continuous operating temp., max.: 130 °C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Basic material: Wemid
• Colour: dark beige
• UL 94 flammability rating: V-0
• Certificate No. (ATEX): DEMKO14ATEX1338U
• Certificate No. (IECEX): IECEXULD14.0005U
• Max. voltage (ATEX): 352 V
• Current (ATEX): 110 A
• Wire cross section max. (ATEX): 35 mm²
• Max. voltage (IECEX): 352 V
• Current (IECEX): 110 A
• Wire cross section max. (IECEX): 35 mm²
• Marking EN 60079-7: Ex eb II C Gb
• Ex 2014/34/EU label: II 2 G D
• for screwable cross-connection: in closed state
• End cover plate required: No
• Number of potentials: 1
• Number of levels: 1
• Number of clamping points per level: 2
• Number of potentials per tier: 1
• Levels cross-connected internally: No
• PE connection: No
• Mounting rail: TS 35
• N-function: No
• PE function: No
• PEN function: Yes
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.: 6 mm²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.: 2.5 mm²
• Wire connection cross section, finely stranded, two clampable wires, min.: 2.5 mm²
• Wire cross-section, finely stranded, two clampable wires, max.: 6 mm²
• Explosion-tested version: No
• Number of similar terminals: 1
• Open sides: closed
• Type of mounting: Snap-on
• Connection type, additional connection: Screw connection
• Blade size: 6.5 x 1.2 mm
• Clamping range, max.: 50 mm²
• Clamping range, min.: 2.5 mm²
• Clamping screw: M 6
• Connection cross-section, finely stranded, min.: 2.5 mm²
• Connection cross-section, stranded, max.: 50 mm²
• Connection cross-section, stranded, min.: 2.5 mm²
• Connection direction: on side
• Gauge to IEC 60947-1: B8
• Number of connections: 2
• Stripping length: 18 mm
• Tightening torque, max.: 5 Nm
• Tightening torque, min.: 4 Nm
• Type of connection: Screw connection
• Wire connection cross section AWG, max.: AWG 10
• Wire connection cross section AWG, min.: AWG 12
• Wire connection cross section, finely stranded, max.: 35 mm²
• Wire connection cross section, finely stranded, min.: 2.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 35 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 2.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 35 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 2.5 mm²
• Wire connection cross-section, solid core, max.: 16 mm²
• Wire connection cross-section, solid core, min.: 2.5 mm²
• Certificate No. (CSA): 12400-388
• Current size B (CSA): 120 A
• Current size D (CSA): 10 A
• Voltage size B (CSA): 300 V
• Voltage size D (CSA): 300 V
• Wire cross section max. (CSA): 2 AWG
• Wire cross section min. (CSA): 12 AWG
• Standards: IEC 60947-7-1
• Rated cross-section: 35 mm²
• Rated voltage: 500 V
• Rated DC voltage: 500 V
• Nominal current: 125 A
• Current at maximum wires: 150 A
• Volume resistance according to IEC 60947-7-x: 1.33 mΩ
• Rated impulse withstand voltage: 6 kV
• Power loss in accordance with IEC 60947-7-x: 4 W
• Pollution severity: 3
• Surge voltage category: III
• Certificate No. (UR): E60693
• Conductor size Factory wiring max. (UR): 0 AWG
• Conductor size Factory wiring min. (UR): 12 AWG
• Conductor size Field wiring max. (UR): 0 AWG
• Conductor size Field wiring min. (UR): 12 AWG
• Current size C (UR): 150 A
• Voltage size C (UR): 1000 V
• Current - IEC: 125 A
• Manufacturer: Weidmüller
• Voltage - IEC: 500V
• Series: W
• Current - UL: 150 A
• Part Status: Active
• Voltage - UL: 1000V
• Wire Gauge or Range - AWG: 1-12 AWG
• Wire Gauge or Range - mm²: 2.5-35mm²
• Number of Positions: 2
• Material - Insulation: Thermoplastic, Wemid
• Terminal - Width: 16.0mm
• Material Flammability Rating: UL94 V-0
• Termination Style: Screw
• Volts AC: 500
• Amps: 125
• Mounting: DIN Rail
• Poles: 1
• Volts DC: 500
