Weidmuller 1031400000 WDU 1.5/ZZ

Product Description

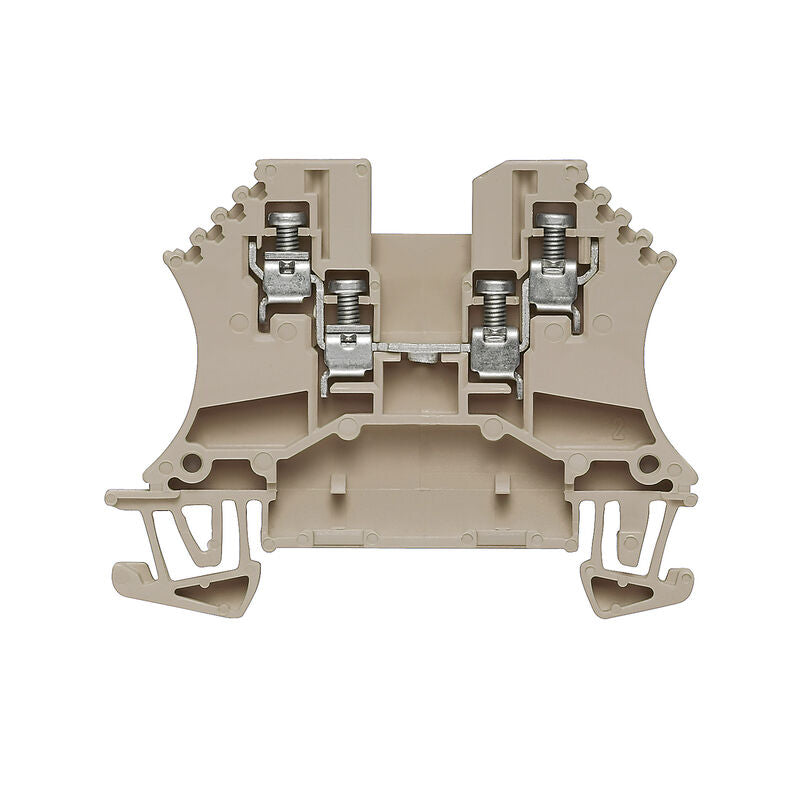

The Weidmuller 1031400000 is a feed-through terminal block with screw connection. This dark beige terminal block has a rated voltage of 800 V and a nominal current of 17.5 A. It features 4 connections and is designed for TS35 mounting rail with snap-on type mounting.

• Screw connection
• Rated at 800 V and 17.5 A
• 4 connections

Product Highlights

The Weidmuller 1031400000 terminal block ensures secure and reliable connections for industrial applications.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1031400000
• Country of Origin: China

Technical Specifications

• Version: Screw connection
• Order No.: 1031400000
• Type: WDU 1.5/ZZ
• GTIN (EAN): 4008190148546
• Depth: 46.5 mm
• Depth (inches): 1.831 inch
• Height: 60 mm
• Height (inches): 2.362 inch
• Width: 5.1 mm
• Width (inches): 0.201 inch
• Net weight: 8.09 g
• Storage temperature: -25 °C...55 °C
• Ambient temperature: -60 °C 85 °C
• Continuous operating temp., min.: -60 °C
• Continuous operating temp., max.: 130 °C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Basic material: Wemid
• Colour: dark beige
• UL 94 flammability rating: V-0
• Certificate No. (ATEX): DEMKO14ATEX1338U
• Certificate No. (IECEX): IECEXULD14.0005U
• Max. voltage (ATEX): 550 V
• Current (ATEX): 17.5 A
• Wire cross section max. (ATEX): 2.5 mm²
• Max. voltage (IECEX): 550 V
• Current (IECEX): 17.5 A
• Wire cross section max. (IECEX): 2.5 mm²
• Marking EN 60079-7: Ex eb II C Gb
• Ex 2014/34/EU label: II 2 G D
• Twin connection: for plug-in cross-connector
• End cover plate required: Yes
• Number of potentials: 1
• Number of levels: 1
• Number of clamping points per level: 4
• Number of potentials per tier: 1
• Levels cross-connected internally: No
• PE connection: No
• Mounting rail: TS 35
• N-function: No
• PE function: No
• PEN function: No
• Explosion-tested version: Yes
• Number of similar terminals: 1
• Open sides: right
• Type of mounting: Snap-on
• Connection type, additional connection: Screw connection
• Blade size: 0.6 x 3.5 mm
• Clamping screw: M 2.5
• Connection direction: on side
• Gauge to IEC 60947-1: A1
• Number of connections: 4
• Stripping length: 7 mm
• Tightening torque, max.: 0.6 Nm
• Tightening torque, min.: 0.4 Nm
• Torque level with DMS electric screwdriver: 1
• Type of connection: Screw connection
• Wire connection cross section AWG, max.: AWG 14
• Wire connection cross section AWG, min.: AWG 26
• Rated voltage: 800 V
• Rated DC voltage: 800 V
• Nominal current: 17.5 A
• Standards: IEC 60947-7-1
• Rated impulse withstand voltage: 8 kV
• Pollution severity: 3
• Conductor size Factory wiring max. (UR): 12 AWG
• Conductor size Factory wiring min. (UR): 26 AWG
• Conductor size Field wiring max. (UR): 12 AWG
• Conductor size Field wiring min. (UR): 22 AWG
• Current size C (UR): 25 A
• Voltage size C (UR): 300 V
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• ETIM 10.0: EC000897
• ECLASS 14.0: 27-25-01-01
• ECLASS 15.0: 27-25-01-01
• Rated cross-section: 1.5 mm²
• Current at maximum wires: 23 A
• Volume resistance according to IEC 60947-7-x: 1.83 mΩ
• Power loss in accordance with IEC 60947-7-x: 0.56 W
• Certificate No. (UR): E60693
• Certificate No. (CSA): 200039-1057876
• Current size C (CSA): 10 A
• Voltage size C (CSA): 300 V
• Wire cross section max. (CSA): 12 AWG
• Wire cross section min. (CSA): 26 AWG
• No. of Positions: 4Positions
• Wire Size AWG Min: 22AWG
• Wire Size AWG Max: 12AWG
• Conductor Area CSA: 1.5mm²
• Wire Connection Method: Screw
• Rated Current: 17.5A
• Rated Voltage: 800V
• SVHC: No SVHC (23-Jan-2024)
