Description

Product Description

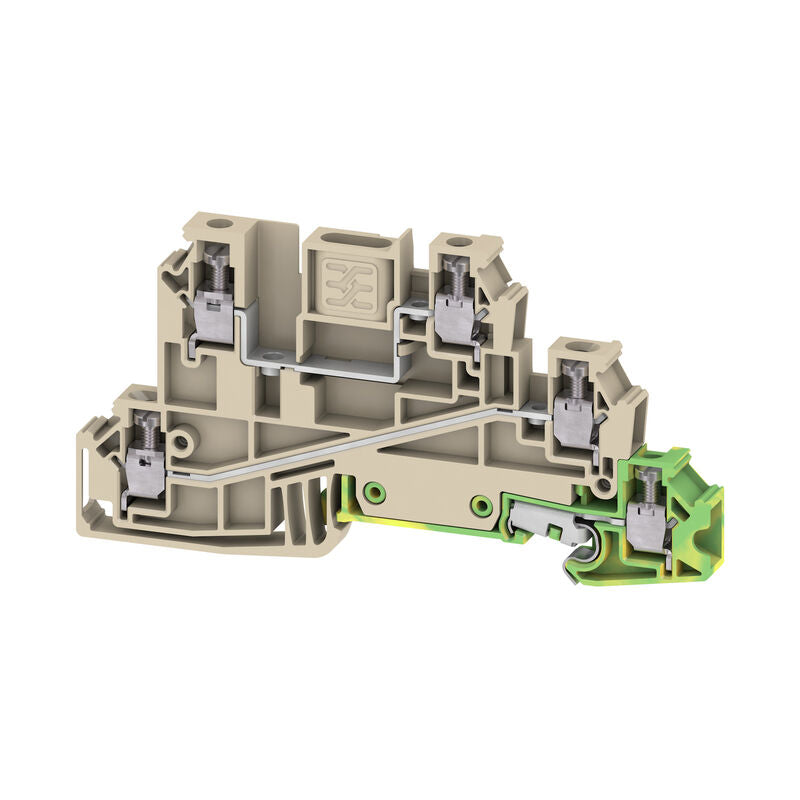

The Weidmuller 1030200000 WDL 2.5/L/L/PE is a multi level installation terminal block with screw connections. This dark beige terminal block has 5 connections and 3 levels. It is designed for 2.5 mm² wires, with a rated current of 24 A and a rated voltage of 400 V.

  • Screw connection
  • 5 connections
  • 3 levels

Product Highlights

Multi level installation terminal block with screw connections, dark beige, 2.5 mm², 24 A, 400 V, 5 connections, and 3 levels.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1030200000
Technical Specifications
Order No.
1030200000
Type
Feed Through (2), Isolated
GTIN (EAN)
4008190164508
Depth
48 mm
Depth (inches)
1.89 inch
Depth including DIN rail
49 mm
Height
90 mm
Height (inches)
3.543 inch
Width
6.1 mm
Width (inches)
0.24 inch
Net weight
17.898 g
Storage temperature
-25 00b0C...55 00b0C
Ambient temperature
-50 00b0C 202675 00b0C
Continuous operating temp., min.
-50 00b0C
Continuous operating temp., max.
120 00b0C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0
Screw connection
L, L and PE connection
for screwable cross-connection
One end without connector
End cover plate required
Yes
Number of potentials
3
Number of levels
3
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
Yes
Mounting rail
TS 35
N-function
No
PE function
Yes
PEN function
No
Explosion-tested version
No
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on
Blade size
0.6 x 3.5 mm
Connection specification
Screw connection
Cross-section for conductor connection:Type
solid, H05(07) V-U
min.
0.5 mm 00b2
max.
4 mm 00b2
nominal
2.5 mm 00b2
Stripping length
8 mm
Tightening torque
0.4 Nm
Clamping range, max.
4 mm 00b2
Clamping range, min.
0.13 mm 00b2
Clamping screw
M 2.5
Connection cross-section, stranded, max.
4 mm 00b2
Connection cross-section, stranded, min.
0.13 mm 00b2
Connection direction
on side
Gauge to IEC 60947-1
A3
Number of connections
5
Tightening torque, max.
0.6 Nm
Torque level with DMS electric screwdriver
1
Type of connection
Screw connection
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm 00b2
Wire connection cross section, finely stranded, min.
0.13 mm 00b2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2.5 mm 00b2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.13 mm 00b2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm 00b2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.13 mm 00b2
Wire connection cross-section, solid core, max.
4 mm 00b2
Wire connection cross-section, solid core, min.
0.13 mm 00b2
Certificate No. (CSA)
12400-296
Current size B (CSA)
10 A
Current size D (CSA)
10 A
Voltage size B (CSA)
300 V
Voltage size D (CSA)
300 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
26 AWG
Standards
IEC 60947-7-1 (-7-2)
Rated cross-section
2.5 mm 00b2
Rated voltage
400 V
Rated DC voltage
400 V
Nominal current
24 A
Current at maximum wires
32 A
Volume resistance according to IEC 60947-7-x
1.33 m 03a9
Rated impulse withstand voltage
4 kV
Power loss in accordance with IEC 60947-7-x
0.77 W
Rated voltage (L / L)
400 V
Rated voltage (L / N)
250 V
Rated voltage (L / PE)
250 V
Pollution severity
3
Surge voltage category
III
Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
12 AWG
Conductor size Factory wiring min. (UR)
26 AWG
Conductor size Field wiring max. (UR)
12 AWG
Conductor size Field wiring min. (UR)
22 AWG
Current size C (UR)
15 A
Voltage size C (UR)
300 V
Category
Connectors, Interconnects
Terminal Blocks
Din Rail, Channel
Current - IEC
24 A
Manufacturer
Weidm 00fcller
Voltage - IEC
400V
Series
W
Current - UL
15 A
Part Status
Active
Wire Gauge or Range - AWG
12-26 AWG
Wire Gauge or Range - mm 00b2
0.5-4mm 00b2
Number of Positions
5
Material - Insulation
Thermoplastic, Wemid
Terminal - Width
6.1mm
Material Flammability Rating
UL94 V-0
Termination Style
Screw
