Weidmuller 1029700000 WFF 300/AH

Brand: Weidmuller
SKU: 1029700000
Availability: In Stock

Ships same day if ordered by 12 pm
$75.50
$75.50
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

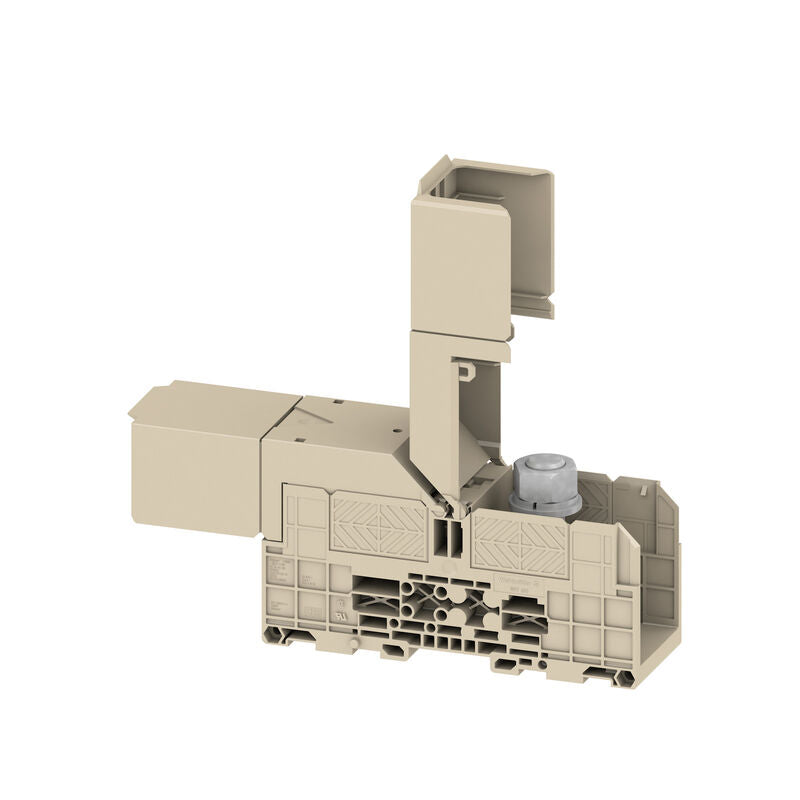

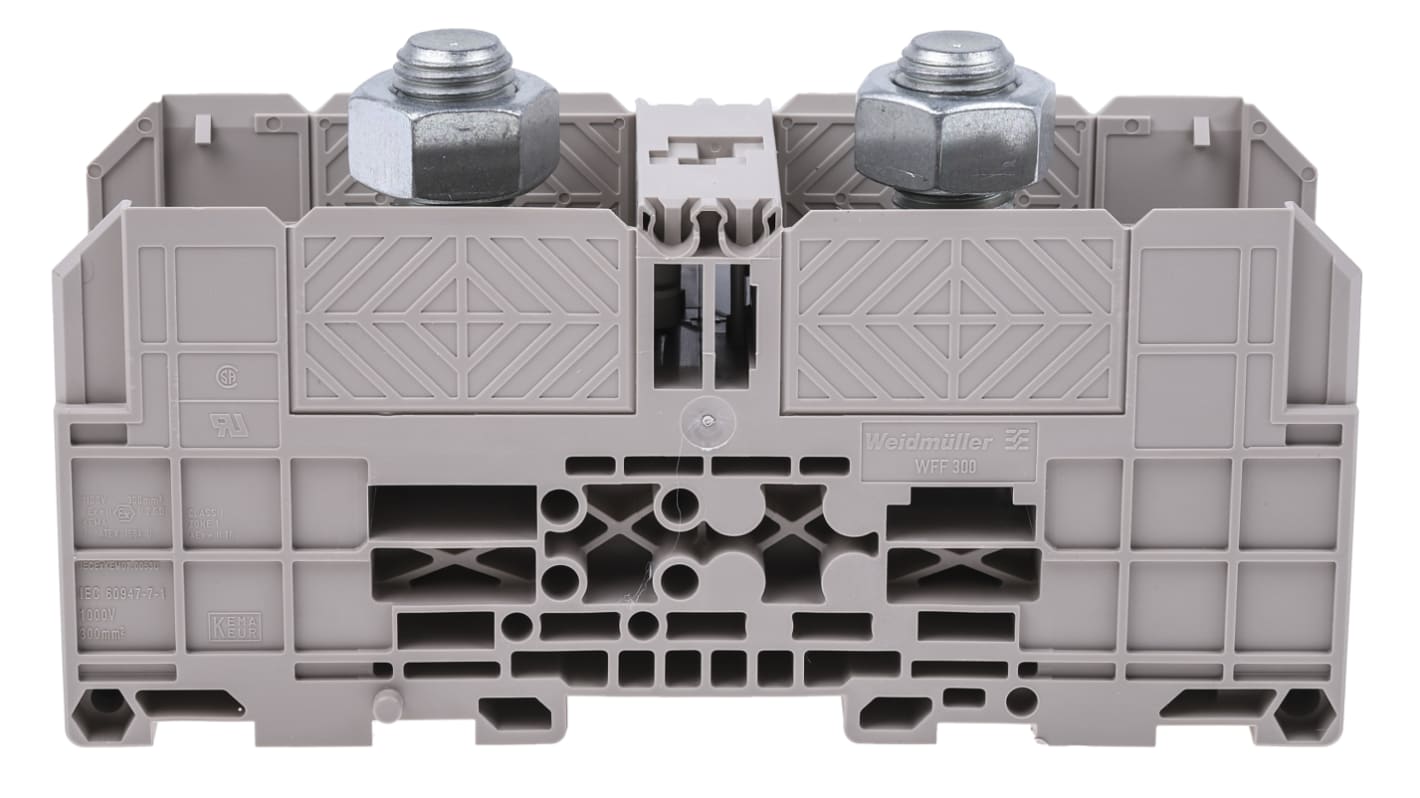

The Weidmuller 1029700000 WFF 300/AH is a bolt-type screw terminal designed as a feed-through terminal. This robust terminal block is suitable for harsh environments and DIN Rail mountable. It features Klippon® Connect with stud technology for secure connections in demanding applications.

  • Rated cross-section: 300 mm ²
  • Threaded stud connection
  • Operating temperature range: -50°C to 120°C

Product Highlights

The Weidmuller WFF 300/AH ensures reliable electrical connections in industrial settings with its durable construction and easy installation.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1029700000
  • Country of Origin: Germany
Technical Specifications
Version
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 300 mm ², Threaded stud connection
Order No.
1029700000
Type
WFF 300/AH
GTIN (EAN)
4008190088347
Depth
85.5 mm
Depth (inches)
3.366 inch
Depth including DIN rail
94 mm
Height
163 mm
Height (inches)
6.417 inch
Width
55 mm
Width (inches)
2.165 inch
Net weight
592.51 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C …40 °C
Minimum Operating Temperature
-50 °C
Maximum Operating Temperature
120 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
End cover plate required
No
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
Explosion-tested version
Yes
Number of similar terminals
1
Open sides
closed
Mounting Type
DIN Rail
2 x cable lugs DIN 46 234
25 to 240 mm ²
2 x cable lugs DIN 46 235
50...240 mm ²
Cable lug to DIN 46234
25...240 mm ²
Cable lug to DIN 46235
50...300 mm ²
Clamping range, max.
300 mm ²
Clamping range, min.
25 mm ²
Connection cross-section, finely stranded, min.
25 mm ²
Connection cross-section, stranded, max.
300 mm ²
Connection cross-section, stranded, min.
25 mm ²
Connection direction
on side
Number of connections
2
Stud size for spade connection
M 16
Tightening torque, max.
60 Nm
Tightening torque, min.
25 Nm
Type of connection
Threaded stud connection
Wire connection cross section AWG, min.
AWG 4
Wire connection cross section, finely stranded, max.
300 mm ²
Wire connection cross section, finely stranded, min.
25 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
25 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
25 mm ²
Wire connection cross-section, solid core, max.
300 mm ²
Wire connection cross-section, solid core, min.
25 mm ²
Certificate No. (CSA)
200039-1244019
Current size C (CSA)
510 A
Voltage size C (CSA)
600 V
Wire cross section max. (CSA)
600 kcmil
Wire cross section min. (CSA)
6 AWG
Standards
IEC 60947-7-1
Rated cross-section
300 mm ²
Rated voltage
1,000 V
Rated DC voltage
1,500 V
Nominal current
520 A
Current at maximum wires
520 A
Volume resistance according to IEC 60947-7-x
0.06 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
16.64 W
Pollution severity
3
Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
600 kcmil
Conductor size Factory wiring min. (UR)
6 AWG
Conductor size Field wiring max. (UR)
600 kcmil
Conductor size Field wiring min. (UR)
6 AWG
Current size C (UR)
500 A
Voltage size C (UR)
1000 V
Category
Connectors, Interconnects
Terminal Blocks
Specialized
Voltage - IEC
1 kV
Manufacturer
Weidmüller
Current - UL
500 A
Series
WFF
Voltage - UL
1 kV
Packaging
Bulk
Wire Gauge or Range - AWG
600MCM (kcmil)-6 AWG
Part Status
Active
Wire Gauge or Range - mm²
25-240mm²
Termination Style
Stud
Housing Color
Beige
Length
6.417" (163.00mm)
Number of Positions
2
Height (Max)
3.701" (94.00mm)
Material - Insulation
Thermoplastic, Wemid
Terminal - Width
55.0mm
Material Flammability Rating
UL94 V-0
Operating Temperature
-50°C ~ 120°C
Current - IEC
520 A
Housing Material
Nylon
Mount
Screw
Current
452 A
Current Rating
500 A
Number of Circuits
2
Number of Contacts
2
Number of Rows
2
Termination
Stud
Voltage
1 kV
Voltage Rating
600 V
Wire/Cable Gauge
600 AWG
Terminal Width
55 mm
Environmental Classification
Approvals
Flammability Rating
UL94 V-0
Lead Free
Lead Free
Radiation Hardening
No
Product Type
DIN Rail Terminal Block
Minimum Wire Size AWG
4AWG
Cable CSA
240, 25mm²
Maximum Wire Size AWG
450AWG
Pitch
55mm
Terminal Block Current
520A
Termination Type
Bolt
Hazardous Area Certification
No
Standards/Approvals
CE
Country of Origin
Germany
Wire connection cross section AWG, max.
600 kcmil
